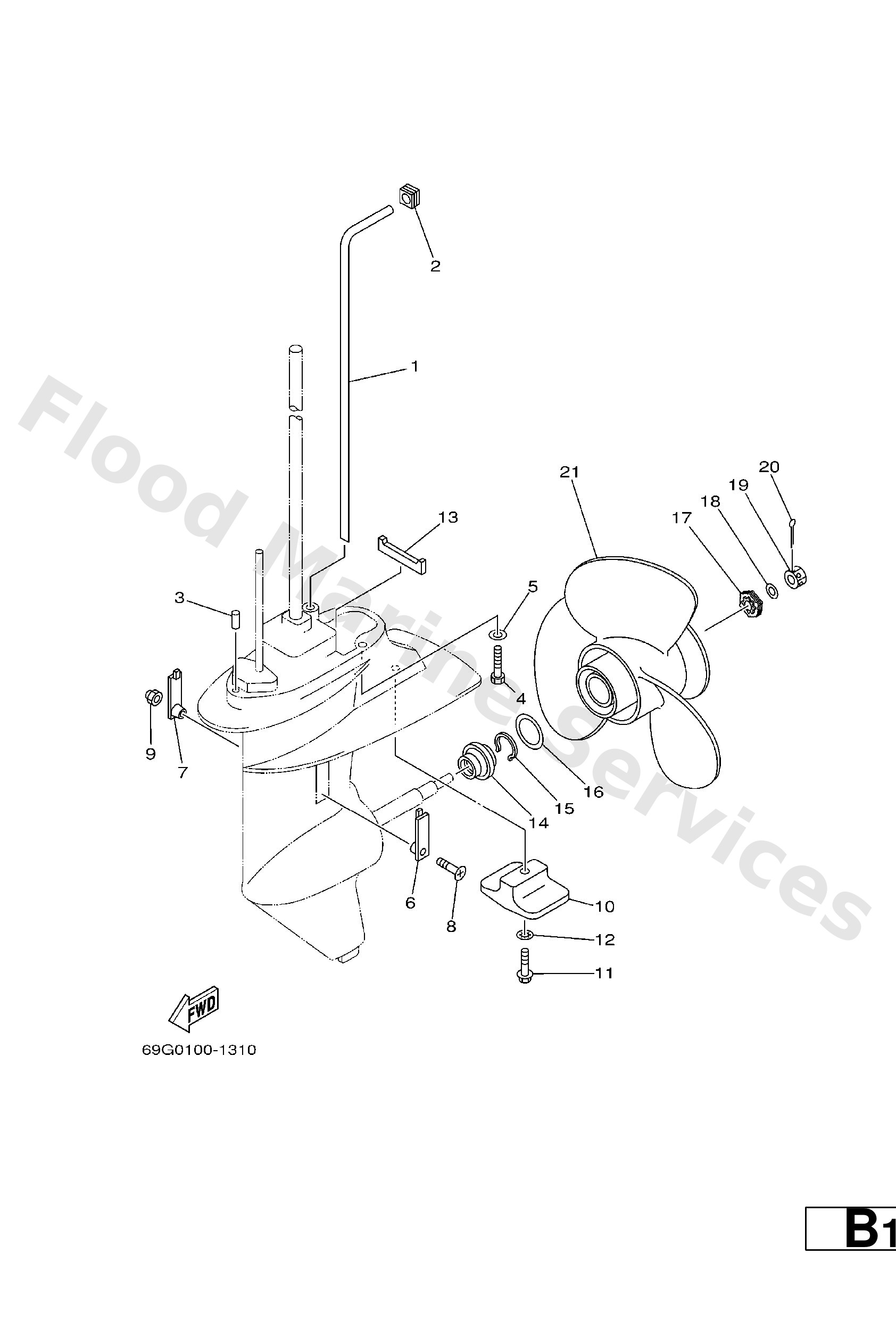

Diagram: LOWER CASING. DRIVE 2

Diagram

Parts List

69G−44361−20 (X)
Tube, water 1
Diagram Reference: 1
Get Part
68T−44361−10 (L)
Tube, water 1
Diagram Reference: 1
Get Part
63V−44365−10
Damper, water seal 1
Diagram Reference: 2
Get Part
93604−12M07
Pin, dowel (688)
Diagram Reference: 3
Get Part
97075−08035 (L)
Bolt(70w)
Diagram Reference: 4
Get Part
92995−08600 (L)
Washer, plain (663)
Diagram Reference: 5
Get Part
6G1−45214−00
Cover, water inlet
Diagram Reference: 6
Get Part
63V−45215−00
Cover, water inlet
Diagram Reference: 7
Get Part
90152−05M04
Screw, countersunk
Diagram Reference: 8
Get Part
90185−05002
Nut nylon (sus)(ex4)
Diagram Reference: 9
Get Part
61N−45251−01
Anode
Diagram Reference: 10
Get Part
95895−06030
Bolt, flange deep recess
Diagram Reference: 11
Get Part
92990−06300
Washer, tooth
Diagram Reference: 12
Get Part
63V−45375−00
Damper, seal
Diagram Reference: 13
Get Part
6G8−45987−02
Spacer
Diagram Reference: 14
Get Part
93450−10M04
Circlip(6g8)
Diagram Reference: 15
Get Part
90201−31MA3
Washer, plate (6g8)
Diagram Reference: 16
Get Part
6G8−45997−00
Spacer
Diagram Reference: 17
Get Part
90201−10M02
Washer, plate(6g9)
Diagram Reference: 18
Get Part
90171−10M07
Nut, castle(6g8)
Diagram Reference: 19
Get Part
91490−30025
Pin cotter
Diagram Reference: 20
Get Part
69G−45941−00−EL
Propeller (3x11-3/4 x5-3/4 -r)
Diagram Reference: 21
Get Part
