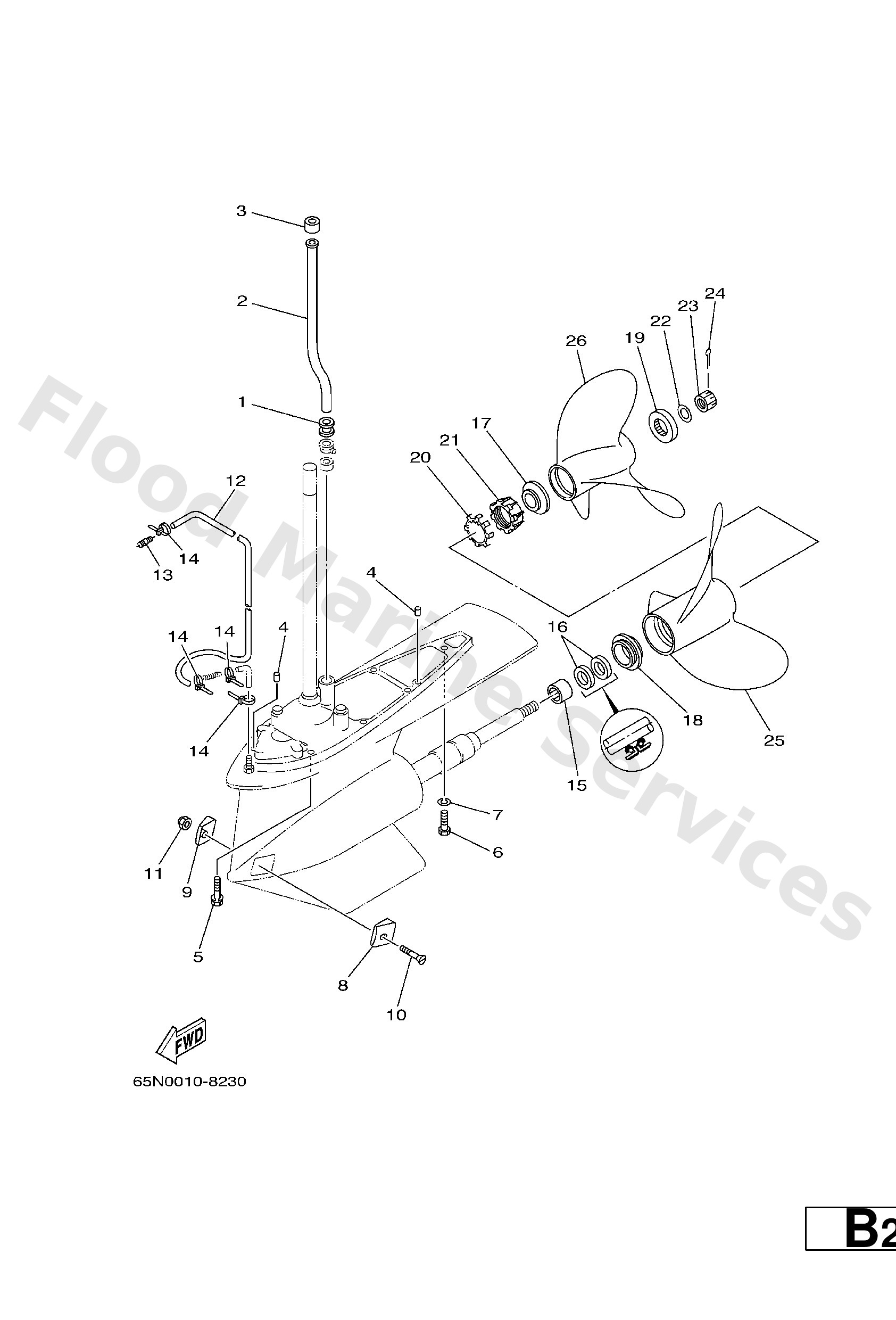

Diagram: LOWER CASING. DRIVE 3

Diagram

Parts List

6E54436600
Damper, water seal 2
Diagram Reference: 1
Get Part
6E54436100 (L)
Tube, water
Diagram Reference: 2
Get Part
6E54436500
Damper, water seal 1
Diagram Reference: 3
Get Part
9360812M05
Pin, dowel b (6e5)
Diagram Reference: 4
Get Part
9010110M70
Bolt(6j9)
Diagram Reference: 5
Get Part
9707510035
Bolt
Diagram Reference: 6
Get Part
9299510100
Ybs67-10 washer, spring
Diagram Reference: 7
Get Part
65N4521400
Cover, Water Inlet
Diagram Reference: 8
Get Part
65N4521500
Cover, Water Inlet
Diagram Reference: 9
Get Part
9014205M07
Screw, Countersunk
Diagram Reference: 10
Get Part
9018505002
Nut nylon (sus)(ex4)
Diagram Reference: 11
Get Part
9044507M33
-
Diagram Reference: 12
Get Part
6E58355800
End, nipple
Diagram Reference: 13
Get Part
9046511M10
Clamp
Diagram Reference: 14
Get Part
93317428U8
Bearing, cylindrical(6u4)
Diagram Reference: 15
Get Part
9310128M67
Oil seal
Diagram Reference: 16
Get Part
65N4598700
Spacer
Diagram Reference: 17
Get Part
65N4599700
Spacer 2
Diagram Reference: 18
Get Part
6884599701
Spacer 2
Diagram Reference: 19
Get Part
65N4599400
Plate, tooth
Diagram Reference: 20
Get Part
65N4561600
Nut, propeller
Diagram Reference: 21
Get Part
9299018200
Washer (6e5)
Diagram Reference: 22
Get Part
9017118M04
Nut, castle (6e5)
Diagram Reference: 23
Get Part
9149040030
Pin, cotter (663)
Diagram Reference: 24
Get Part
65N4594100 (UR)
Propeller (3X14”X25”–Mf)
Diagram Reference: 25
Get Part
65N4594500 (UR)
Propeller (3X14”X27”–Mf)
Diagram Reference: 25
Get Part
65N4594300 (UR)
Propeller (3X13”X25”–Mr)
Diagram Reference: 26
Get Part
65N4594700 (UR)
Propeller (3X13”X27”–Mr)
Diagram Reference: 26
