Yamaha Outboard Parts - Lower Casing & Drive - 50GETO (1996) | Flood Marine

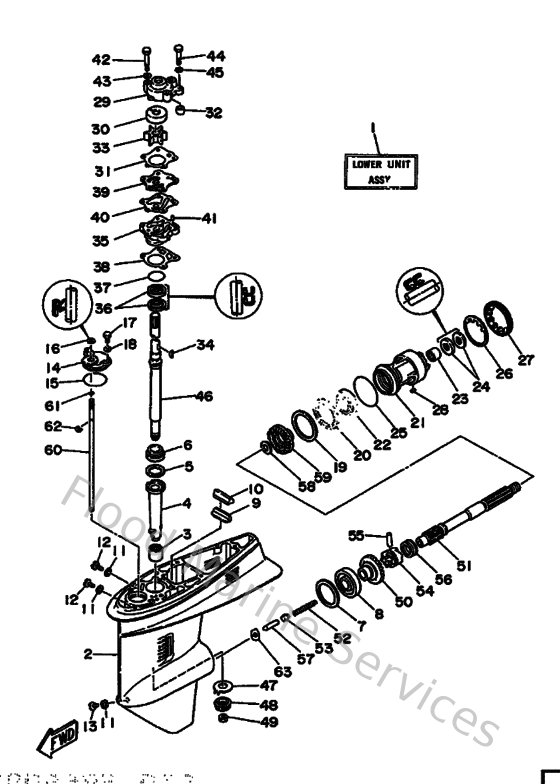

Diagram: Lower Casing & Drive

Diagram

Parts List

Reference

Description

Price

2

69745311024D

Loading…

3

93315322V200

Bearing Needle (698)

Loading…

4

698455360000

Sleeve Drive Shaft

Loading…

5

663455870130

Shim (t:0,30mm)

Loading…

6

933320007900

Loading…

7

663455676000

Shim (t:0.50mm)

Loading…

8

933320000300

Brg,cyl-cal roller 318g ky

Loading…

9

663453760094

Guide, seal damper

Loading…

10

663453750000

Loading…

11

904300802000

Loading…

12

903400800200

Plug, straight screw

Loading…

13

688453410000

Loading…

14

663453210000

Loading…

15

932104904600

Loading…

16

931060901400

Loading…

17

970950601600

Bolt, hexagon deep recess

Loading…

18

929900660000

Washer, plain (646)

Loading…

19

663455776000

Shim (t:0.50mm)

Loading…

20

663455760000

Washer, thrust 2

Loading…

21

663453310094

Housing, bearing

Loading…

22

933060070200

Brg,r-b 6007 62mm 150g ky

Loading…

23

933172220400

Brg,cyl-cal roller 25.5g nt

Loading…

24

931012206700

Oil seal (22x36x6-663)

Loading…

25

9321066M9800

Loading…

26

9021448M0300

Washer, claw(697)

Loading…

27

697453840000

Loading…

28

902820401000

Key, strait(663)

Loading…

29

663443110200

Housing, water pump

Loading…

30

663443220000

Insert, cartridge

Loading…

31

66344315A000

Gasket,water pump 1

Loading…

32

663443660000

Damper, water seal 2

Loading…

33

6H3443520000

Loading…

34

9028003M0300

Key, woodruff (697)

Loading…

35

663443410094

Housing, water pump

Loading…

36

931012307000

Loading…

37

932104104200

Loading…

39

663443230000

Outer plate, cartridge

Loading…

40

66344324A000

Gasket,cartridge outer plate

Loading…

41

936040806200

Pin,dowel (626)

Loading…

42

970950805500

Loading…

43

929900860000

Washer, plain (663)

Loading…

44

970950804500

Loading…

45

929950860000

Washer, plain (663)

Loading…

50

675455600000

Loading…

51

677456110100

Shaft, propeller

Loading…

52

905011623300

Spring compression(663)

Loading…

53

663456340000

Loading…

54

663456310100

Loading…

55

902500602300

Pin, strait (663)

Loading…

56

663456330000

Ring, cross pin

Loading…

57

688456350000

Loading…

58

902012242900

Washer, plate(663)

Loading…

59

675455710100

Loading…

60

6K5441440000

Loading…

61

932100754000

Loading…

62

990010860000

Loading…

63

663441510000

Loading…

2

688453750000

Loading…

3

688453710200

Loading…

4

9010510M0000

Bolt, hexagon (663)

Loading…

5

936061201900

Pin, dowel (614)

Loading…

6

970951004000

Bolt, hexagon deep recess

Loading…

7

929901010000

Ybs67-10 washer, spring

Loading…

8

929901060000

Loading…

9

9011908M8400

Bolt, with washer

Loading…

10

6H3443610000

Loading…

11

902021206000

Washer, plate(663)

Loading…

12

904301207200

Loading…

13

663443670000

Damper, water seal 3

Loading…

15

9044507MF100

Loading…

16

6E5835580000

Loading…

17

688459870200

Loading…

18

688459970100

Loading…

19

9020117M0000

Washer, plate(6h1)

Loading…

20

901711601100

Nut, castle (663)

Loading…

21

914904003000

Pin, cotter (663)

Loading…

22

6E5459490000

Propeller (3x13-5/8"x13"-k)

Loading…

23

6E5459781000

Propeller assembly (3x14"x26"-p)

Loading…

24

6E5459941000

Loading…

25

6E5453711000

Loading…

1

6H345300044D

Lower unit assembly

Loading…

2

6H145301024D

Lower casing set

Loading…

3

93315325V100

Bearing, needle (688)

Loading…

4

688455360100

Sleeve, drive shaft

Loading…

5

688455876000

Shim (t:0.50mm)

Loading…

6

93332000U300

Brg,tapered roller 50mm (688)

Loading…

7

688455676000

Shim (t:0.50mm)

Loading…

8

93332000W700

Loading…

12

688452140200

Cover, water inlet

Loading…

13

688452150200

Cover, water inlet

Loading…

14

9015105M0000

Screw, countersunk(692)

Loading…

15

901850590400

Nut nylon (sus)(ex4)

Loading…

16

688453210000

Loading…

21

6E5453780000

Loading…

22

9044507ME900

Loading…

23

6E5835581000

Loading…

24

9046511M1000

Loading…

25

6H3443110000

Housing, water pump 1

Loading…

27

6H344315A000

Gasket,water pump 1

Loading…

30

6H3443410094

Housing, water pump set

Loading…

32

932104604400

Loading…

33

68844316A000

Gasket,water pump 2

Loading…

34

6H3443230000

Outer plate, cartridge

Loading…

35

6H344324A000

Gasket,cartridge 0ut,plate

Loading…

36

9360410M0300

Pin, dowel (688)

Loading…

39

9020908M0200

Washer, plate (688)

Loading…

40

6H3455010000

Drive Shaft Comp.

Loading…

41

6K5455510000

Loading…

42

9017016M0100

Nut, hexagon (688)

Loading…

43

6K5455600000

Loading…

44

6H1456110200

Shaft, propeller

Loading…

45

6H1456310100

Loading…

46

9360312M1100

Pin, dowel(6h1)

Loading…

47

6H1456340200

Loading…

48

9050116M6500

Spring, compression(6h1)

Loading…

49

935031600300

Loading…

50

6H1456680000

Loading…

51

6H1456350000

Loading…

52

9050112M4800

Loading…

53

902010331300

Washer, plate 8077743700

Loading…

54

9018302M0300

Nut, spring (6h1)

Loading…

55

9025007M0200

Pin, straight (688)

Loading…

56

688456330000

Ping, cross pin

Loading…

57

6H1456410100

Loading…

58

6H1441510000

Loading…

59

6H1441440000

Loading…

62

9345007M0000

Loading…

63

6H3455710000

Loading…

64

6884533100CA

Housing, bearing

Loading…

65

93306207U000

Brg,r-b 6207 72mm 280g (688)

Loading…

66

688455776000

Shim (t:0.50mm)

Loading…

67

688455760000

Washer, thrust 2

Loading…

68

9321085M9700

Loading…

69

93317325U000

Loading…

70

9310125M0300

Loading…

72

688453830200

Loading…

73

688453840000

Loading…

3

986800554000

Ybs53-540 screw,flat head

Loading…

9

679453710000

Loading…

10

9010510M6700

Bolt, hexagon (663)

Loading…

15

663459870200

Loading…

16

670459970200

Loading…

17

929901620000

958-58204-00 washer,plain

Loading…

20

663459300000

Propeller (3x10-1/4"x14"-g)

Loading…
