E40XMH (1998)
Lower Casing & Drive

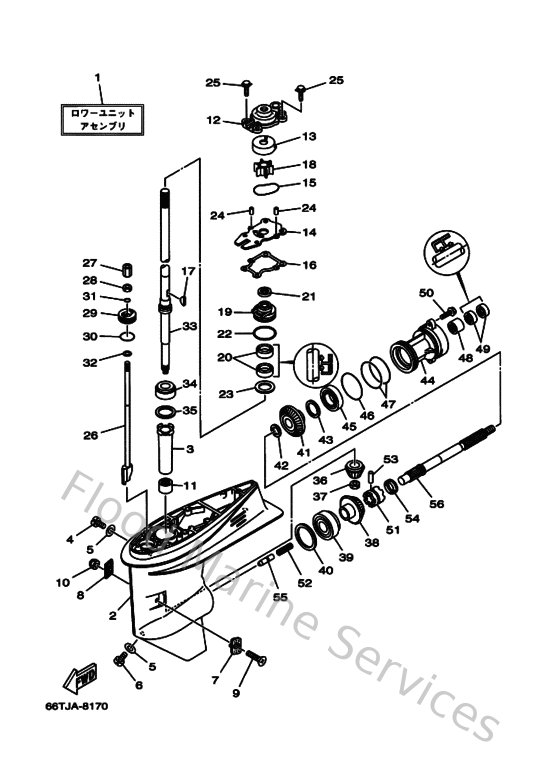

Diagram: Lower Casing & Drive
Parts List
Reference
Description
Price
1
66T45300004D
Lower unit assembly
Loading…
↗
2
66T45311004D
Casing, lower
Loading…
↗
3
6H4455360000
Sleeve, drive shaft
Loading…
↗
4
903400800200
Plug, straight screw
Loading…
↗
5
904300802000
Gasket
Loading…
↗
6
688453410000
Plug, drain
Loading…
↗
7
63D452140000
Cover, water inlet
Loading…
↗
8
63D452150000
Cover, water inlet
Loading…
↗
9
901520501000
Screw, countersunk
Loading…
↗
10
953800560000
Nut, hexagon (663)
Loading…
↗
11
933153222400
Brg,cyl-cal roller 42.2g nk
Loading…
↗
12
66T443110000
Housing, water pump
Loading…
↗
13
63D443220000
Insert, cartridge
Loading…
↗
14
66T443234000
Outer plate, cartridge
Loading…
↗
15
9321059MG700
O-ring
Loading…
↗
16
63D443160000
Gasket, water pump
Loading…
↗
17
9028003M0700
Key, woodruff (697)
Loading…
↗
18
6H4443520200
Impeller
Loading…
↗
19
999990391600
Housing, water pump set
Loading…
↗
20
9310122M6000
Oil seal
Loading…
↗
21
66T453440000
Cover, oil seal
Loading…
↗
22
9321048MG800
O-ring
Loading…
↗
23
9020127M0000
Washer, plate(62x)
Loading…
↗
24
936040806200
Pin,dowel (626)
Loading…
↗
25
9011908M1500
Bolt, with washer(62w)
Loading…
↗
26
66T441500100
Shift cam assembly
Loading…
↗
27
61N441460000
Connector, shift rod
Loading…
↗
28
953800670000
Nut
Loading…
↗
29
66T453210000
Plate
Loading…
↗
30
9321033MG400
O-ring
Loading…
↗
31
9321006ME600
O-ring
Loading…
↗
32
929900660000
Washer, plain (646)
Loading…
↗
33
66T455010000
Drive shaft comp.
Loading…
↗
34
933320000100
Brg, tapered roller (409)
Loading…
↗
35
663455876000
Shim (t:0.50mm)
Loading…
↗
36
66T455510000
Pinion
Loading…
↗
37
901701213800
Nut hexagon(663)
Loading…
↗
38
66T455600100
Gear
Loading…
↗
39
933320000300
Brg,cyl-cal roller 318g ky
Loading…
↗
40
663455676000
Shim (t:0.50mm)
Loading…
↗
41
66T455710000
Gear
Loading…
↗
42
902012242900
Washer, plate(663)
Loading…
↗
43
63D455776000
Shim (t:0.50mm)
Loading…
↗
44
63D45361024D
Cap, lower casing
Loading…
↗
45
93306001U100
Bearing(62x)
Loading…
↗
46
9321069MG600
O-ring
Loading…
↗
47
932107477500
O-ring (xea)
Loading…
↗
48
933172220400
Brg,cyl-cal roller 25.5g nt
Loading…
↗
49
9310122M0000
Oil seal (22x36x6-663)
Loading…
↗
50
9010508M6100
Bolt, washer based(62x)
Loading…
↗
51
66T456310000
Clutch, dog
Loading…
↗
52
9050115M0100
Spring, compression
Loading…
↗
53
902500602300
Pin, strait (663)
Loading…
↗
54
663456330000
Ring, cross pin
Loading…
↗
55
66T456350000
Plunger, shift
Loading…
↗
56
66T456110000
Shaft, propeller
Loading…
↗
1
66T443610000
Tube, water
Loading…
↗
2
902021206000
Washer, plate(663)
Loading…
↗
3
904301207200
Gasket
Loading…
↗
4
663443670000
Damper, water seal 3
Loading…
↗
5
9011908M4400
Bolt, with washer
Loading…
↗
6
663453760000
Guide, seal damper
Loading…
↗
7
63D453750000
Damper, seal
Loading…
↗
8
664453710100
Tab-trim
Loading…
↗
9
970950802500
Bolt (62g)
Loading…
↗
10
929900810000
Ybs67-8 washer, spring
Loading…
↗
11
936061201900
Pin, dowel (614)
Loading…
↗
12
970751004000
Bolt, hexagon deep recess
Loading…
↗
13
929951010000
Ybs67-10 washer, spring
Loading…
↗
14
929901060000
Washer, plate
Loading…
↗
15
63D452511000
Anode
Loading…
↗
16
970950803000
Bolt, hexagon (fj1)
Loading…
↗
18
663443660000
Damper, water seal 2
Loading…
↗
19
63D443120000
Cover, water pump housing
Loading…
↗
20
663459870200
Spacer
Loading…
↗
21
66T459970000
Spacer 2
Loading…
↗
22
9038922M0100
Bush
Loading…
↗
23
901711601100
Nut, castle (663)
Loading…
↗
24
914903003000
Pin, cotter
Loading…
↗
25
663459410100
Propeller (3x10-3/4"x17"-g)
Loading…
↗
