FT9.9DMHSL (2000)
Lower Casing & Drive 1

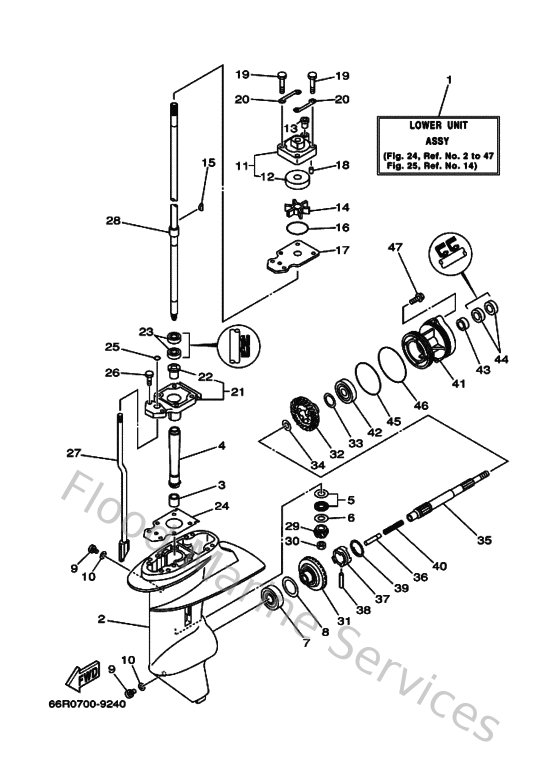

Diagram: Lower Casing & Drive 1
Parts List
Reference
Description
Price
1
66R45300104D
Lower Unit assembly
Loading…
↗
2
66R45311004D
Casing, lower
Loading…
↗
3
93315314V800
Bearing, needle (6e7)
Loading…
↗
4
66R455360000
Sleeve, drive shaft
Loading…
↗
5
933414141400
Bearing
Loading…
↗
6
6E8455870013
Shim (t:1.13mm)
Loading…
↗
7
933320000500
Brg,cyl-cal roller 0.19g nt
Loading…
↗
8
626455774000
Shim (t:0.50mm)
Loading…
↗
9
9034008M0400
Plug, straight screw
Loading…
↗
10
904300800300
Gasket
Loading…
↗
11
63V443010000
Water pump housing comp.
Loading…
↗
12
63V443220000
Insert, cartridge
Loading…
↗
13
647443660000
Damper, water seal 2
Loading…
↗
14
63V443520100
Impeller
Loading…
↗
15
664443380000
Key, woodruff
Loading…
↗
16
932104439800
O-ring(55x)
Loading…
↗
17
63V443230000
Outer plate, cartridge
Loading…
↗
18
9360412M0700
Pin, dowel (688)
Loading…
↗
19
970800804500
Bolt, hexagon
Loading…
↗
20
63V443280000
Plate
Loading…
↗
21
63V45331005B
Housing, bearing
Loading…
↗
22
626453160900
Bushing, drive shaft 1
Loading…
↗
23
931012004800
Oil seal (20x30x6-648)
Loading…
↗
24
63V45315A000
Packing, lower casing
Loading…
↗
25
9321006ME600
O-ring
Loading…
↗
26
970950802500
Bolt (62g)
Loading…
↗
27
66R441501000
Shift cam assembly
Loading…
↗
28
66R455102000
Drive Shaft assembly
Loading…
↗
29
66R455510000
Pinion
Loading…
↗
30
9017908M0600
Nut (6e7)
Loading…
↗
31
66R455600000
Gear
Loading…
↗
32
66R455710000
Gear
Loading…
↗
34
902011768200
Washer, plate (2k7)
Loading…
↗
35
683456110000
Shaft propeller
Loading…
↗
36
650456350000
Plunger, shift
Loading…
↗
37
682456310000
Clutch, dog
Loading…
↗
38
902500501000
Pin straight 648456320000
Loading…
↗
39
648456330000
Ring, cross pin
Loading…
↗
40
9050114M0900
Spring, compression
Loading…
↗
41
66R45361004D
Cap, lower casing
Loading…
↗
42
933060050100
Bearing(1ff)
Loading…
↗
43
93315317U200
Brg,cyl-cal roller 14g (683)
Loading…
↗
44
931011705400
Oil seal (17x30x6-650)
Loading…
↗
45
9321074M6800
O-ring (6g8)
Loading…
↗
46
932107431600
O-ring (1j7)
Loading…
↗
47
975950652500
Bolt, hexagon w/w deep recess
Loading…
↗
