F45A (1998)
Lower Casing. Drive 4 (FT50B)

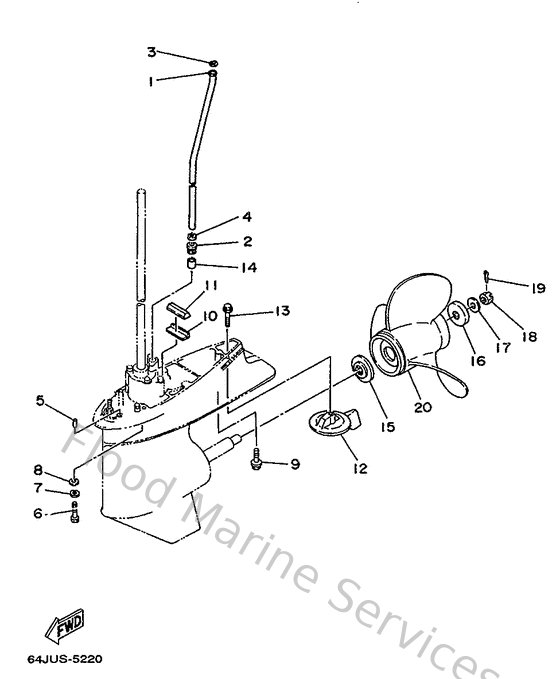

Diagram: Lower Casing. Drive 4 (FT50B)
Parts List
Reference
Description
Price
1
62Y443610000
Tube, water
Loading…
↗
2
663443670000
Damper, water seal 3
Loading…
↗
3
902021206000
Washer, plate(663)
Loading…
↗
4
904301207200
Gasket
Loading…
↗
5
936061201900
Pin, dowel (614)
Loading…
↗
6
970751004000
Bolt, hexagon deep recess
Loading…
↗
7
929901010000
Ybs67-10 washer, spring
Loading…
↗
8
929901060000
Washer, plate
Loading…
↗
9
9011908M8400
Bolt, with washer
Loading…
↗
10
663453760000
Guide, seal damper
Loading…
↗
11
688453750000
Damper, seal 2
Loading…
↗
12
688453710200
Tab-trim
Loading…
↗
13
9010510M6700
Bolt, hexagon (663)
Loading…
↗
14
663443660000
Damper, water seal 2
Loading…
↗
15
688459870100
Spacer
Loading…
↗
16
688459970100
Spacer 2
Loading…
↗
17
9020117M0000
Washer, plate(6h1)
Loading…
↗
18
901711601100
Nut, castle (663)
Loading…
↗
19
914904003000
Pin, cotter (663)
Loading…
↗
20
6E54595200EL
Propeller (3x13"x23"-k)
Loading…
↗
