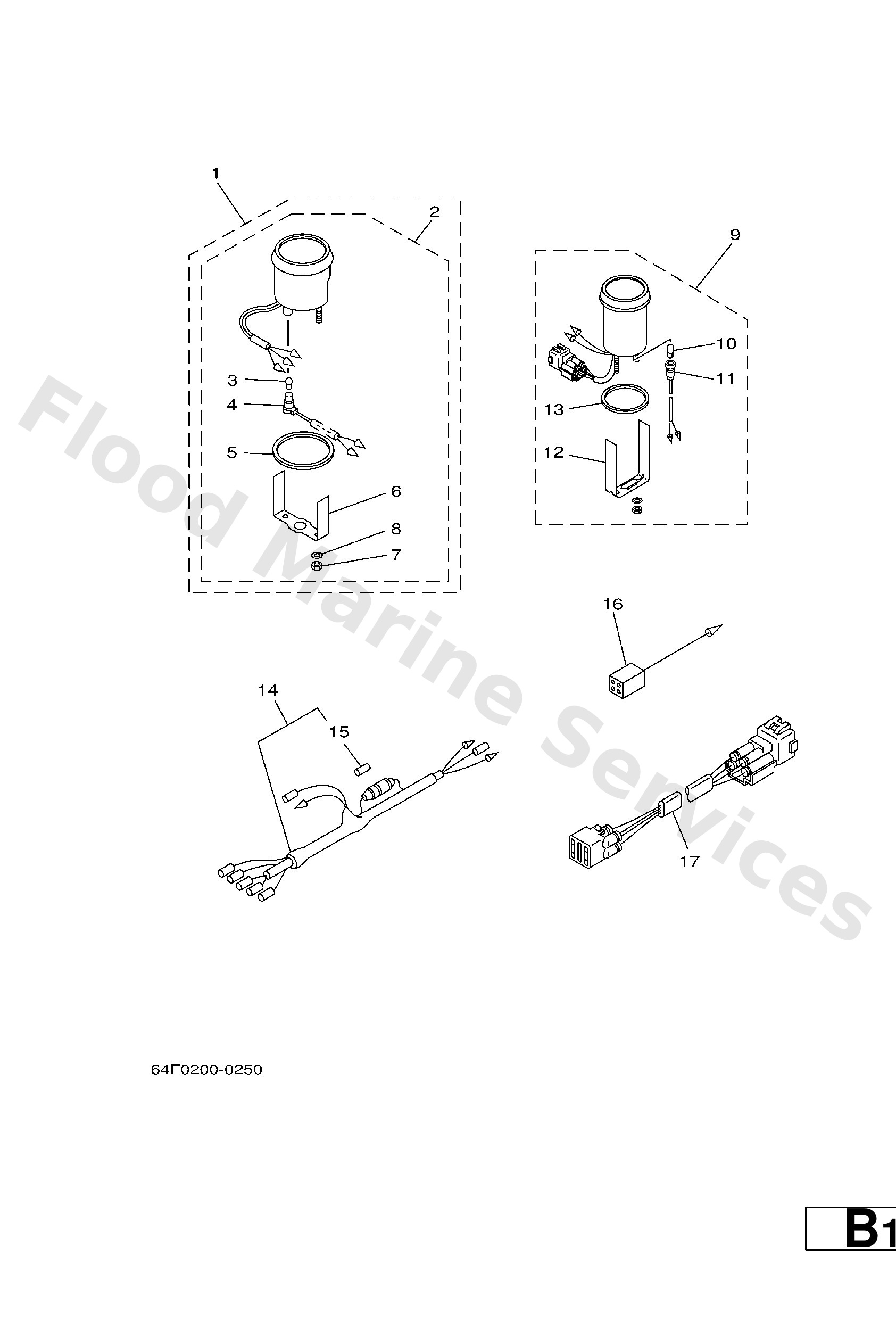

Diagram: METER

Diagram

Parts List

6Y5W008012 (AP)
Tachometer kit
Diagram Reference: 1
Get Part
6Y58354014 (WITHOUT OIL LAMP)
Tachometer assembly
Diagram Reference: 2
Get Part
6Y58351700
Bulb (12v-1.7w)
Diagram Reference: 3
Get Part
6Y58353610
Socket, meter
Diagram Reference: 4
Get Part
6Y58352300
Damper
Diagram Reference: 5
Get Part
6Y58351400
Plate, fitting
Diagram Reference: 6
Get Part
9538005600
Nut, hexagon (663)
Diagram Reference: 7
Get Part
9299005100
Ybs67-5 washer, spring
Diagram Reference: 8
Get Part
6Y58367012 (AP)
Trim meter assembly.
Diagram Reference: 9
Get Part
6Y58351800
Bulb (12v-1.7w) t6.5
Diagram Reference: 10
Get Part
6Y58353600
Socket, meter
Diagram Reference: 11
Get Part
6Y58354400
Plate, fitting
Diagram Reference: 12
Get Part
6888366400
Damper
Diagram Reference: 13
Get Part
6Y58355300 (AP)
Wire, lead (l=2.5m)
Diagram Reference: 14
Get Part
1E68215100
Fuse (10a)
Diagram Reference: 15
Get Part
6Y58211700 (AP)
Wire, lead
Diagram Reference: 16
Get Part
6R38255370 (AP)
Extension, wire lead (for trim
Diagram Reference: 17
Get Part
