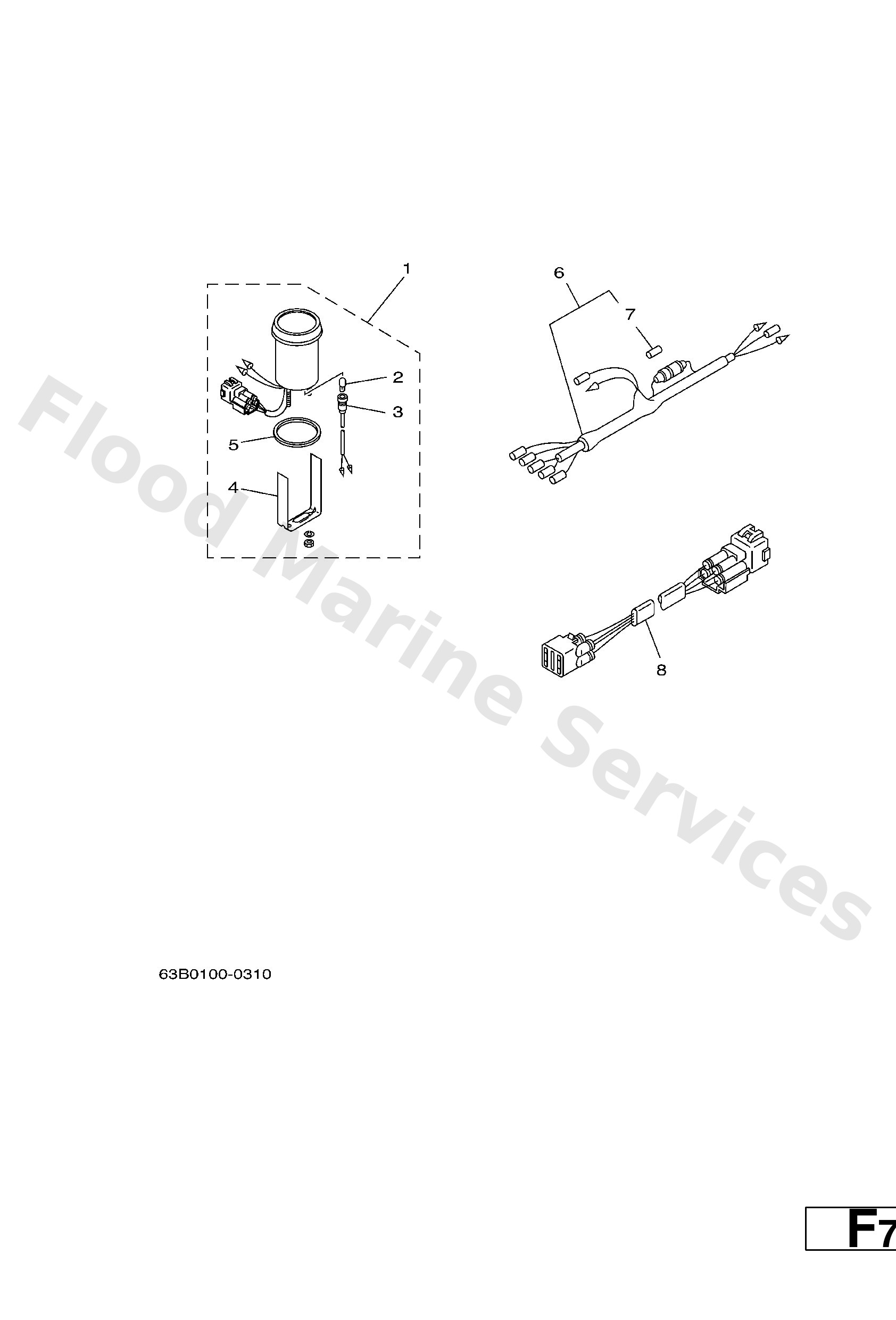

Diagram: METER

Diagram

Parts List

6Y5--83670--12 (AP)
Trim meter assembly.
Diagram Reference: 1
Get Part
6Y5--83518--00
Bulb (12v-1.7w) t6.5
Diagram Reference: 2
Get Part
6Y5--83536--00
Socket, meter
Diagram Reference: 3
Get Part
6Y5--83544--00
Plate, fitting
Diagram Reference: 4
Get Part
688--83664--00
Damper
Diagram Reference: 5
Get Part
6Y5--83553--00 (AP)
Wire, lead (l=2.5m)
Diagram Reference: 6
Get Part
1E6--82151--00
Fuse (10a)
Diagram Reference: 7
Get Part
6R3--82553--70 (AP 4P,7M)
Extension, wire lead (for trim
Diagram Reference: 8
Get Part
