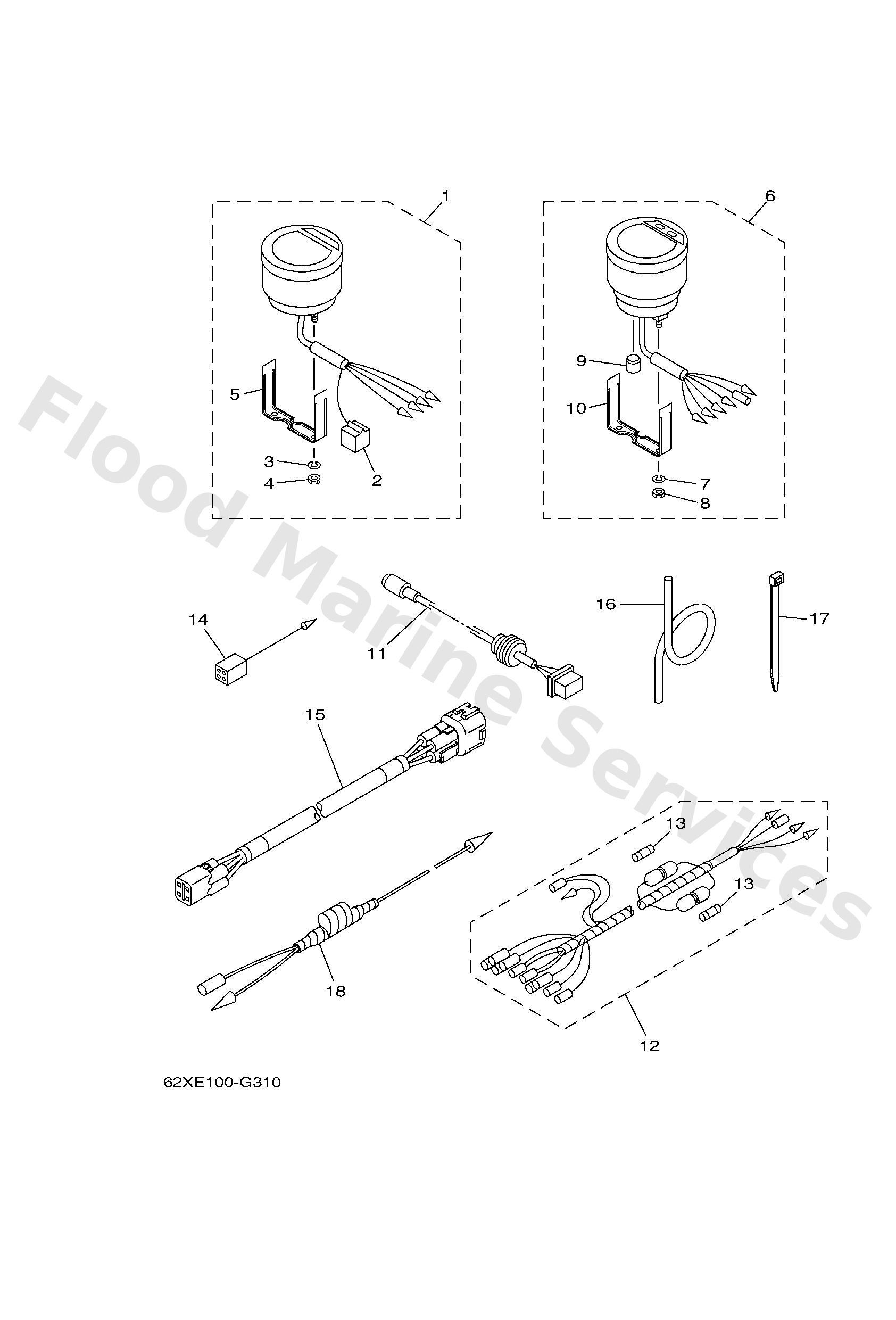

Diagram: METER

Diagram

Parts List

6Y58350T90 (AP)

Tachometer assembly

Diagram Reference: 1

9E45004533 (F-4-W)

Housing, f-4-w(5pcs)

Diagram Reference: 2

9299004100

Ybs67-4 washer, spring

Diagram Reference: 3

9538004600

Nut,hex

Diagram Reference: 4

6Y58355XT1

Bracket, meter 1

Diagram Reference: 5

6Y583570S5 (AP)

Speedometer assembly

Diagram Reference: 6

6Y583533T2

Grommet

Diagram Reference: 9

6Y587122S0 (AP)

Cord assembly 1

Diagram Reference: 11

6Y583553M0 (AP)

Wire, lead (l=2.5m)

Diagram Reference: 12

6Y58355300 (AP)

Wire, lead (l=2.5m)

Diagram Reference: 12

1E68215100 (FOR 6Y5-83553-M0)

Fuse (10a)

Diagram Reference: 13

6Y58211700 (AP)

Wire, lead

Diagram Reference: 14

6Y58365330 (AP 4P,8M)

Wire, lead

Diagram Reference: 15

6Y58365320 (AP 4P,7M)

Wire, lead

Diagram Reference: 15

6Y58355710 (AP)

Tube (8m)

Diagram Reference: 16

9046511M10 (AP)

Clamp

Diagram Reference: 17

6H48131511 (AP)

Lead wire assembly

Diagram Reference: 18
