Diagram: METER

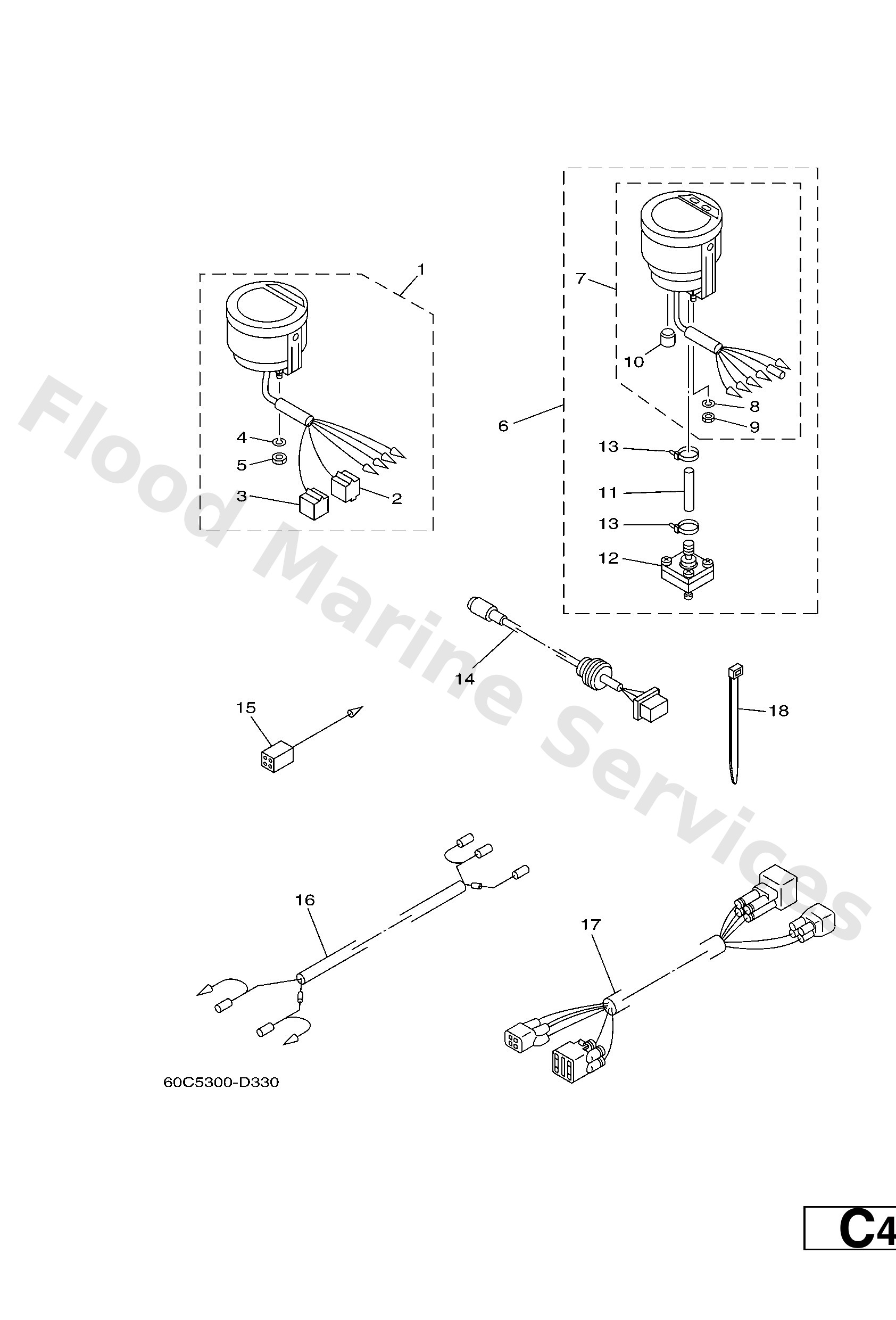

Diagram

Parts List

6Y58350T03 (AP)

Digital tachometer assembly

Diagram Reference: 1

9E45004433 (M-4-W)

Housing, connector (m-4-w)

Diagram Reference: 2

9E45004533 (F-4-W)

Housing, f-4-w(5pcs)

Diagram Reference: 3

9299004100

Ybs67-4 washer, spring

Diagram Reference: 4

9538004600

Nut,hex

Diagram Reference: 5

6Y583500S5 (AP)

Digital Speedometer assembly

Diagram Reference: 6

6Y583570S5

Speedometer assembly

Diagram Reference: 7

6Y583533T2

Grommet

Diagram Reference: 10

6Y58355731

-

Diagram Reference: 11

6Y58372800

-

Diagram Reference: 12

9046511M10 (AP)

Clamp

Diagram Reference: 18

6Y587122S0 (AP)

Cord assembly 1

Diagram Reference: 14

6Y58211700 (AP)

Wire, lead

Diagram Reference: 15

6Y58355310 (AP)

Wire, lead

Diagram Reference: 16

68F8255380 (AP)

Extension, wire lead (8m)

Diagram Reference: 17
