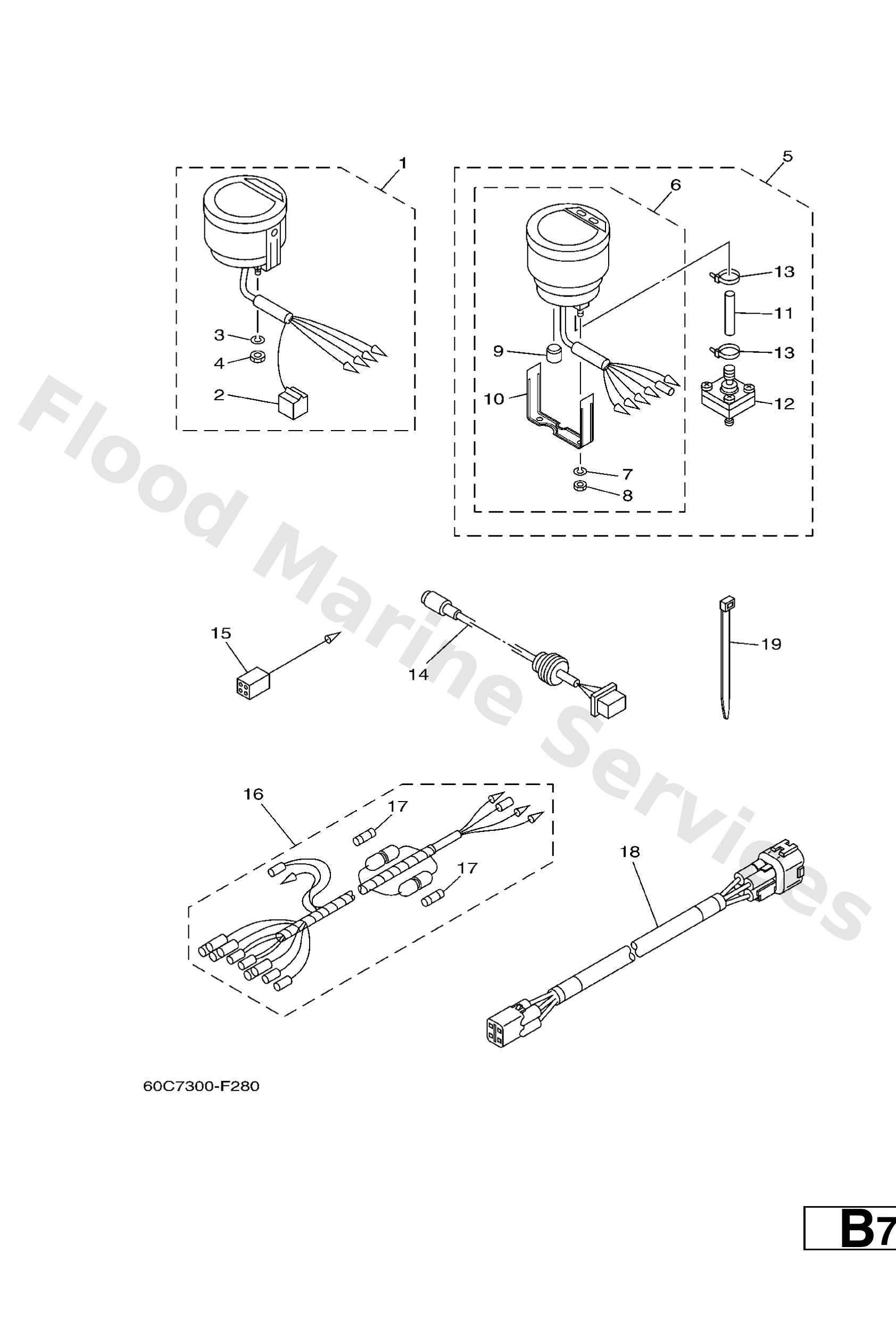

Diagram: METER

Diagram

Parts List

6Y58350T90 (AP)
Tachometer assembly
Diagram Reference: 1
Get Part
9E45004533 (F-4-W)
Housing, f-4-w(5pcs)
Diagram Reference: 2
Get Part
9299004100
Ybs67-4 washer, spring
Diagram Reference: 3
Get Part
9538004600
Nut,hex
Diagram Reference: 4
Get Part
6Y583500S5 (AP)
Digital Speedometer assembly
Diagram Reference: 5
Get Part
6Y583570S5
Speedometer assembly
Diagram Reference: 6
Get Part
6Y583533T2
Grommet
Diagram Reference: 9
Get Part
6Y58355XT1
Bracket, meter 1
Diagram Reference: 10
Get Part
6Y58355731
-
Diagram Reference: 11
Get Part
6Y58372800
-
Diagram Reference: 12
Get Part
9046511M10 (AP)
Clamp
Diagram Reference: 19
Get Part
6Y587122S0 (AP)
Cord assembly 1
Diagram Reference: 14
Get Part
6Y58211700 (AP)
Wire, lead
Diagram Reference: 15
Get Part
6Y583553M0 (AP)
Wire, lead (l=2.5m)
Diagram Reference: 16
Get Part
1E68215100
Fuse (10a)
Diagram Reference: 17
Get Part
6Y58365330 (AP 4P,8M)
Wire, lead
Diagram Reference: 18
Get Part
