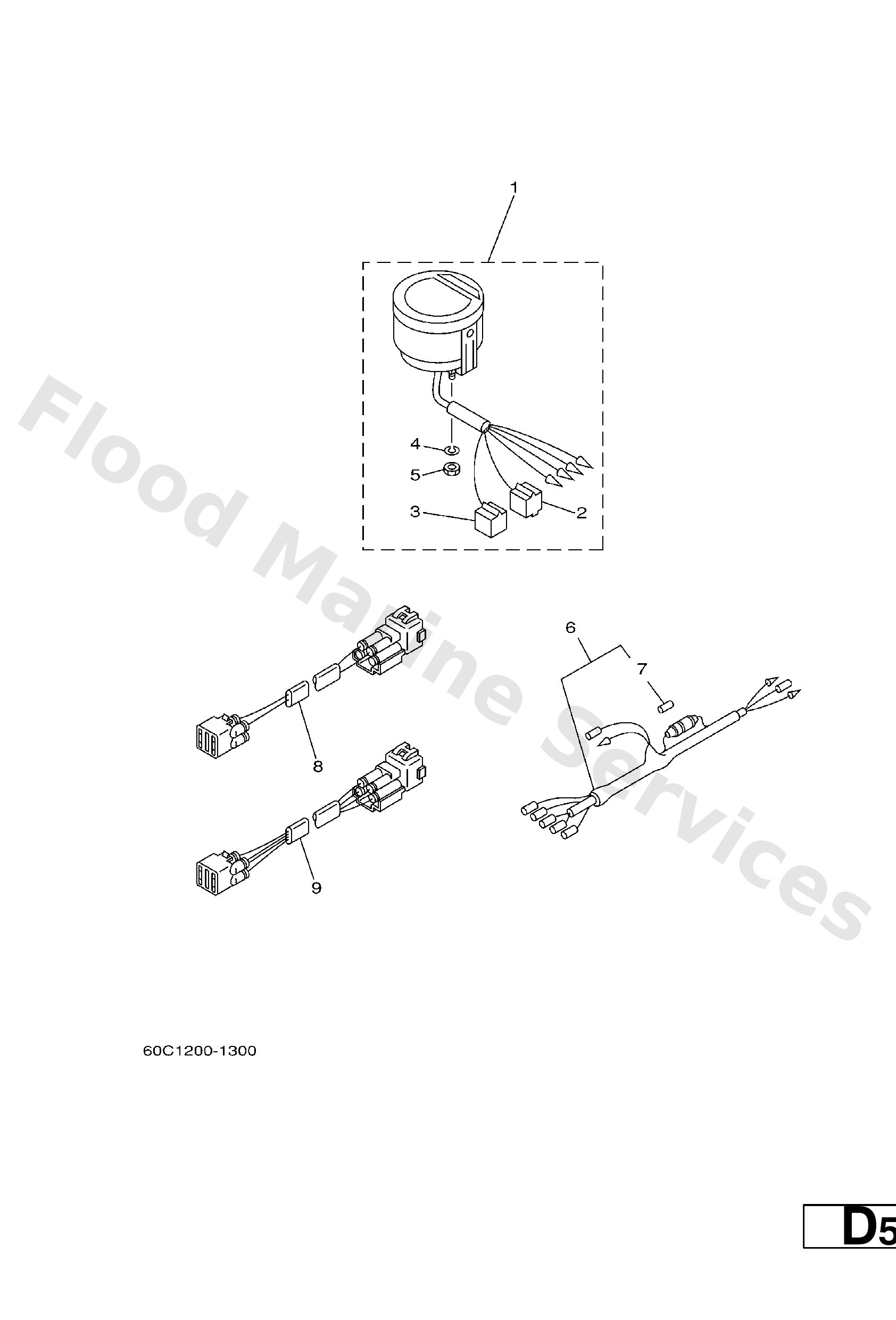

Diagram: METER

Diagram

Parts List

6Y5−8350T−02 (AP)

Digital tachometer assembly

Diagram Reference: 1

9E450−04433 (M−4−W)

Housing, connector (m-4-w)

Diagram Reference: 2

9E450−04533 (F−4−W)

Housing, f-4-w(5pcs)

Diagram Reference: 3

92990−04100

Ybs67-4 washer, spring

Diagram Reference: 4

95380−04600

Nut,hex

Diagram Reference: 5

6Y5−83553−00 (AP)

Wire, lead (l=2.5m)

Diagram Reference: 6

1E6−82151−00

Fuse (10a)

Diagram Reference: 7

6R3−82521−70 (AP 7M)

Wire, lead (for tacho., 7m)

Diagram Reference: 8

6R3−82553−70 (AP 4P,7M)

Extension, wire lead (for trim

Diagram Reference: 9
