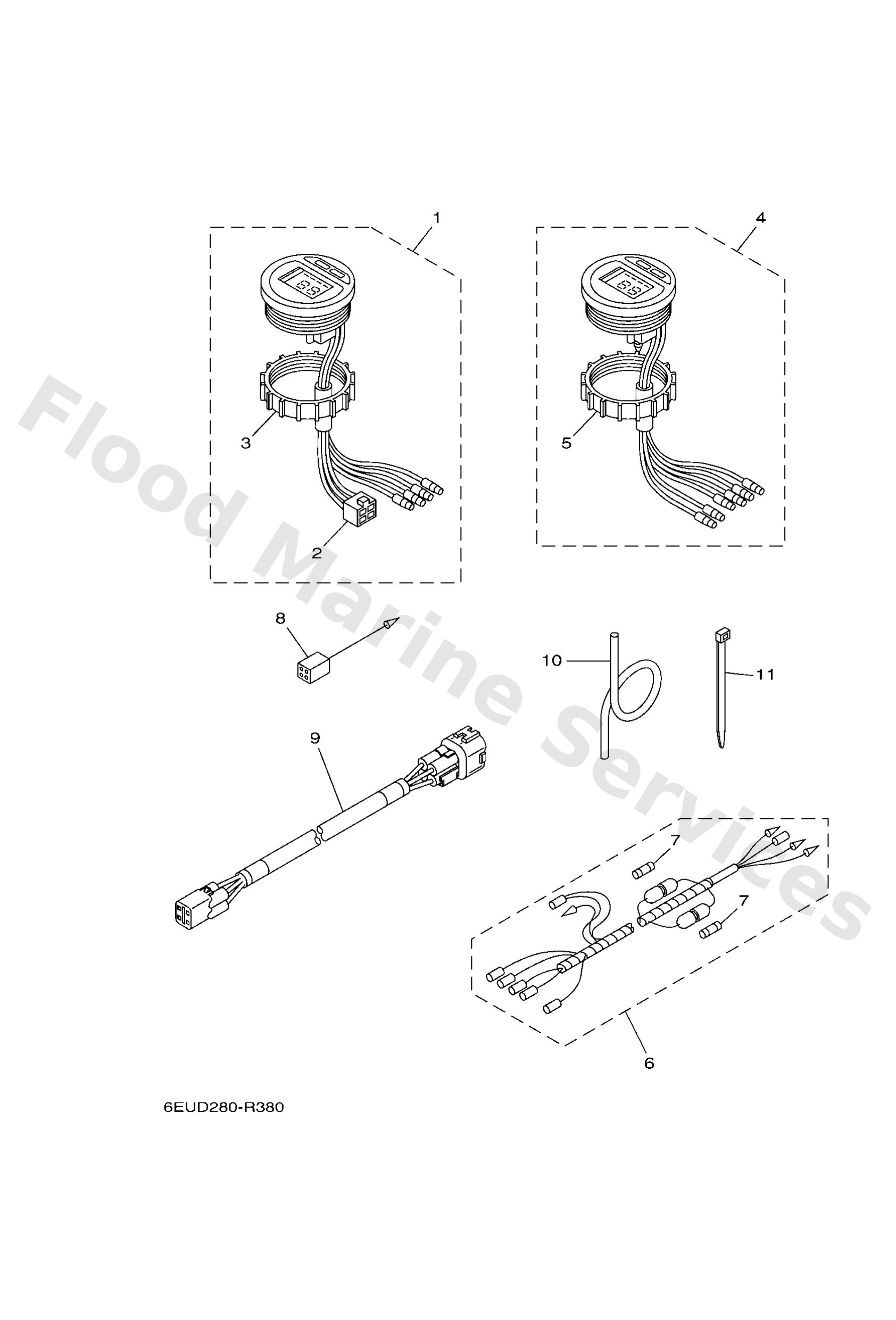

Diagram: METER

Diagram

Parts List

6Y58350TE0 (AP)

Tachometer assembly

Diagram Reference: 1

9E45004533 (F-4-W)

Housing, f-4-w(5pcs)

Diagram Reference: 2

6Y88438300

Nut, ring

Diagram Reference: 3

6Y583570A0 (AP)

Speedometer assembly

Diagram Reference: 4

6Y583553M0 (AP)

Wire, lead (l=2.5m)

Diagram Reference: 6

1E68215100

Fuse (10a)

Diagram Reference: 7

6Y58211700 (AP)

Wire, lead

Diagram Reference: 8

6Y58365330 (AP 4P,8M)

Wire, lead

Diagram Reference: 9

6Y58355710 (AP)

Tube (8m)

Diagram Reference: 10

9046511M10 (AP)

Clamp

Diagram Reference: 11
