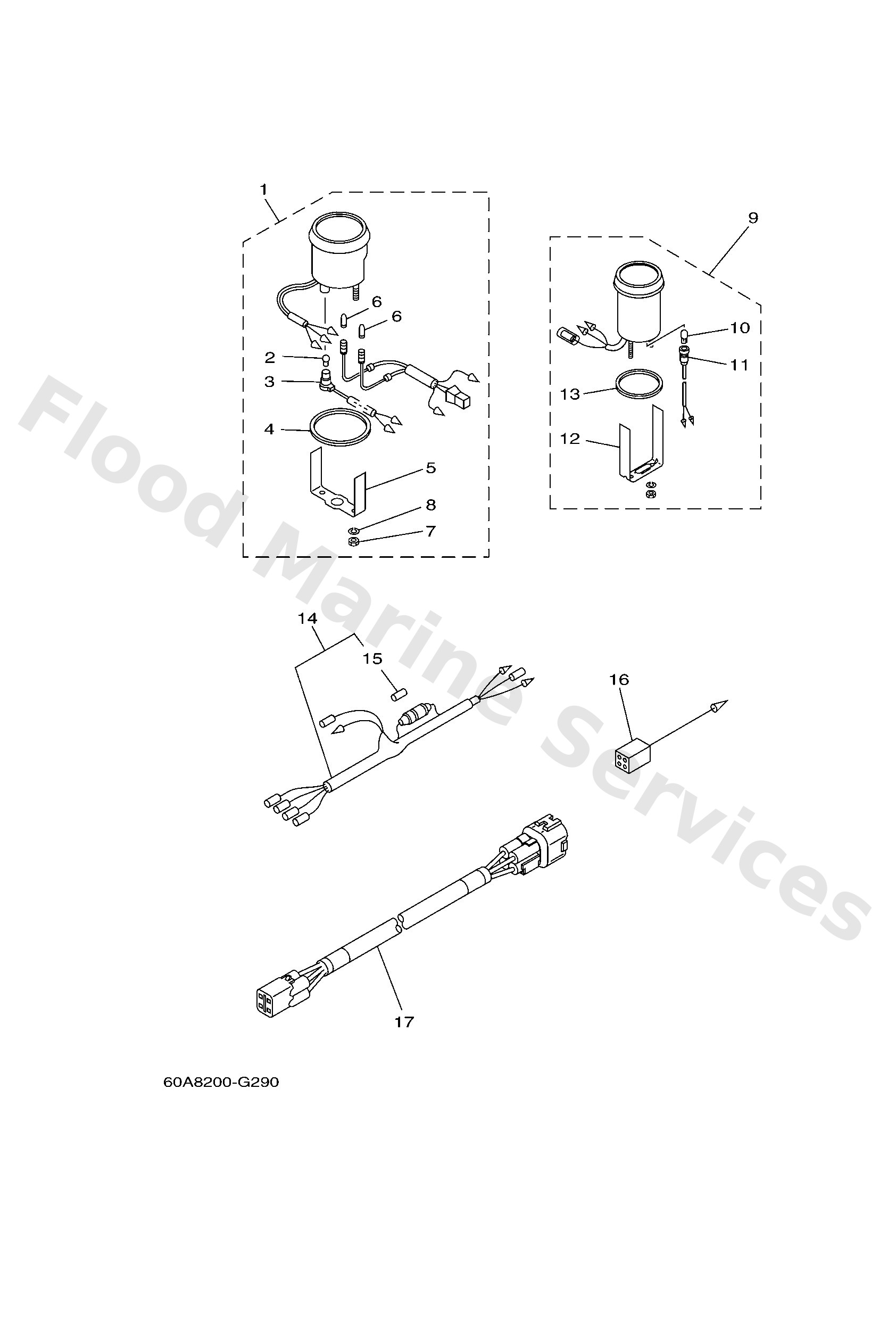

Diagram: METER
Parts List
Tachometer assembly
Diagram Reference: 1
Bulb (12v-1.7w)
Diagram Reference: 2
Socket, meter
Diagram Reference: 3
Damper
Diagram Reference: 4
Plate, fitting
Diagram Reference: 5
Bulb (12v-1.7w) t6.5
Diagram Reference: 6
Nut, hexagon (663)
Diagram Reference: 7
Ybs67-5 washer, spring
Diagram Reference: 8
Trim meter assembly.
Diagram Reference: 9
Socket, meter
Diagram Reference: 11
Plate, fitting
Diagram Reference: 12
Damper
Diagram Reference: 13
Wire, lead (l=2.5m)
Diagram Reference: 14
Fuse (10a)
Diagram Reference: 15
Wire, lead
Diagram Reference: 16
Wire, lead
Diagram Reference: 17
