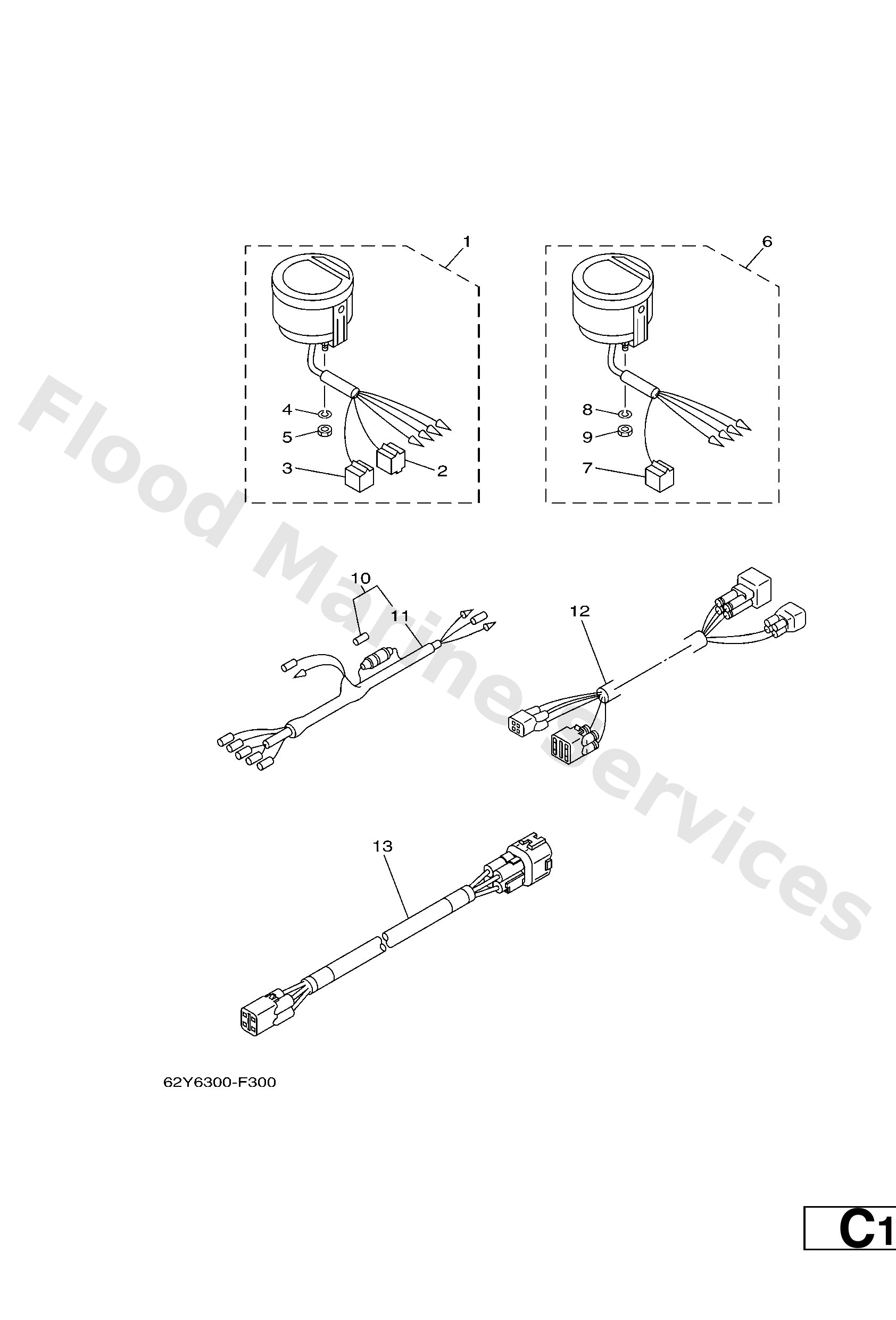

Diagram: METER

Diagram

Parts List

6Y58350T03 (AP F50A)

Digital tachometer assembly

Diagram Reference: 1

9E45004433 (M-4-W)

Housing, connector (m-4-w)

Diagram Reference: 2

9E45004533 (F-4-W)

Housing, f-4-w(5pcs)

Diagram Reference: 3

9299004100

Ybs67-4 washer, spring

Diagram Reference: 4

9538004600

Nut,hex

Diagram Reference: 5

6Y58350T90 (AP FT50C)

Tachometer assembly

Diagram Reference: 6

6Y58355300 (AP)

Wire, lead (l=2.5m)

Diagram Reference: 10

1E68215100

Fuse (10a)

Diagram Reference: 11

68F8255370 (AP F50A)

Extension, wire lead (7m)

Diagram Reference: 12

6Y58365320 (AP FT50C 4P,7M)

Wire, lead

Diagram Reference: 13
