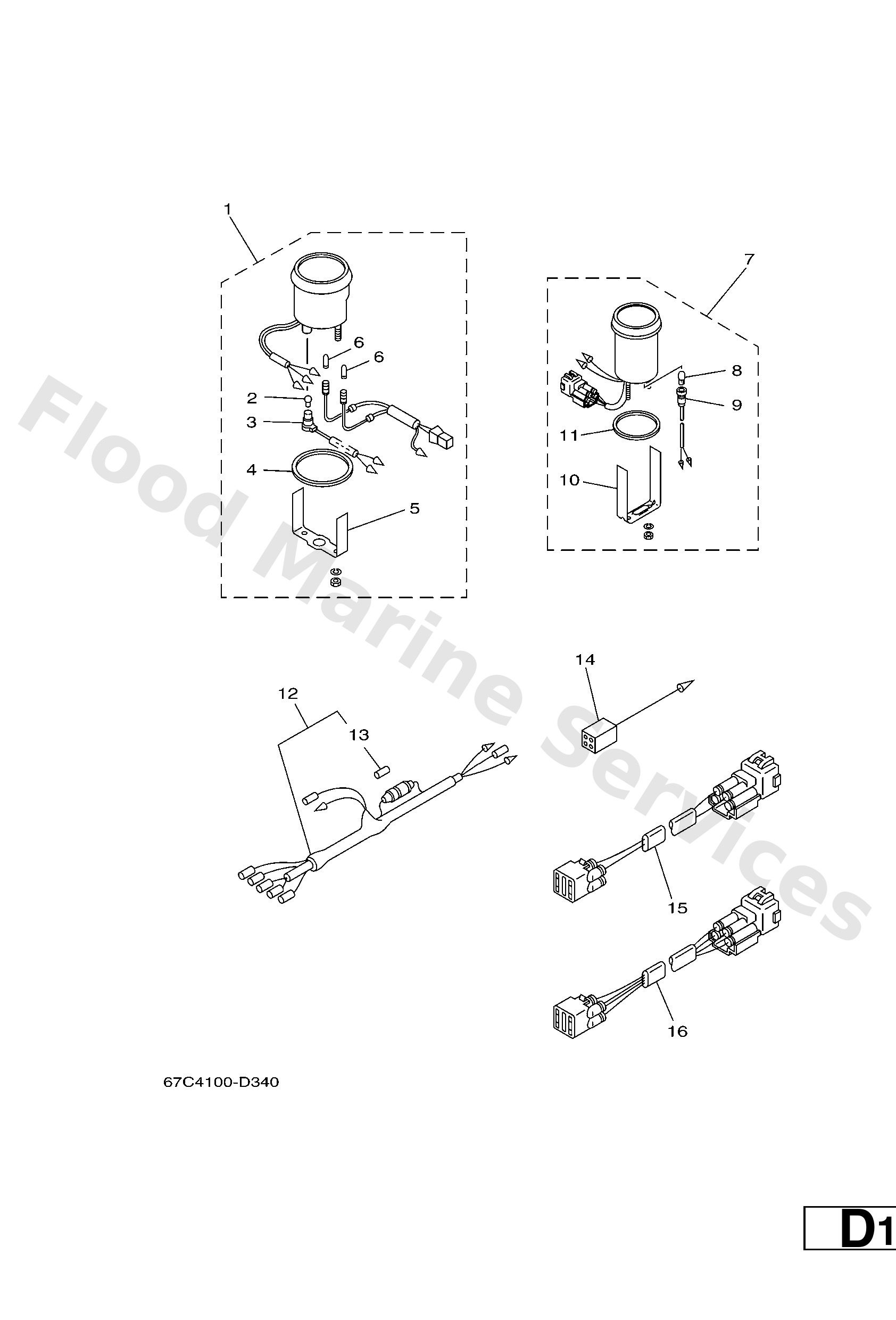

Diagram: METER 1

Diagram

Parts List

6Y78354040 (AP F40BET-CAR)
Tachometer assembly
Diagram Reference: 1
Get Part
6Y58351700
Bulb (12v-1.7w)
Diagram Reference: 2
Get Part
6Y58353640
Socket, meter
Diagram Reference: 3
Get Part
6Y58352300
Damper
Diagram Reference: 4
Get Part
6Y58351400
Plate, fitting
Diagram Reference: 5
Get Part
6Y58351800
Bulb (12v-1.7w) t6.5
Diagram Reference: 6
Get Part
6Y78367000 (AP F40BET-CAR)
Trim meter assembly.
Diagram Reference: 7
Get Part
6Y58353600
Socket, meter
Diagram Reference: 9
Get Part
6Y58354400
Plate, fitting
Diagram Reference: 10
Get Part
6888366400
Damper
Diagram Reference: 11
Get Part
6Y58355300 (AP F40BET-CAR)
Wire, lead (l=2.5m)
Diagram Reference: 12
Get Part
1E68215100
Fuse (10a)
Diagram Reference: 13
Get Part
6Y58211700 (AP F40BET-CAR)
Wire, lead
Diagram Reference: 14
Get Part
6R38252170 (AP F40BET-CAR)
Wire, lead (for tacho., 7m)
Diagram Reference: 15
Get Part
6R38255370 (AP F40BET-CAR 4P,7M)
Extension, wire lead (for trim
Diagram Reference: 16
Get Part
