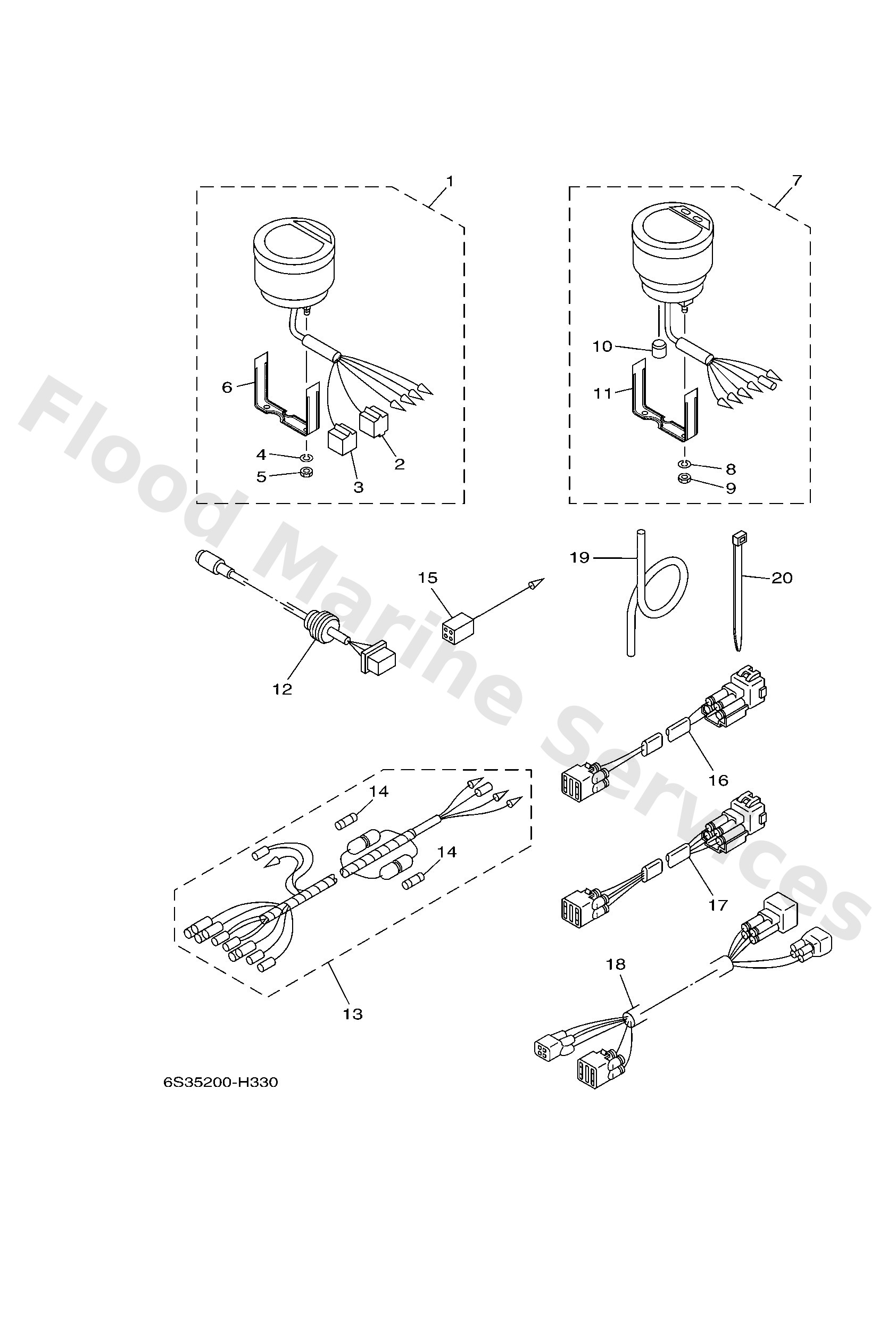

Diagram: METER 1

Diagram

Parts List

6Y58350T03 (AP)

Digital tachometer assembly

Diagram Reference: 1

9E45004433 (M-4-W)

Housing, connector (m-4-w)

Diagram Reference: 2

9E45004533 (F-4-W)

Housing, f-4-w(5pcs)

Diagram Reference: 3

9299004100

Ybs67-4 washer, spring

Diagram Reference: 4

9538004600

Nut,hex

Diagram Reference: 5

6Y58355XT1

Bracket, meter 1

Diagram Reference: 6

6Y583570S5 (AP EXCEPT CHN)

Speedometer assembly

Diagram Reference: 7

6Y583533T2

Grommet

Diagram Reference: 10

6Y587122S0 (AP EXCEPT CHN)

Cord assembly 1

Diagram Reference: 12

6Y583553M0 (AP EXCEPT CHN)

Wire, lead (l=2.5m)

Diagram Reference: 13

6Y58355300 (AP CHN)

Wire, lead (l=2.5m)

Diagram Reference: 13

1E68215100 (FOR 6Y5-83553-M0)

Fuse (10a)

Diagram Reference: 14

6Y58211700 (AP EXCEPT CHN)

Wire, lead

Diagram Reference: 15

6R38252170 (AP CAR,CHN,MEX 4P,7M)

Wire, lead (for tacho., 7m)

Diagram Reference: 16

6R38255370 (AP CAR,CHN,MEX (4P))

Extension, wire lead (for trim

Diagram Reference: 17

68F8255380 (AP EXCEPT CAR,CHN,MEX)

Extension, wire lead (8m)

Diagram Reference: 18

6Y58355700 (AP CAR,MEX)

Tube (8m)

Diagram Reference: 19

6Y58355710 (AP EXCEPT CAR,CHN,MEX)

Tube (8m)

Diagram Reference: 19

9046511M10 (AP EXCEPT CHN)

Clamp

Diagram Reference: 20
