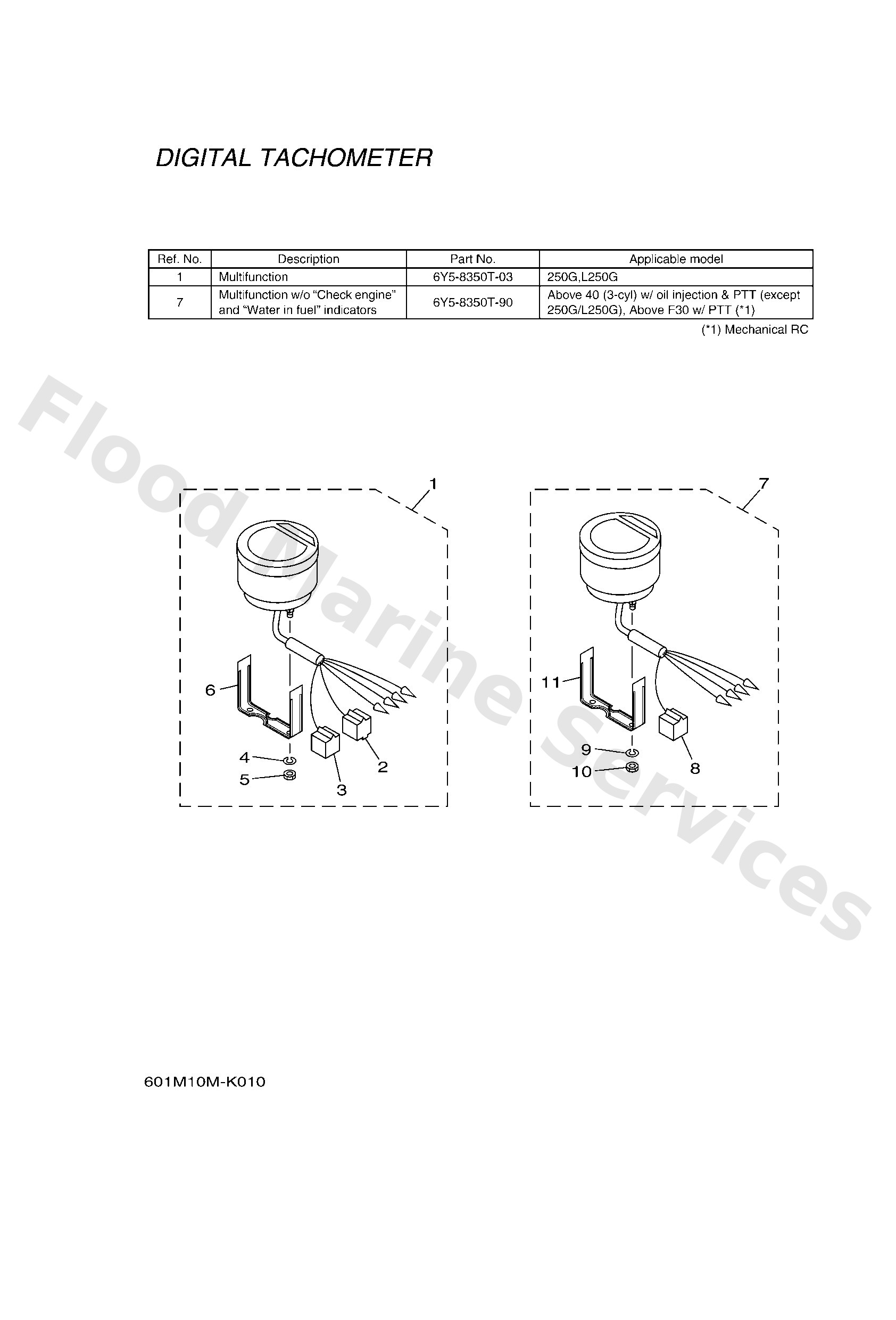

Diagram: METER 1

Diagram

Parts List

6Y58350T03
Digital tachometer assembly
Diagram Reference: 1
Get Part
9E45004433 (M-4-W)
Housing, connector (m-4-w)
Diagram Reference: 2
Get Part
9E45004533 (F-4-W)
Housing, f-4-w(5pcs)
Diagram Reference: 3
Get Part
9299004100
Ybs67-4 washer, spring
Diagram Reference: 4
Get Part
9538004600
Nut,hex
Diagram Reference: 5
Get Part
6Y58355XT1
Bracket, meter 1
Diagram Reference: 6
Get Part
6Y58350T90
Tachometer assembly
Diagram Reference: 7
Get Part
