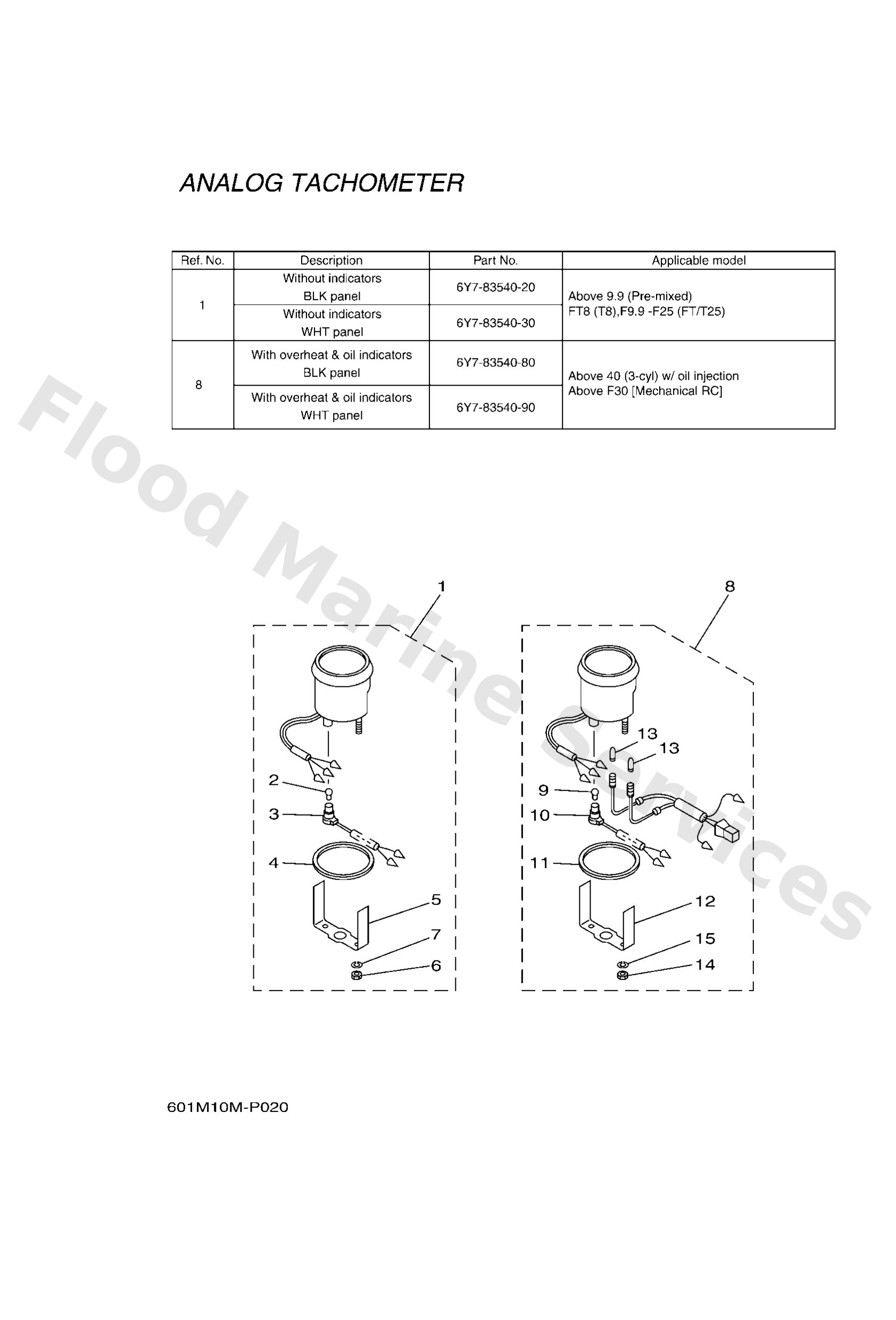

Diagram: METER 2

Diagram

Parts List

6Y78354030 (UR WITHOUT OIL LAMP)

Tachometer assembly

Diagram Reference: 1

6Y78354020 (UR WITHOUT OIL LAMP)

Tachometer assembly

Diagram Reference: 1

6Y58351700

Bulb (12v-1.7w)

Diagram Reference: 2

6Y58353640 (FOR 6Y7-83540-20)

Socket, meter

Diagram Reference: 3

6Y58353610 (FOR 6Y7-83540-30)

Socket, meter

Diagram Reference: 3

6Y58352300

Damper

Diagram Reference: 4

6Y58351400

Plate, fitting

Diagram Reference: 5

9538005600

Nut, hexagon (663)

Diagram Reference: 6

9299005100

Ybs67-5 washer, spring

Diagram Reference: 7

6Y78354090 (UR WITH OIL/TEMP LAMP)

Tachometer assembly

Diagram Reference: 8

6Y78354080 (UR WITH OIL/TEMP LAMP)

Tachometer assembly

Diagram Reference: 8

6Y58351800

Bulb (12v-1.7w) t6.5

Diagram Reference: 13
