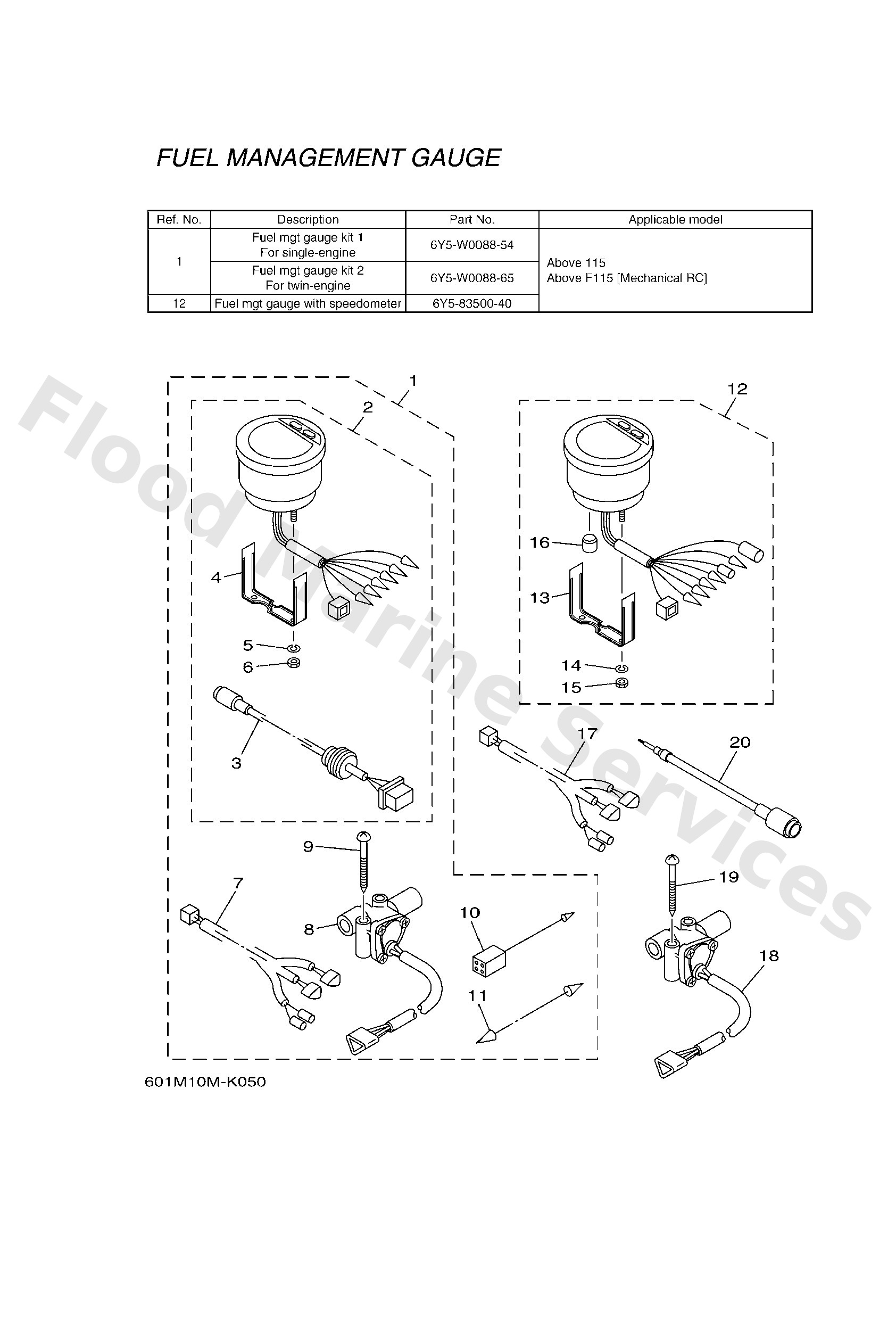

Parts List
Digital Fuel Meter Kit (Twin)
Diagram Reference: 1
Digital fuel meter kit (single
Diagram Reference: 1
Fuel meter movement assembly
Diagram Reference: 2
Cord assembly 1
Diagram Reference: 3
Bracket, meter 1
Diagram Reference: 4
Ybs67-4 washer, spring
Diagram Reference: 5
Nut,hex
Diagram Reference: 6
Wire, lead
Diagram Reference: 17
Sender unit assembly, fuel meter
Diagram Reference: 8
Screw, wood
Diagram Reference: 9
Wire, lead
Diagram Reference: 10
Wire, lead
Diagram Reference: 11
Meter assembly
Diagram Reference: 12
Grommet
Diagram Reference: 16
Wire, lead
Diagram Reference: 20
