Rigging - Meter (2024)
METER 6

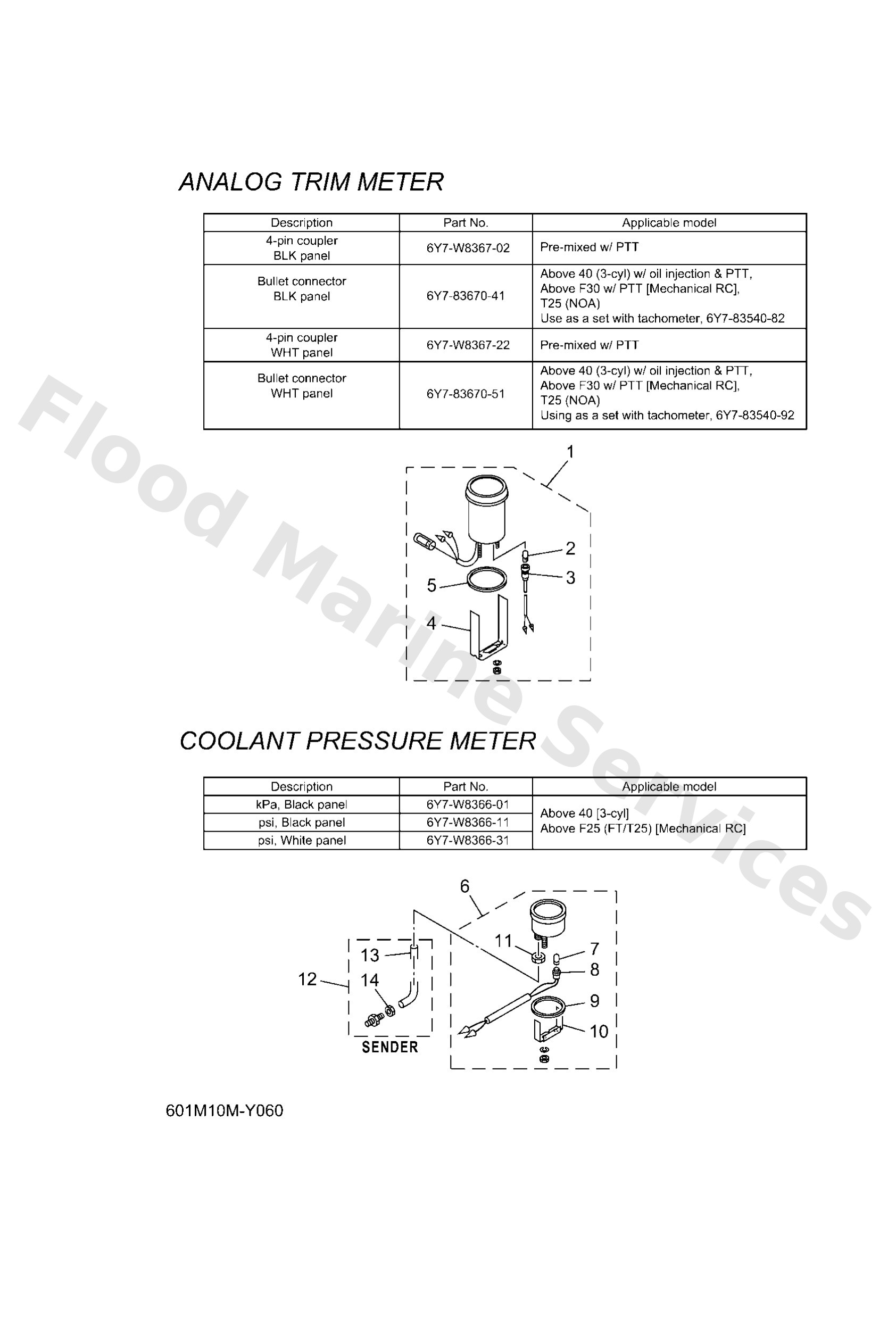

Diagram: METER 6
Parts List
Reference
Description
Price
1
6Y78367041
UR
Trim Meter assembly.
Loading…
↗
1
6Y7W836722
UR
Trim Meter assembly.
Loading…
↗
1
6Y78367051
UR
Trim Meter assembly.
Loading…
↗
1
6Y7W836702
UR
Trim meter assembly.
Loading…
↗
2
6Y58351800
Bulb (12v-1.7w) t6.5
Loading…
↗
3
6Y58353600
Socket, meter
Loading…
↗
4
6Y58354400
Plate, fitting
Loading…
↗
5
6888366400
Damper
Loading…
↗
6
6Y7W836601
UR
Water pressure meter assembly
Loading…
↗
6
6Y7W836631
UR
Water Pressure Meter assembly
Loading…
↗
6
6Y7W836611
UR
Water Pressure Meter assembly
Loading…
↗
10
6888366500
Plate, fitting
Loading…
↗
11
6638366800
Nut, nipple
Loading…
↗
12
6888366701
Sender
Loading…
↗
13
6888366600
Tube
Loading…
↗
14
6638366810
Nut, nipple
Loading…
↗
