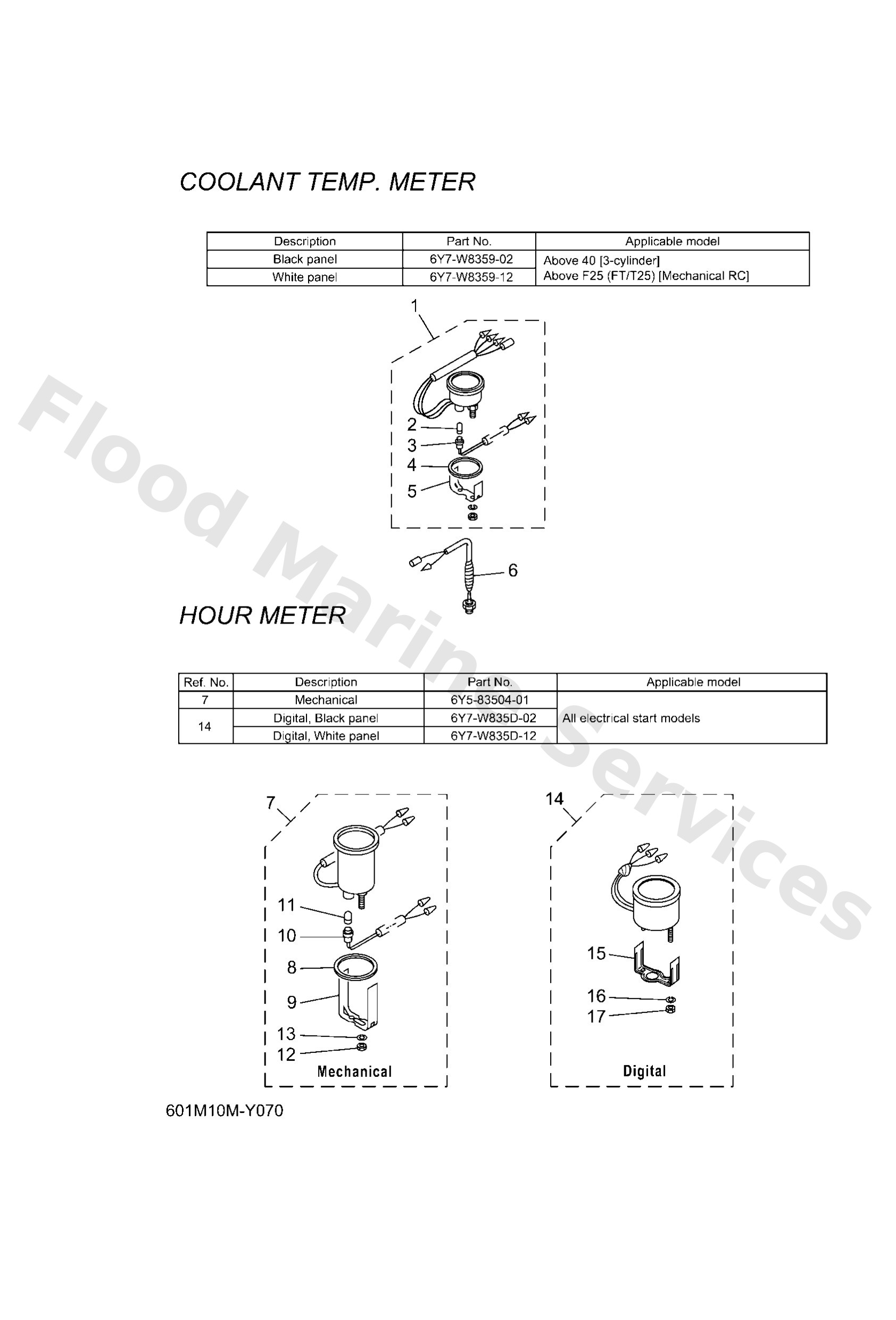

Diagram: METER 7

Diagram

Parts List

6Y7W835912 (UR)
Water Temperature assembly
Diagram Reference: 1
Get Part
6Y7W835902 (UR)
Water Temperature assembly
Diagram Reference: 1
Get Part
6Y58351800
Bulb (12v-1.7w) t6.5
Diagram Reference: 2
Get Part
6Y58353600
Socket, meter
Diagram Reference: 3
Get Part
6888366400
Damper
Diagram Reference: 4
Get Part
6Y58354400
Plate, fitting
Diagram Reference: 5
Get Part
6888359100
Thermo unit
Diagram Reference: 6
Get Part
6Y58350401
Hour meter assembly
Diagram Reference: 7
Get Part
6Y58357700
Plate, fitting
Diagram Reference: 9
Get Part
9530304600
Nut, hexagon (663)
Diagram Reference: 12
Get Part
9299004100
Ybs67-4 washer, spring
Diagram Reference: 13
Get Part
6Y7W835D12 (UR)
Hour Meter assembly
Diagram Reference: 14
Get Part
6Y7W835D02 (UR)
Hour Meter assembly
Diagram Reference: 14
Get Part
6Y58355XH0
Bracket, meter 1
Diagram Reference: 15
Get Part
9538004600
Nut,hex
Diagram Reference: 17
Get Part
