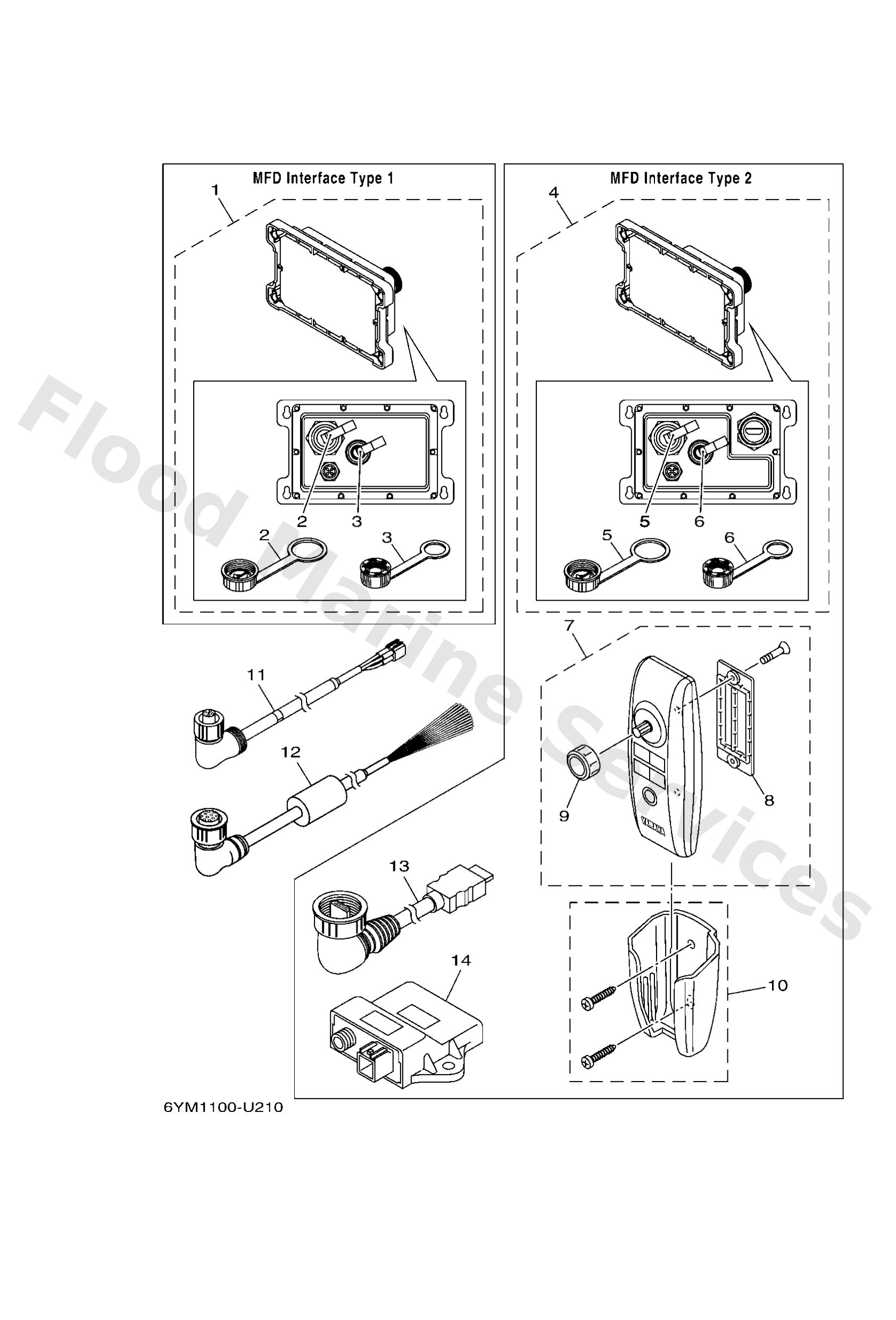

Diagram: MFD INTERFACE

Diagram

Parts List

6YM8A2D011 (COMPATIBLE GARMIN MFD)
Mfd Interface
Diagram Reference: 1
Get Part
6YM8395600
Cap 1
Diagram Reference: 2
Get Part
6YD8395700
Cap 2
Diagram Reference: 3
Get Part
6YM8A2D004 (OTHER COMPATIBLE MFD WITH Wi-F)
Mfd Interface
Diagram Reference: 4
Get Part
6YM8626101 (FOR 6YM-8A2D0-04 WITH Wi-Fi)
Xmtr. Comp.
Diagram Reference: 7
Get Part
6YM8212900
Cover, Battery
Diagram Reference: 8
Get Part
6YM8432M00
-
Diagram Reference: 9
Get Part
6YM60BJ000
Cradle assembly
Diagram Reference: 10
Get Part
6YM8355310
Wire, lead
Diagram Reference: 11
Get Part
6YM8356N00
Wire, lead
Diagram Reference: 12
Get Part
6YM8533A00 (FOR OTHER COMPATIBLE MFD)
-
Diagram Reference: 13
Get Part
6YG8A2D013 (FOR OTHER COMPATIBLE MFD)
Gateway
Diagram Reference: 14
Get Part
