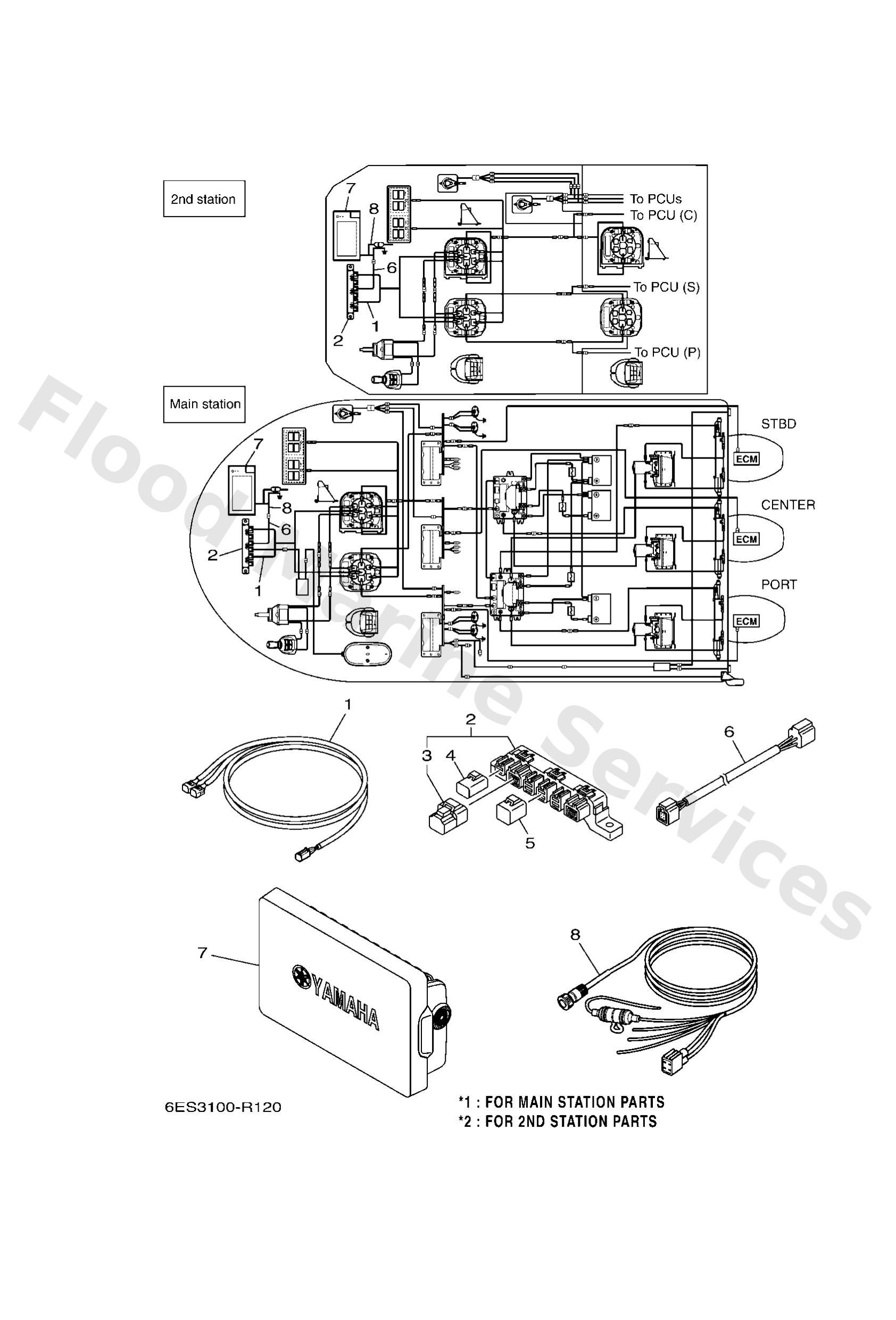

Diagram: MULTI DISPLAY (TRIPLE)

Diagram

Parts List

6ES8355371
Remote ctr-hub harness, 3&4
Diagram Reference: 1
Get Part
6Y88192001
Multi-hub
Diagram Reference: 2
Get Part
6Y88537101
End of line resister
Diagram Reference: 3
Get Part
6Y88258201
Red cap 1 (2pin)
Diagram Reference: 4
Get Part
6Y88258211 (*1)
White cap 1 (4pin)
Diagram Reference: 5
Get Part
6Y88252111
Pigtail bus wire 0.6m-2ft
Diagram Reference: 6
Get Part
6YD8371000 (REFER TO FIG.10)
Cl7 Display
Diagram Reference: 7
Get Part
6YD8355300
Wire, lead
Diagram Reference: 8
Get Part
