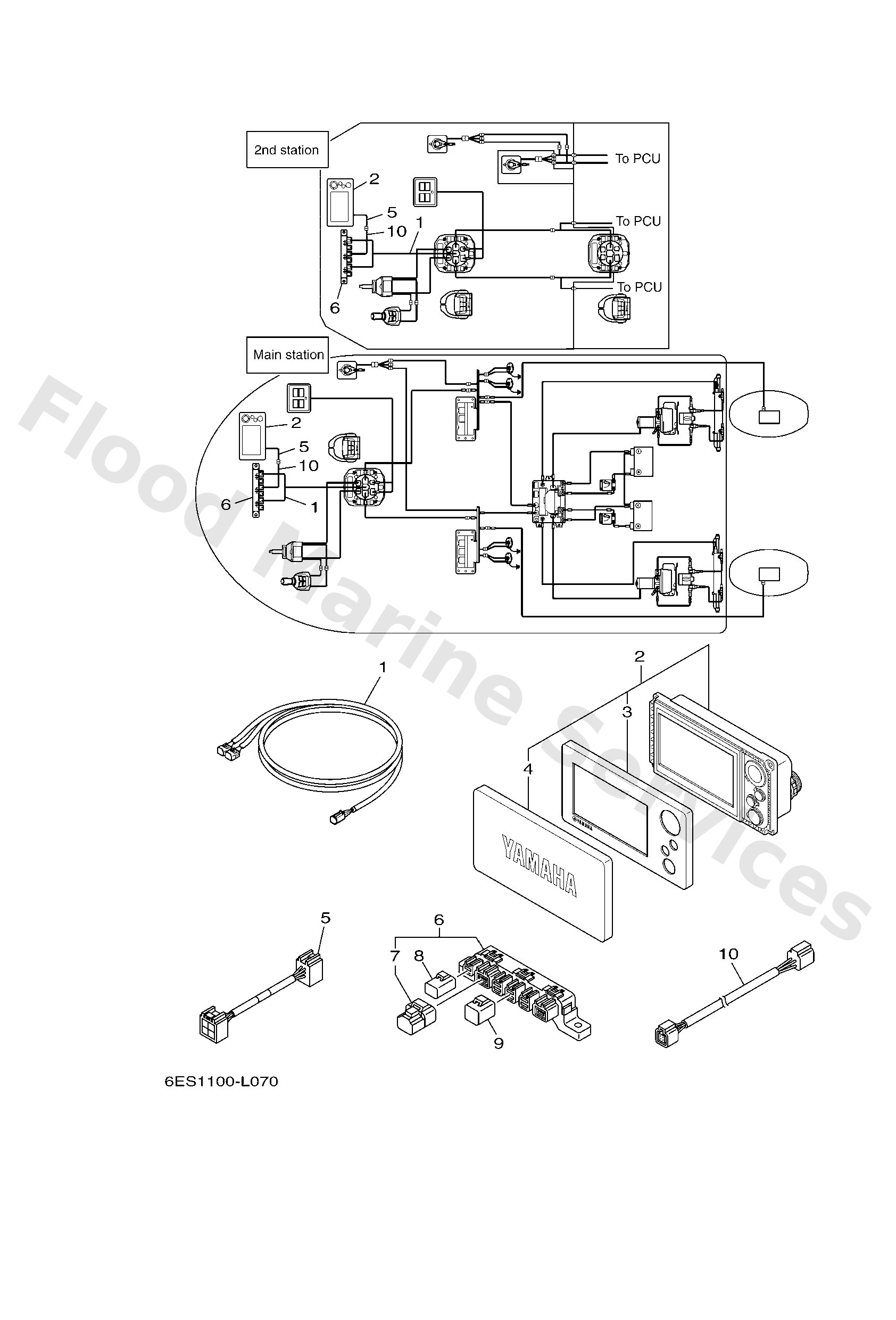

Diagram: MULTI DISPLAY (TWIN)

Diagram

Parts List

6ES8355360
Remote Ctr-Hub Harness, Twin
Diagram Reference: 1
Get Part
6Y98371010
Multi display assembly
Diagram Reference: 2
Get Part
6Y98351200
Cover, front
Diagram Reference: 3
Get Part
6Y98727800
Cover, meter
Diagram Reference: 4
Get Part
6Y98355340
Wire, lead
Diagram Reference: 5
Get Part
6Y88192001
Multi-hub
Diagram Reference: 6
Get Part
6Y88537101
End of line resister
Diagram Reference: 7
Get Part
6Y88258201
Red cap 1 (2pin)
Diagram Reference: 8
Get Part
6Y88258211
White cap 1 (4pin)
Diagram Reference: 9
Get Part
6Y88252111
Pigtail bus wire 0.6m-2ft
Diagram Reference: 10
