115BETO (2001)
Meter

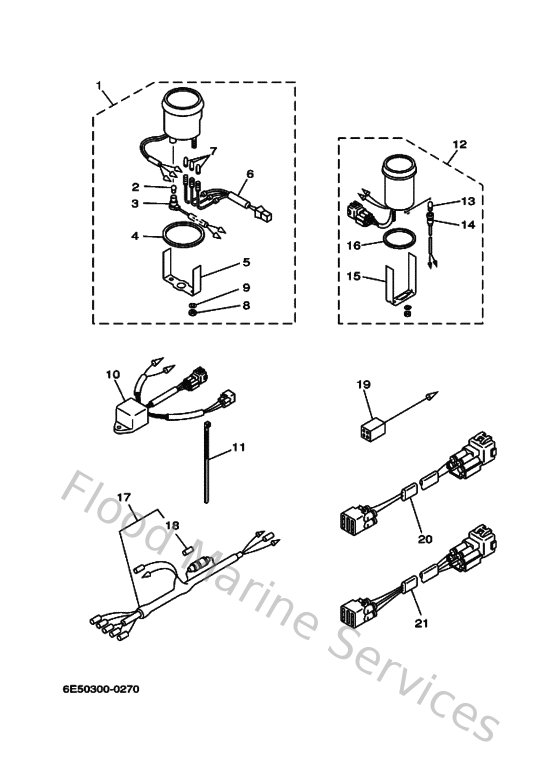

Diagram: Meter
Parts List
Reference
Description
Price
1
6Y5835400500
Tachometer assembly
Loading…
↗
2
6Y5835170000
Bulb (12v-1.7w)
Loading…
↗
3
6Y5835361000
Socket, meter
Loading…
↗
4
6Y5835230000
Damper
Loading…
↗
5
6Y5835140000
Plate, fitting
Loading…
↗
6
6Y5835090300
Socket cord assembly
Loading…
↗
7
3FV835170000
Bulb (12v-1.7w) t6.5
Loading…
↗
8
953030560000
Nut, hexagon (663)
Loading…
↗
9
929030510000
Ybs67-5 washer, spring
Loading…
↗
10
6Y5819500200
Relay assembly
Loading…
↗
11
9046513M3000
Clamp
Loading…
↗
12
6Y5836701200
Trim meter assembly.
Loading…
↗
13
6Y5835180000
Bulb (12v-1.7w) t6.5
Loading…
↗
14
6Y5835360000
Socket, meter
Loading…
↗
15
6Y5835440000
Plate, fitting
Loading…
↗
16
688836640000
Damper
Loading…
↗
17
6Y5835530000
Wire, lead (l=2.5m)
Loading…
↗
18
1E6821510000
Fuse (10a)
Loading…
↗
19
6Y5821170000
Wire, lead
Loading…
↗
20
6R3825217000
Wire, lead (for tacho., 7m)
Loading…
↗
21
6R3825537000
Extension, wire lead (for trim
