225GETOL (1999)
Meter

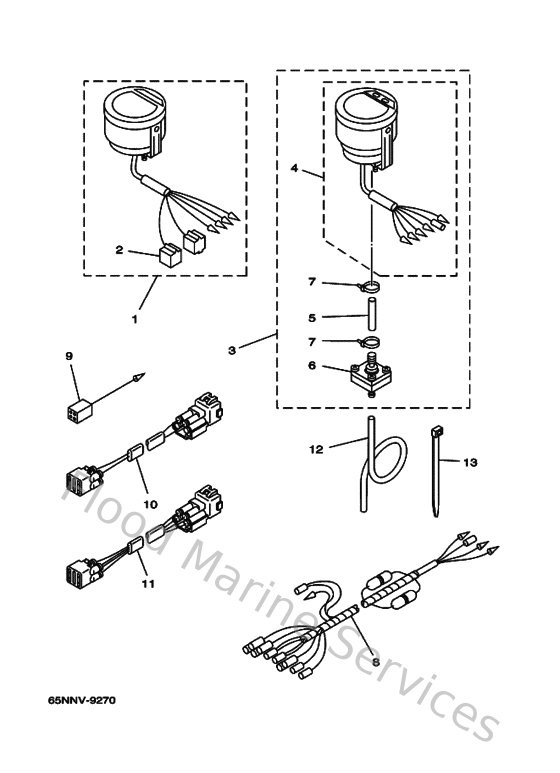

Diagram: Meter
Parts List
Reference
Description
Price
1
6Y583500T100
Digital tachometer assembly
Loading…
↗
2
9E4500443300
Housing, connector (m-4-w)
Loading…
↗
3
6Y583570A000
Speedometer assembly
Loading…
↗
4
6Y583570S400
Speedometer assembly
Loading…
↗
5
6Y5835573100
Tube
Loading…
↗
6
6Y5837280000
Connector assembly
Loading…
↗
7
904651009800
Clamp
Loading…
↗
8
6Y583553M000
Wire, lead (l=2.5m)
Loading…
↗
9
6Y5821170000
Wire, lead
Loading…
↗
10
6R3825217000
Wire, lead (for tacho., 7m)
Loading…
↗
11
6R3825537000
Extension, wire lead (for trim
Loading…
↗
12
6Y5835570000
Tube (8m)
Loading…
↗
13
9046511M1000
Clamp
Loading…
↗
