80AETOL (2001)
Meter

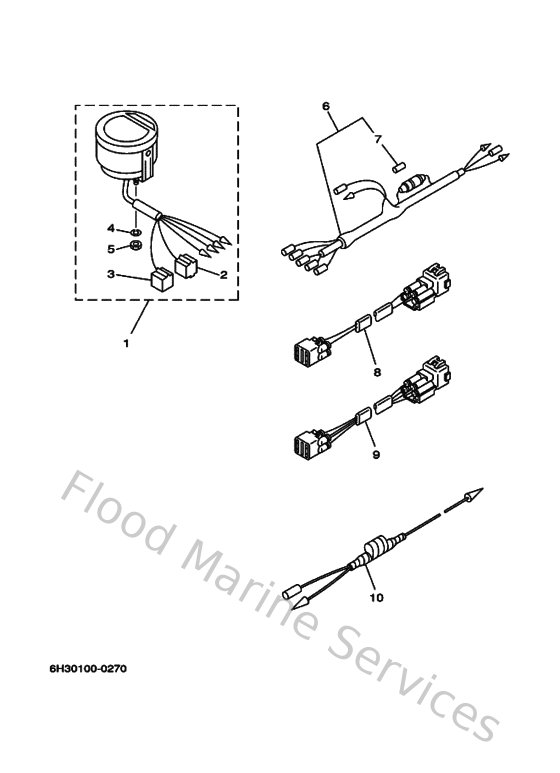

Diagram: Meter
Parts List
Reference
Description
Price
1
6Y583500T200
Digital tachometer assembly
Loading…
↗
2
9E4500443300
Housing, connector (m-4-w)
Loading…
↗
3
9E4500453300
Housing, f-4-w(5pcs)
Loading…
↗
4
929900410000
Ybs67-4 washer, spring
Loading…
↗
5
953030460000
Nut, hexagon (663)
Loading…
↗
6
6Y5835530000
Wire, lead (l=2.5m)
Loading…
↗
7
1E6821510000
Fuse (10a)
Loading…
↗
8
6R3825217000
Wire, lead (for tacho., 7m)
Loading…
↗
9
6R3825537000
Extension, wire lead (for trim
Loading…
↗
10
6H4813151100
Lead wire assembly
Loading…
↗
