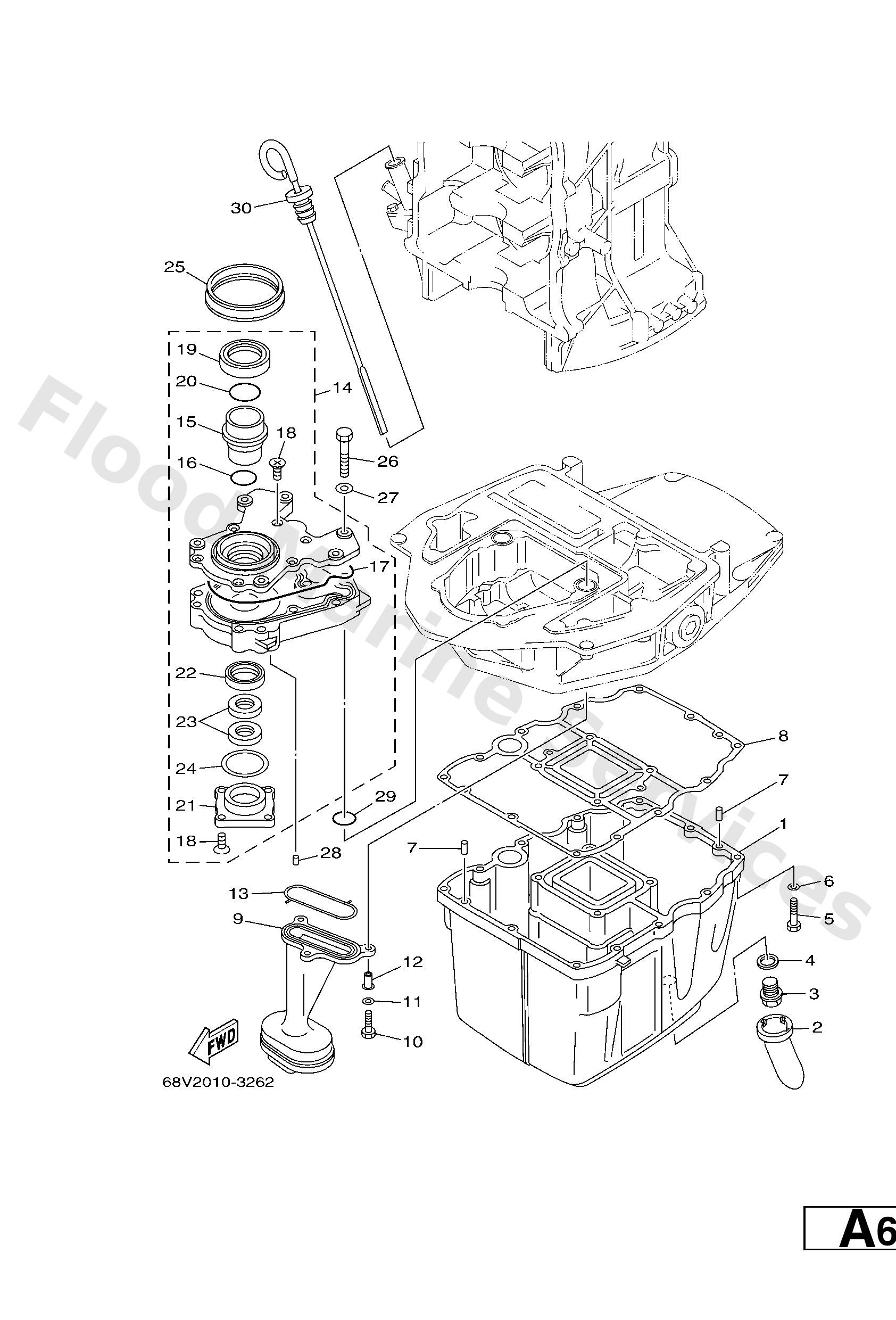

Diagram: OIL PAN

Diagram

Parts List

68V15311005B
Oil pan
Diagram Reference: 1
Get Part
63P1531600
Damper 1
Diagram Reference: 2
Get Part
9034014M06
Plug, straight screw(62y)
Diagram Reference: 3
Get Part
9043014M09
Gasket
Diagram Reference: 4
Get Part
9707506025
Bolt
Diagram Reference: 5
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 6
Get Part
9360612019
Pin, dowel (614)
Diagram Reference: 7
Get Part
68V1531200
Gasket, oil pan
Diagram Reference: 8
Get Part
67F1341100
Strainer, oil
Diagram Reference: 9
Get Part
9702706025
Bolt, hexagon
Diagram Reference: 10
Get Part
9290706600
Washer(6ta)
Diagram Reference: 11
Get Part
9038706M64
Collar
Diagram Reference: 12
Get Part
67F1341500
Seal, oil strainer
Diagram Reference: 13
Get Part
67F1330010
Oil pump assembly
Diagram Reference: 14
Get Part
67F1331402
Shaft, pump
Diagram Reference: 15
Get Part
67F1347301
O-ring
Diagram Reference: 16
Get Part
67F1332900
Gasket, pump cover
Diagram Reference: 17
Get Part
67F1349500
Screw
Diagram Reference: 18
Get Part
67F1311901
Oil seal
Diagram Reference: 19
Get Part
67F1376900
O-ring
Diagram Reference: 20
Get Part
67F1391400
Housing, pump
Diagram Reference: 21
Get Part
67F1363103
Oil seal
Diagram Reference: 22
Get Part
67F1314900
Oil seal
Diagram Reference: 23
Get Part
67F1333900
Gasket, pump cover
Diagram Reference: 24
Get Part
67F1333800
Seal
Diagram Reference: 25
Get Part
9709506045
Bolt, hexagon
Diagram Reference: 26
Get Part
9360412M07
Pin, dowel (688)
Diagram Reference: 28
Get Part
9321019MJ1
O-ring
Diagram Reference: 29
Get Part
6D81536200
Plug, oil level
Diagram Reference: 30
Get Part
