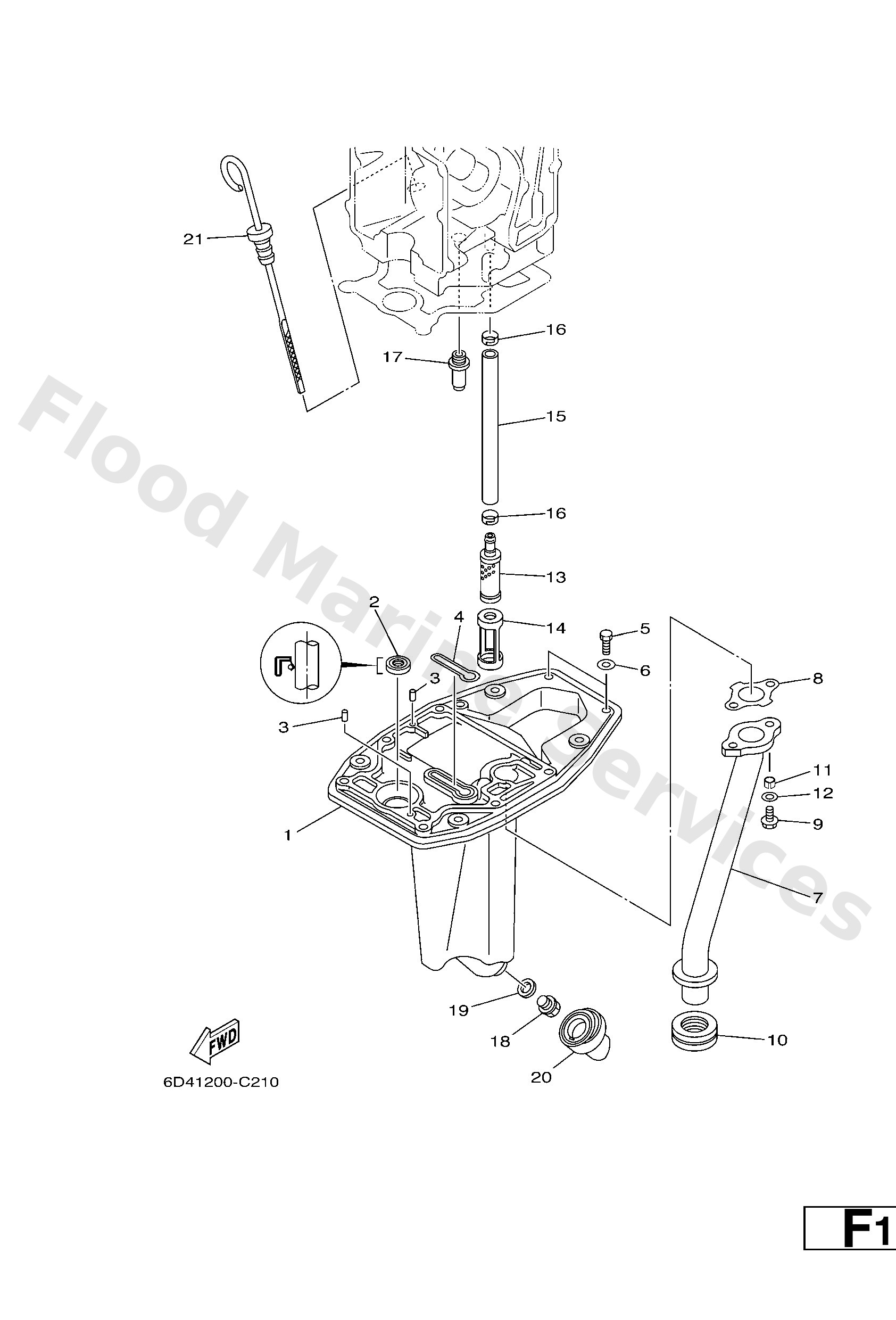

Diagram: OIL PAN

Diagram

Parts List

66M41137005B
Guide, exhaust
Diagram Reference: 1
Get Part
9310112M63
Oil seal
Diagram Reference: 2
Get Part
9360612019
Pin, dowel (614)
Diagram Reference: 3
Get Part
66M1135500
Seal, cylinder 1
Diagram Reference: 4
Get Part
9709506020
Bolt(7u8)
Diagram Reference: 5
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 6
Get Part
6D4411310094
Manifold, Ext. 1
Diagram Reference: 7
Get Part
66M4113301
Gasket, exhaust manifold 1
Diagram Reference: 8
Get Part
9011906090
Bolt, With Washer
Diagram Reference: 9
Get Part
6D44113800
Seal, ext. 1
Diagram Reference: 10
Get Part
9038705008
-
Diagram Reference: 11
Get Part
9020106015
Washer, plate
Diagram Reference: 12
Get Part
66M1342100
Strainer 2
Diagram Reference: 13
Get Part
66M1341700
Cover, Strainer
Diagram Reference: 14
Get Part
66M1341600
Pipe, Oil 1
Diagram Reference: 15
Get Part
66M2435100
Band 1
Diagram Reference: 16
Get Part
6G81157500
Relief valve ass'y
Diagram Reference: 17
Get Part
9034014M06
Plug, straight screw(62y)
Diagram Reference: 18
Get Part
9043014M09
Gasket
Diagram Reference: 19
Get Part
66M1531600
Damper, Engine Mount 1
Diagram Reference: 20
Get Part
66M1536200
Plug, Oil Level
Diagram Reference: 21
Get Part
