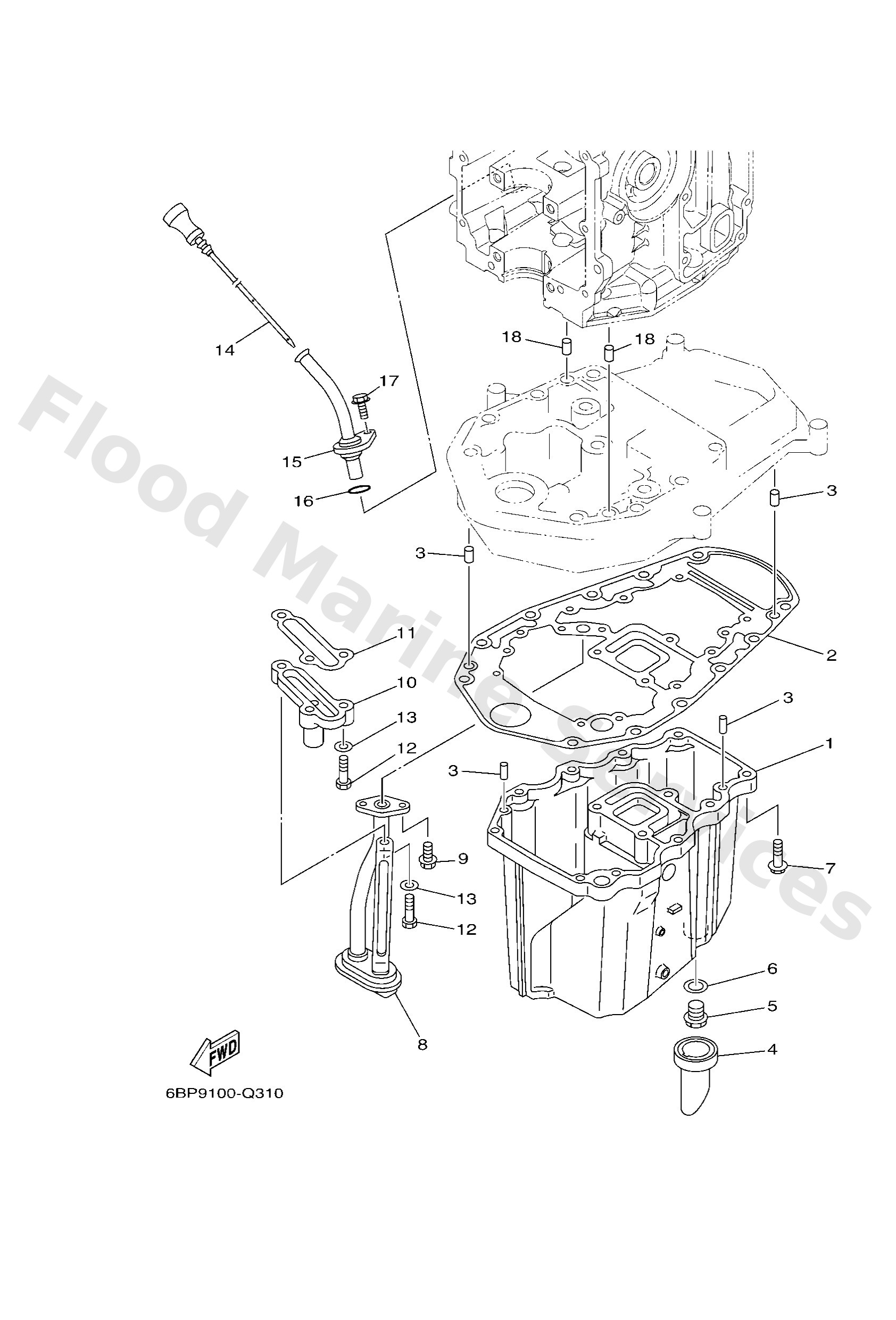

Parts List
Oil pan
Diagram Reference: 1
Gasket, oil pan
Diagram Reference: 2
Pin, dowel (614)
Diagram Reference: 3
Damper 1
Diagram Reference: 4
Plug, straight screw(62y)
Diagram Reference: 5
Gasket
Diagram Reference: 6
Bolt, hexagon w/w deep recess
Diagram Reference: 7
Strainer, oil
Diagram Reference: 8
Bolt, hexagon deep recess
Diagram Reference: 9
Body, relief
Diagram Reference: 10
Gasket
Diagram Reference: 11
Bolt(62y)
Diagram Reference: 12
Washer, plain (646)
Diagram Reference: 13
Plug, oil level
Diagram Reference: 14
Guide, inlet
Diagram Reference: 15
O-ring
Diagram Reference: 16
Bolt, flange deep recess
Diagram Reference: 17
Pin, dowel b (6e5)
Diagram Reference: 18
