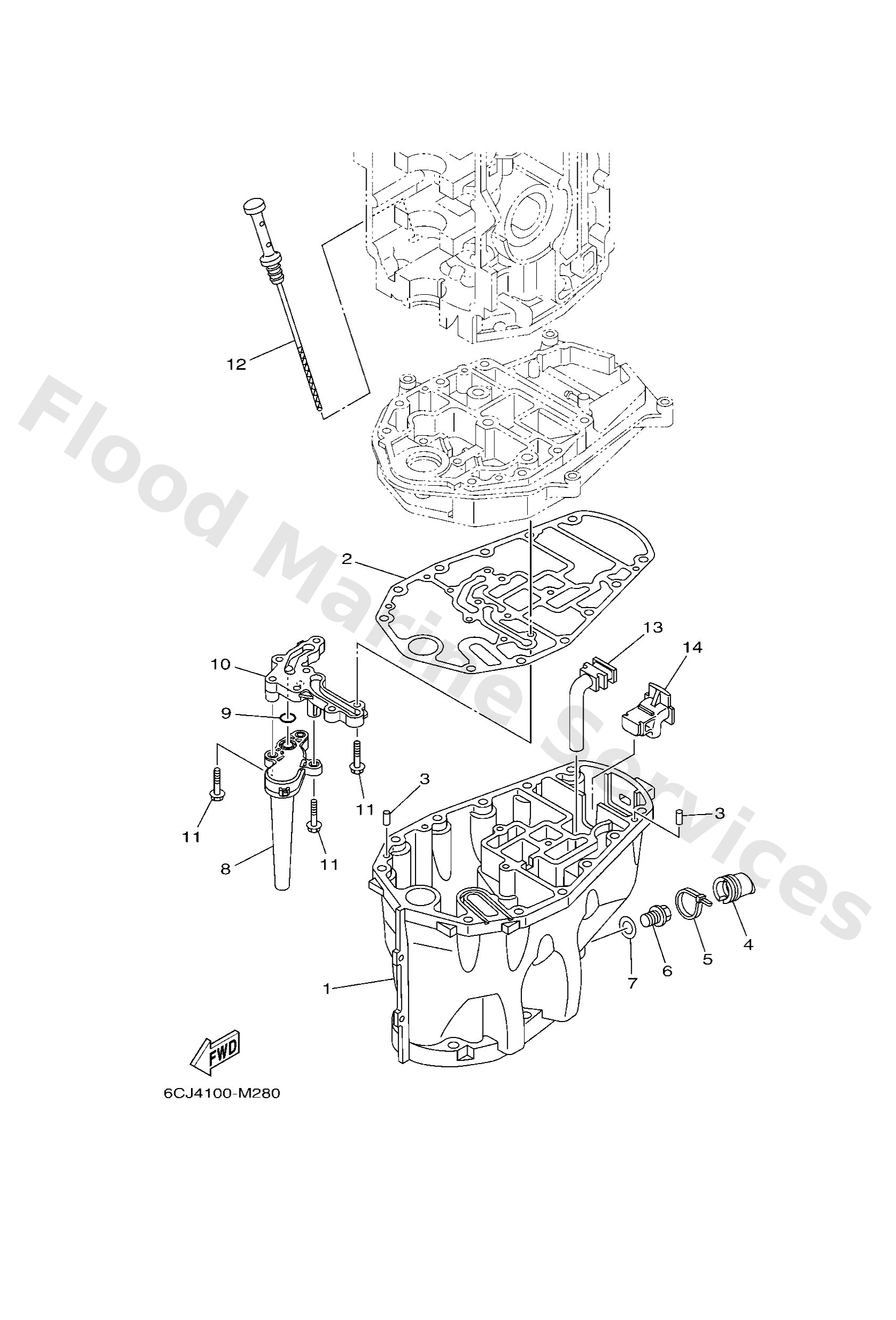

Diagram: OIL PAN

Diagram

Parts List

6C51531102
Oil pan
Diagram Reference: 1
Get Part
6C51531201
Gasket, oil pan
Diagram Reference: 2
Get Part
9360612019
Pin, dowel (614)
Diagram Reference: 3
Get Part
6CJ1531600
Damper 1
Diagram Reference: 4
Get Part
9046511M59
Clamp(63m)
Diagram Reference: 5
Get Part
9034014M06
Plug, straight screw(62y)
Diagram Reference: 6
Get Part
9043014M09
Gasket
Diagram Reference: 7
Get Part
6CJ1341110
Strainer, oil
Diagram Reference: 8
Get Part
9321012790
O-ring(3ld)
Diagram Reference: 9
Get Part
6CJ1533310
Cover
Diagram Reference: 10
Get Part
9581206025
Bolt, flange
Diagram Reference: 11
Get Part
6C51536200
Plug, oil level
Diagram Reference: 12
Get Part
6C54513510
Pipe
Diagram Reference: 13
Get Part
6C54513610
Pipe
Diagram Reference: 14
