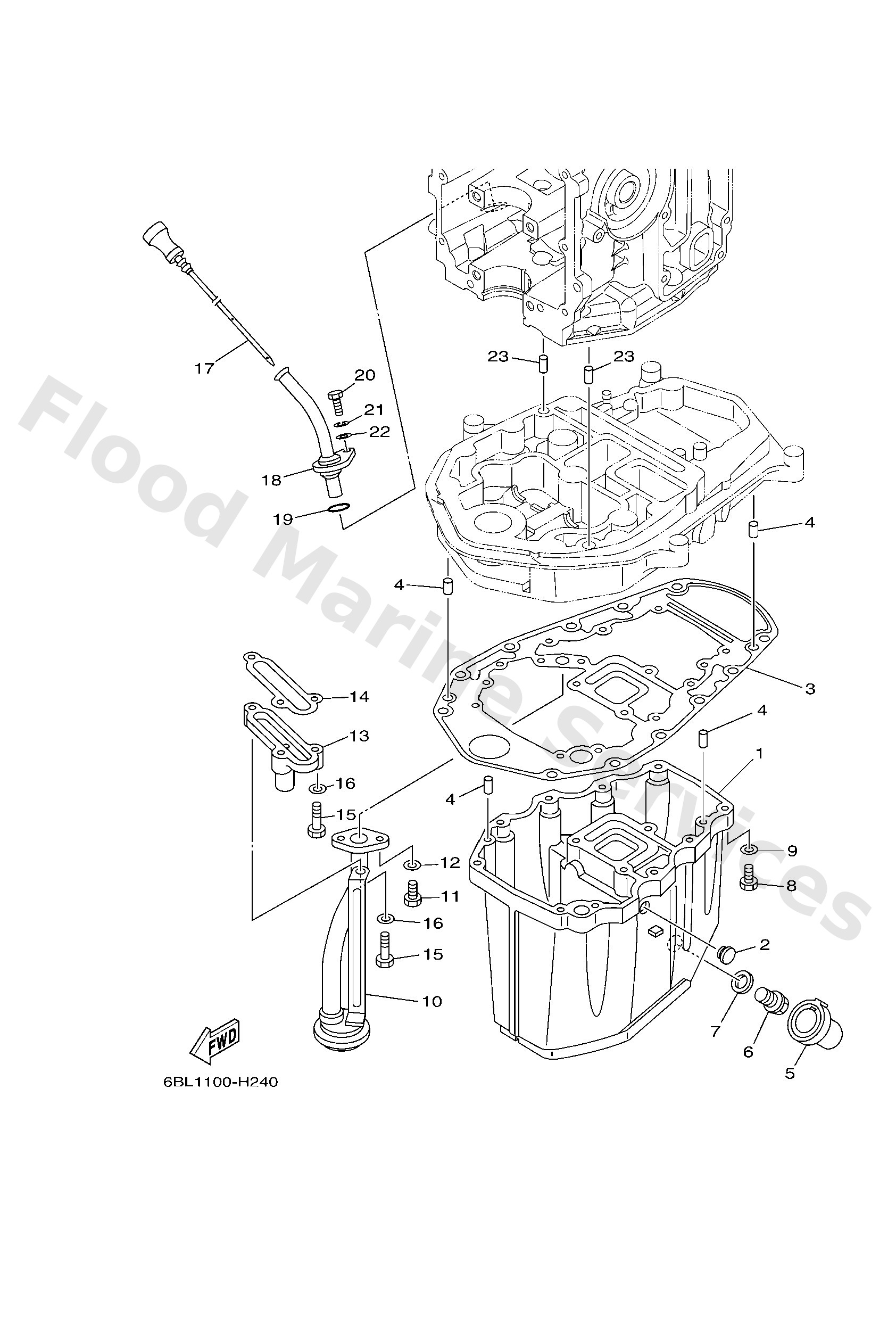

Diagram: OIL PAN

Diagram

Parts List

6BG15311005B
Oil pan
Diagram Reference: 1
Get Part
9048012M25
Grommet (6e9)
Diagram Reference: 2
Get Part
69W1531200
Gasket, oil pan
Diagram Reference: 3
Get Part
9360612019
Pin, dowel (614)
Diagram Reference: 4
Get Part
67C1531600
Damper 1
Diagram Reference: 5
Get Part
9034014M06
Plug, straight screw(62y)
Diagram Reference: 6
Get Part
9043014M09
Gasket
Diagram Reference: 7
Get Part
9707506025
Bolt
Diagram Reference: 8
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 9
Get Part
62Y1341100
Strainer, oil
Diagram Reference: 10
Get Part
9701306016
Bolt, hexagon deep recess
Diagram Reference: 11
Get Part
9290306600
Washer, plain (646)
Diagram Reference: 12
Get Part
6BG115760094
Body, relief
Diagram Reference: 13
Get Part
62Y1347500
Gasket
Diagram Reference: 14
Get Part
9701306025
Bolt(62y)
Diagram Reference: 15
Get Part
6BL1536200
Plug, oil level
Diagram Reference: 17
Get Part
6BL1537700
Guide, inlet
Diagram Reference: 18
Get Part
9321019MJ3
O-ring
Diagram Reference: 19
Get Part
9709506020
Bolt(7u8)
Diagram Reference: 20
Get Part
9299506100
Washer(6a1)
Diagram Reference: 21
Get Part
9360812M05
Pin, dowel b (6e5)
Diagram Reference: 23
