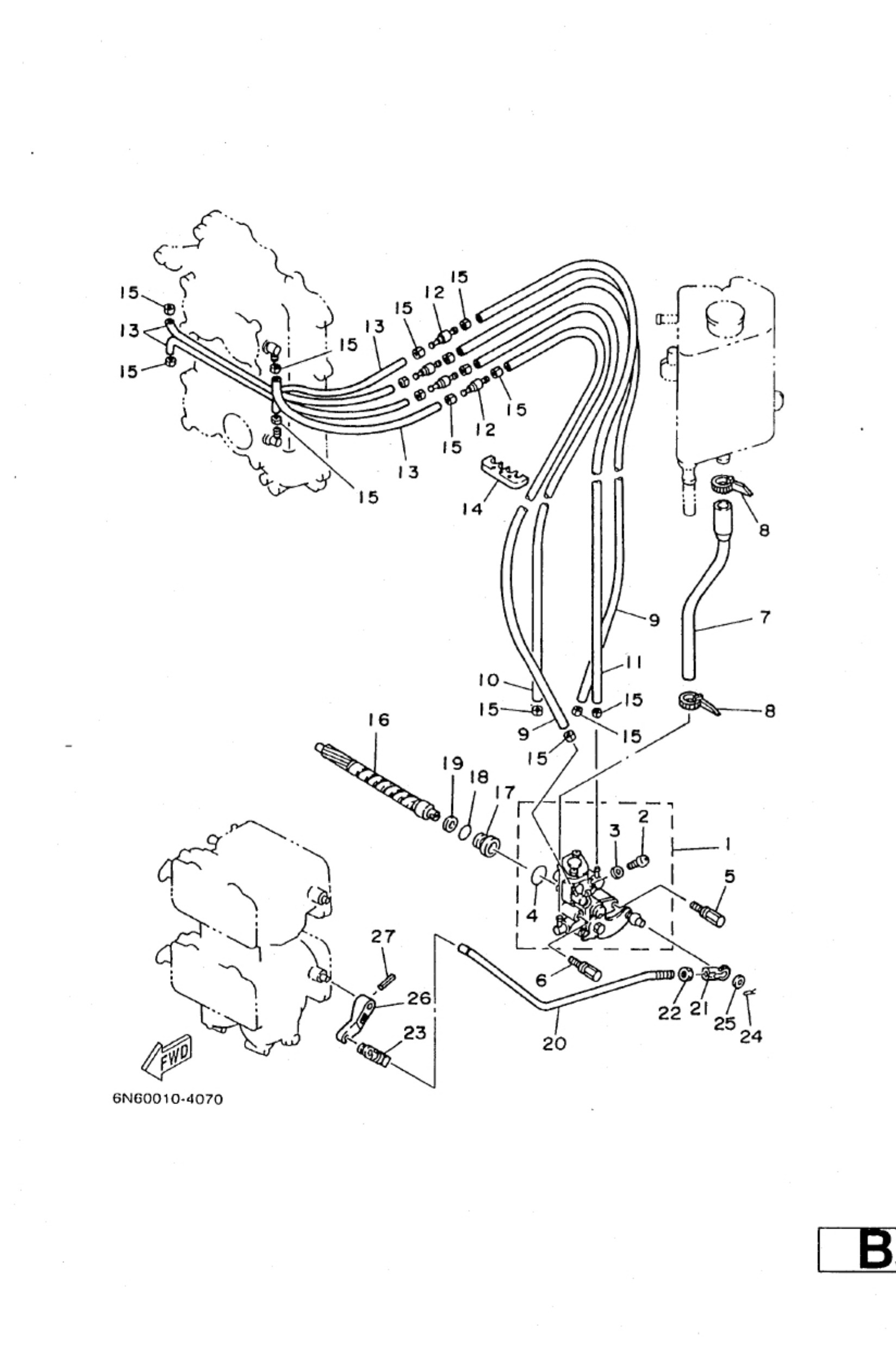

Diagram: OIL PUMP

Diagram

Parts List

6NB1320000
Oil Injection Pump assembly
Diagram Reference: 1
Get Part
6R31347100
Screw
Diagram Reference: 2
Get Part
6L21347500
Gasket, breather bolt
Diagram Reference: 3
Get Part
9321019MA7
O-ring(6r0)
Diagram Reference: 4
Get Part
9010906M39
Bolt(6h0)
Diagram Reference: 6
Get Part
6N71341600
Pipe, oil 1
Diagram Reference: 7
Get Part
6R31318310
Valve, check
Diagram Reference: 12
Get Part
6R31311700
Collar, distance
Diagram Reference: 17
Get Part
9321013M04
93210-13m04
Diagram Reference: 18
Get Part
9020208Md4
Washer, Plate
Diagram Reference: 19
Get Part
6R34124100
Rod, link
Diagram Reference: 20
Get Part
9538005600
Nut, hexagon (663)
Diagram Reference: 22
Get Part
6R54128700
Joint, Link
Diagram Reference: 23
Get Part
9046805M03
Clip(6j8)
Diagram Reference: 24
Get Part
6NG00104070 (WASHER, PLATE)
25 90202-05088
Diagram Reference: 24
Get Part
9169030016
Pin, spring
Diagram Reference: 27
Get Part
