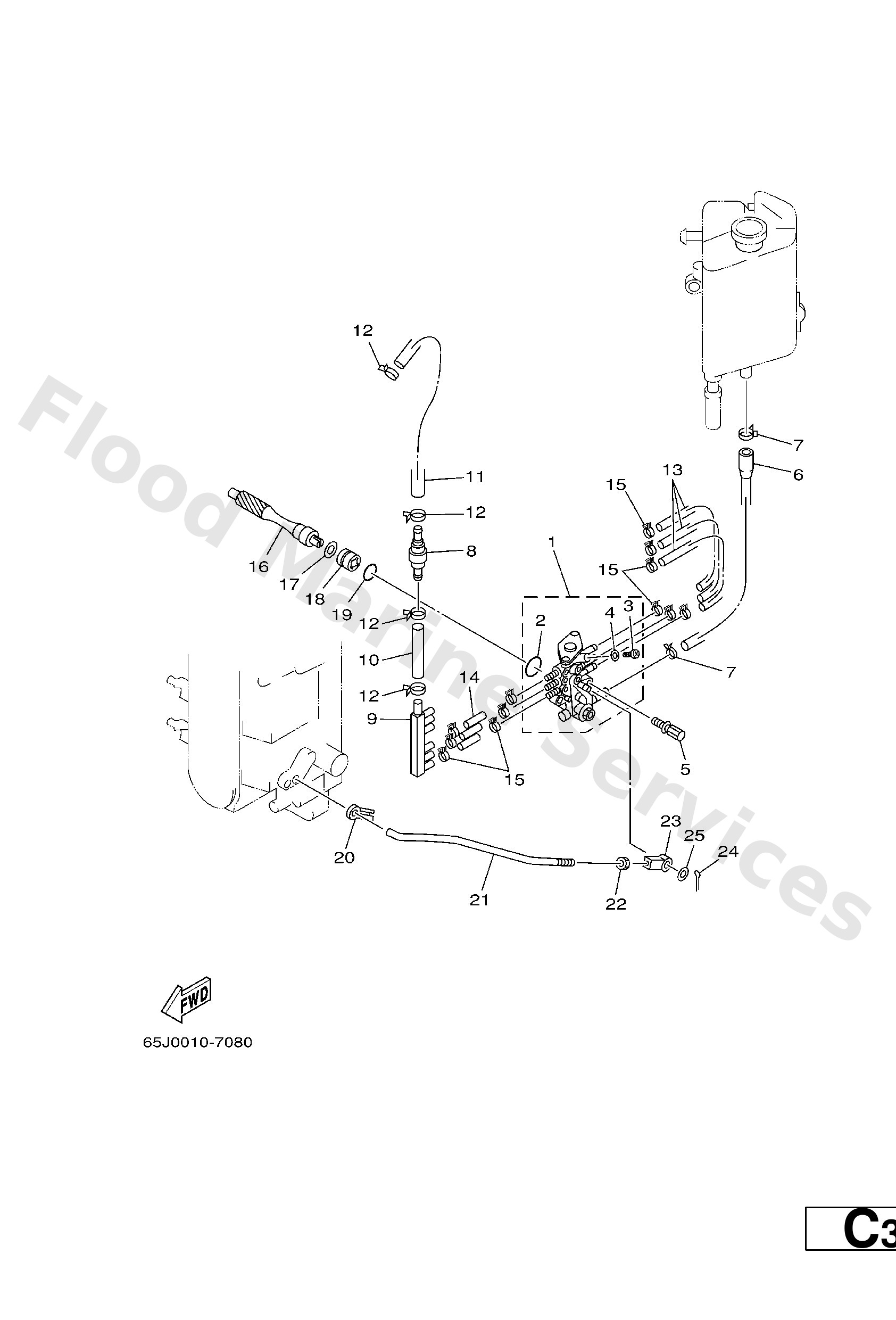

Diagram: OIL PUMP

Diagram

Parts List

65L−13200−00
Oil injection pump assembly
Diagram Reference: 1
Get Part
93210−19M82
O-ring(6j8)
Diagram Reference: 2
Get Part
6R3−13471−00
Screw
Diagram Reference: 3
Get Part
6L2−13475−00
Gasket, breather bolt
Diagram Reference: 4
Get Part
90109−06M40
Bolt(6h0)
Diagram Reference: 5
Get Part
61A−13416−00
Pipe, Oil 1
Diagram Reference: 6
Get Part
90465−11M10
Clamp
Diagram Reference: 7
Get Part
65L−13183−00
Valve, check
Diagram Reference: 8
Get Part
65L−24378−00
Pipe, joint 4
Diagram Reference: 9
Get Part
90445−09220
Hose (l1500)
Diagram Reference: 10
Get Part
90446−09M69
Hose(65j)
Diagram Reference: 11
Get Part
90445−07M02
Hose (l200)
Diagram Reference: 13
Get Part
90445−07M03
Hose (l200)
Diagram Reference: 14
Get Part
90468−07M02
Clip (6e5)
Diagram Reference: 15
Get Part
61A−11537−00
Gear, driven
Diagram Reference: 16
Get Part
90201−09M01
Washer, plate(61b)
Diagram Reference: 17
Get Part
61A−13117−00
Collar, distance
Diagram Reference: 18
Get Part
93210−18MA9
O-ring(61a)
Diagram Reference: 19
Get Part
6R5−41237−00
Joint, link
Diagram Reference: 20
Get Part
65L−41241−00
Rod, Link
Diagram Reference: 21
Get Part
95380−05600
Nut, hexagon (663)
Diagram Reference: 22
Get Part
6H1−41237−00
Joint, link
Diagram Reference: 23
Get Part
91490−12012
Pin, cotter (6g8)
Diagram Reference: 24
Get Part
90202−05088
Washer, plate (666)
Diagram Reference: 25
Get Part
