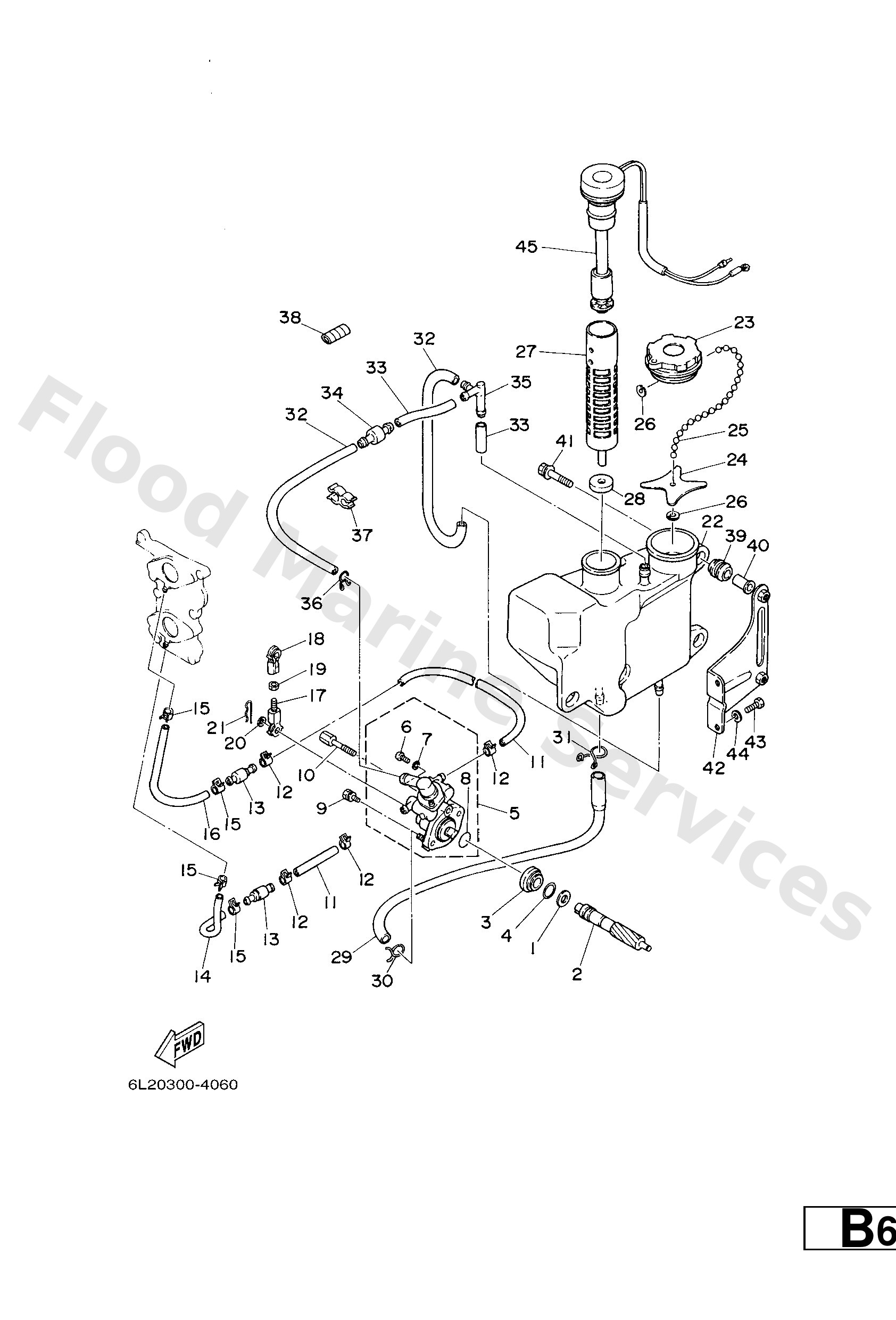

Diagram: OIL PUMP

Diagram

Parts List

9020108M93
Washer, plate (6g5)
Diagram Reference: 1
Get Part
6L21153700
Gear, driven
Diagram Reference: 2
Get Part
6J81311700
Collar, distance
Diagram Reference: 3
Get Part
9321013M04
93210-13m04
Diagram Reference: 4
Get Part
6L21320000
Oil injection pump assembly
Diagram Reference: 5
Get Part
6L21347100
Plug, drain
Diagram Reference: 6
Get Part
6L21347500
Gasket, breather bolt
Diagram Reference: 7
Get Part
9321019M82
O-ring(6j8)
Diagram Reference: 8
Get Part
9751305518
Bolt, with washer
Diagram Reference: 9
Get Part
9010905M33
Bolt
Diagram Reference: 10
Get Part
9044507M32
Hose (l200)
Diagram Reference: 11
Get Part
9046807M02
Clip (6e5)
Diagram Reference: 12
Get Part
6E91318370
Valve check
Diagram Reference: 13
Get Part
9044507M04
Hose(62t)
Diagram Reference: 14
Get Part
9044507M16
Hose(62t)
Diagram Reference: 16
Get Part
6824123750
Joint, link 2
Diagram Reference: 17
Get Part
6H14123700
Joint, link
Diagram Reference: 18
Get Part
9538005700
Nut (656)
Diagram Reference: 19
Get Part
9020205088
Washer, plate (666)
Diagram Reference: 20
Get Part
9046805M03
Clip(6j8)
Diagram Reference: 21
Get Part
6L22170701
Oil tank comp.
Diagram Reference: 22
Get Part
6H42177000
Oil tank cap assembly
Diagram Reference: 23
Get Part
6L22175800
Washer, special 2
Diagram Reference: 24
Get Part
6H12463300
Chain, Ball
Diagram Reference: 25
Get Part
6H12175700
Washer, special 1
Diagram Reference: 26
Get Part
6J81341100
Strainer, oil
Diagram Reference: 27
Get Part
6J81341400
Gasket, strainer cover
Diagram Reference: 28
Get Part
6L21341600
Pipe, oil 1
Diagram Reference: 29
Get Part
9046708004
Clip, pipe 6162435600
Diagram Reference: 30
Get Part
9046711M08
Clip(72x)
Diagram Reference: 31
Get Part
9044511M03
Hose (l360)
Diagram Reference: 32
Get Part
9044511M07
Hose (l70)
Diagram Reference: 33
Get Part
6J82174400
Breather
Diagram Reference: 34
Get Part
6E52437610
Pipe, joint 1
Diagram Reference: 35
Get Part
9046710M04
Clip, pipe 1 (6e9)
Diagram Reference: 36
Get Part
9046411M24
Clamp(6h1)
Diagram Reference: 37
Get Part
9044610M02
Tube (6e5)
Diagram Reference: 38
Get Part
6A08231700
Damper, ignition coil
Diagram Reference: 39
Get Part
6244254200
Collar
Diagram Reference: 40
Get Part
9011906M65
Bolt, with washer
Diagram Reference: 41
Get Part
6L22179800
Bracket, damper
Diagram Reference: 42
Get Part
9709506016
Bolt, hexagon deep recess
Diagram Reference: 43
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 44
Get Part
6L28572001
Oil level gauge assembly
Diagram Reference: 45
Get Part
