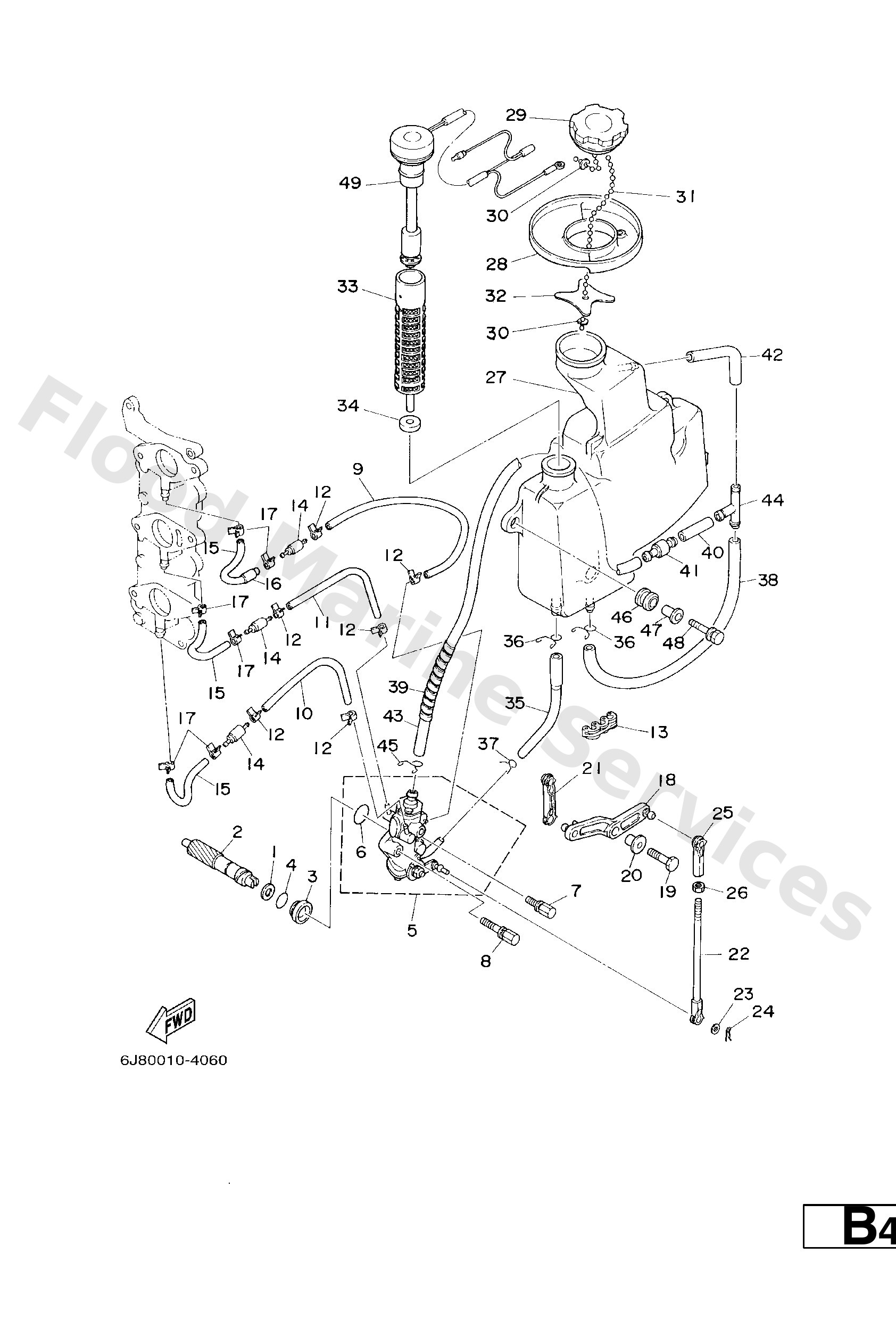

Diagram: OIL PUMP

Diagram

Parts List

90201−08M93
Washer, plate (6g5)
Diagram Reference: 1
Get Part
6J8−11537−00
Gear, driven
Diagram Reference: 2
Get Part
6J8−13117−00
Collar, distance
Diagram Reference: 3
Get Part
93210−13M04
93210-13m04
Diagram Reference: 4
Get Part
6J8−13200−01
Oil injection pump assembly
Diagram Reference: 5
Get Part
93210−19M82
O-ring(6j8)
Diagram Reference: 6
Get Part
90109−05M32
Bolt
Diagram Reference: 7
Get Part
90109−05M33
Bolt
Diagram Reference: 8
Get Part
90445−07M08
Hose (l390)
Diagram Reference: 9
Get Part
90445−07M32
Hose (l200)
Diagram Reference: 10
Get Part
90468−07M02
Clip (6e5)
Diagram Reference: 12
Get Part
90464−07M05
Clamp (6g5)
Diagram Reference: 13
Get Part
6E9−13183−70
Valve check
Diagram Reference: 14
Get Part
90445−07M04
Hose(62t)
Diagram Reference: 15
Get Part
90445−11M08
Hose (l70)
Diagram Reference: 16
Get Part
6J8−13155−00
Lever, control
Diagram Reference: 18
Get Part
97095−06025
Bolt
Diagram Reference: 19
Get Part
90387−06M60
Collar (6h3)
Diagram Reference: 20
Get Part
6J8−41238−00
Joint, link
Diagram Reference: 21
Get Part
6J8−41237−00
Joint, link
Diagram Reference: 22
Get Part
90202−05088
Washer, plate (666)
Diagram Reference: 23
Get Part
90468−05M03
Clip(6j8)
Diagram Reference: 24
Get Part
682−41237−00
Joint, link 2
Diagram Reference: 25
Get Part
95380−05700
Nut (656)
Diagram Reference: 26
Get Part
6J8−21707−01
Oil tank comp.
Diagram Reference: 27
Get Part
6J8−21707−11
Oil tank comp.
Diagram Reference: 27
Get Part
6J8−2173M−00
Seal 3
Diagram Reference: 28
Get Part
6H4−21770−00
Oil tank cap assembly
Diagram Reference: 29
Get Part
6H1−21757−00
Washer, special 1
Diagram Reference: 30
Get Part
6H1−24633−00
Chain, Ball
Diagram Reference: 31
Get Part
6J8−21758−00
Washer, special 2
Diagram Reference: 32
Get Part
6J8−13411−00
Strainer, oil
Diagram Reference: 33
Get Part
6J8−13414−00
Gasket, strainer cover
Diagram Reference: 34
Get Part
6J8−13416−00
Pipe, oil 1
Diagram Reference: 35
Get Part
90467−11M08
Clip(72x)
Diagram Reference: 36
Get Part
90467−08004
Clip, pipe 6162435600
Diagram Reference: 37
Get Part
90445−11M03
Hose (l360)
Diagram Reference: 38
Get Part
90446−10M01
Tube (6e5)
Diagram Reference: 39
Get Part
90445−11M07
Hose (l70)
Diagram Reference: 40
Get Part
6J8−21744−00
Breather
Diagram Reference: 41
Get Part
90445−11M02
Hose (l100)
Diagram Reference: 42
Get Part
90445−11M04
Hose (l600)
Diagram Reference: 43
Get Part
6E5−24378−00
Pipe, joint 3
Diagram Reference: 44
Get Part
90467−10M04
Clip, pipe 1 (6e9)
Diagram Reference: 45
Get Part
6A0−82317−00
Damper, ignition coil
Diagram Reference: 46
Get Part
624−42542−00
Collar
Diagram Reference: 47
Get Part
90119−06M65
Bolt, with washer
Diagram Reference: 48
Get Part
6J8−85720−01
Oil level gauge assembly
Diagram Reference: 49
Get Part
