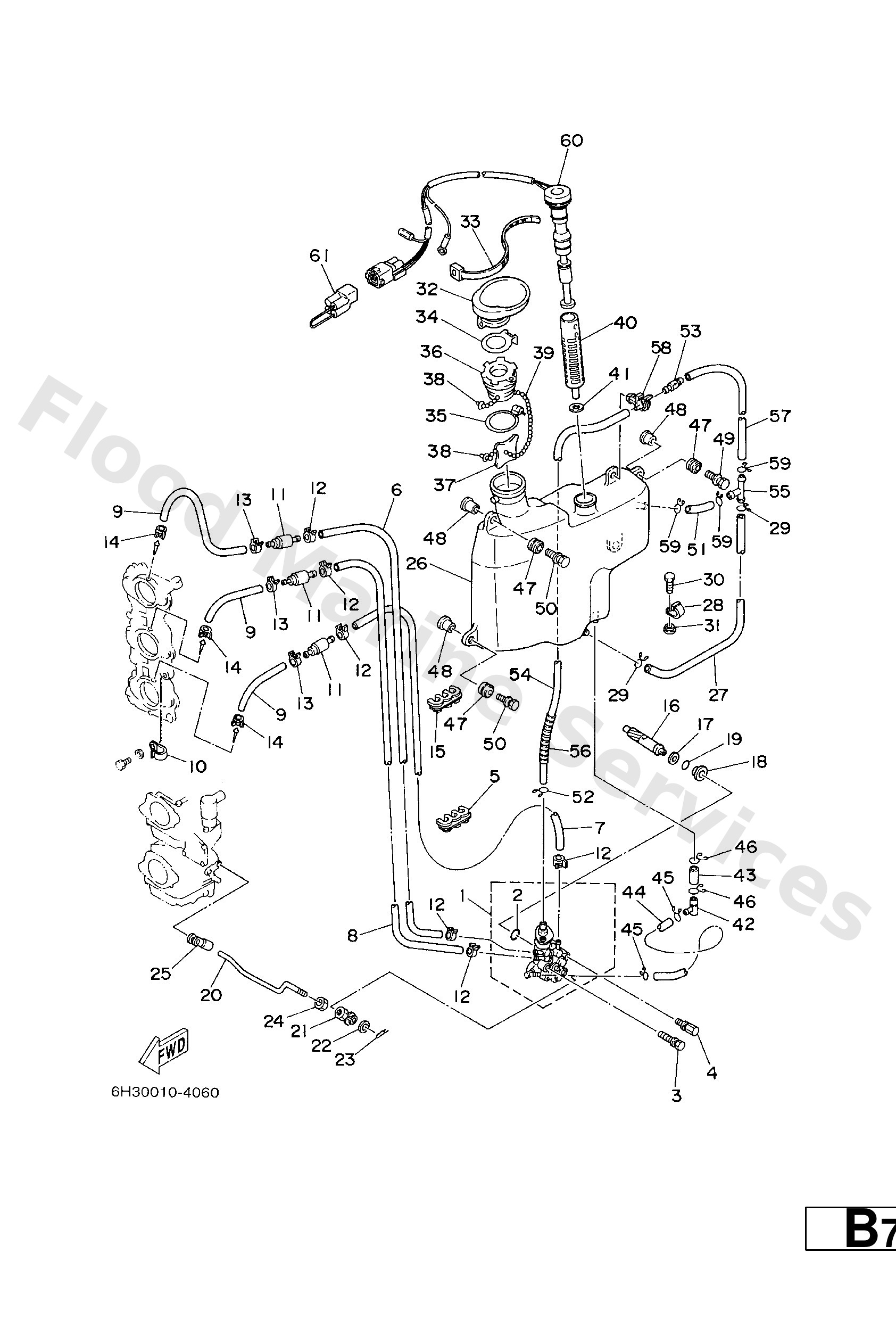

Diagram: OIL PUMP

Diagram

Parts List

62F1320000
-
Diagram Reference: 1
Get Part
6H3--13200--02
Oil injection pump assembly
Diagram Reference: 1
Get Part
93210--19MA7
O-ring(6r0)
Diagram Reference: 2
Get Part
90109--06M39
Bolt(6h0)
Diagram Reference: 3
Get Part
90109--06M40
Bolt(6h0)
Diagram Reference: 4
Get Part
90464--07M05
Clamp (6g5)
Diagram Reference: 5
Get Part
90445--07M44
Hose (l390)
Diagram Reference: 6
Get Part
90445--07M23
Hose (l570)
Diagram Reference: 7
Get Part
90445--07MA5
Hose (l200)
Diagram Reference: 8
Get Part
90445--07M87
Hose(62t)
Diagram Reference: 9
Get Part
90465--06M86
Clamp
Diagram Reference: 10
Get Part
6E9--13183--70
Valve check
Diagram Reference: 11
Get Part
90468--07M02
Clip (6e5)
Diagram Reference: 12
Get Part
6H3--11537--01
Gear, driven
Diagram Reference: 16
Get Part
90201--08M93
Washer, plate (6g5)
Diagram Reference: 17
Get Part
6H1--13117--01
Collar, distance
Diagram Reference: 18
Get Part
93210--13M04
93210-13m04
Diagram Reference: 19
Get Part
6H3--41241--01
Rod, link
Diagram Reference: 20
Get Part
6H1--41237--00
Joint, link
Diagram Reference: 21
Get Part
90202--05088
Washer, plate (666)
Diagram Reference: 22
Get Part
90468--05M03
Clip(6j8)
Diagram Reference: 23
Get Part
95380--05600
Nut, hexagon (663)
Diagram Reference: 24
Get Part
6E9--41237--00
Joint, link
Diagram Reference: 25
Get Part
6H3--21707--06
Oil tank comp.
Diagram Reference: 26
Get Part
90445--11M03
Hose (l360)
Diagram Reference: 27
Get Part
90465--11M27
Clamp(6h1)
Diagram Reference: 28
Get Part
90467--11M08
Clip(72x)
Diagram Reference: 29
Get Part
97095--06016
Bolt, hexagon deep recess
Diagram Reference: 30
Get Part
90387--06M31
Coller (6a0)
Diagram Reference: 31
Get Part
6H3--21752--00
Tube, filler 1
Diagram Reference: 32
Get Part
90465--13M30
Clamp
Diagram Reference: 33
Get Part
63D--2176M--00
Hook
Diagram Reference: 34
Get Part
63D--2175R--00
Hook, band
Diagram Reference: 35
Get Part
6H4--21770--00
Oil tank cap assembly
Diagram Reference: 36
Get Part
6J8--21758--00
Washer, special 2
Diagram Reference: 37
Get Part
6H1--21757--00
Washer, special 1
Diagram Reference: 38
Get Part
6H1--24633--00
Chain, Ball
Diagram Reference: 39
Get Part
6J8--13411--00
Strainer, oil
Diagram Reference: 40
Get Part
6J8--13414--00
Gasket, strainer cover
Diagram Reference: 41
Get Part
6H1--13435--00
Nipple
Diagram Reference: 42
Get Part
90445--08M01
Hose (l30)
Diagram Reference: 43
Get Part
6H1--21766--01
Pipe, oil
Diagram Reference: 44
Get Part
90467--08004
Clip, pipe 6162435600
Diagram Reference: 45
Get Part
90467--12M11
Clip(6k8)
Diagram Reference: 46
Get Part
6A0--82317--00
Damper, ignition coil
Diagram Reference: 47
Get Part
624--42542--00
Collar
Diagram Reference: 48
Get Part
90119--06M65
Bolt, with washer
Diagram Reference: 49
Get Part
90119--06M88
Bolt, with washer
Diagram Reference: 50
Get Part
90445--11M21
Hose (l70)
Diagram Reference: 51
Get Part
90467--10M04
Clip, pipe 1 (6e9)
Diagram Reference: 52
Get Part
6J8--21744--00
Breather
Diagram Reference: 53
Get Part
90445--11M15
Hose (l360)
Diagram Reference: 54
Get Part
6E5--24378--00
Pipe, joint 3
Diagram Reference: 55
Get Part
90446--10M01
Tube (6e5)
Diagram Reference: 56
Get Part
90445--11M02
Hose (l100)
Diagram Reference: 57
Get Part
90464--11M23
Clamp(6h4)
Diagram Reference: 58
Get Part
6H38572016
Oil level gauge assembly
Diagram Reference: 60
Get Part
6R5--82582--B0 (AP)
Cover, wire harness
