F13.5A (2007)
OIL PUMP

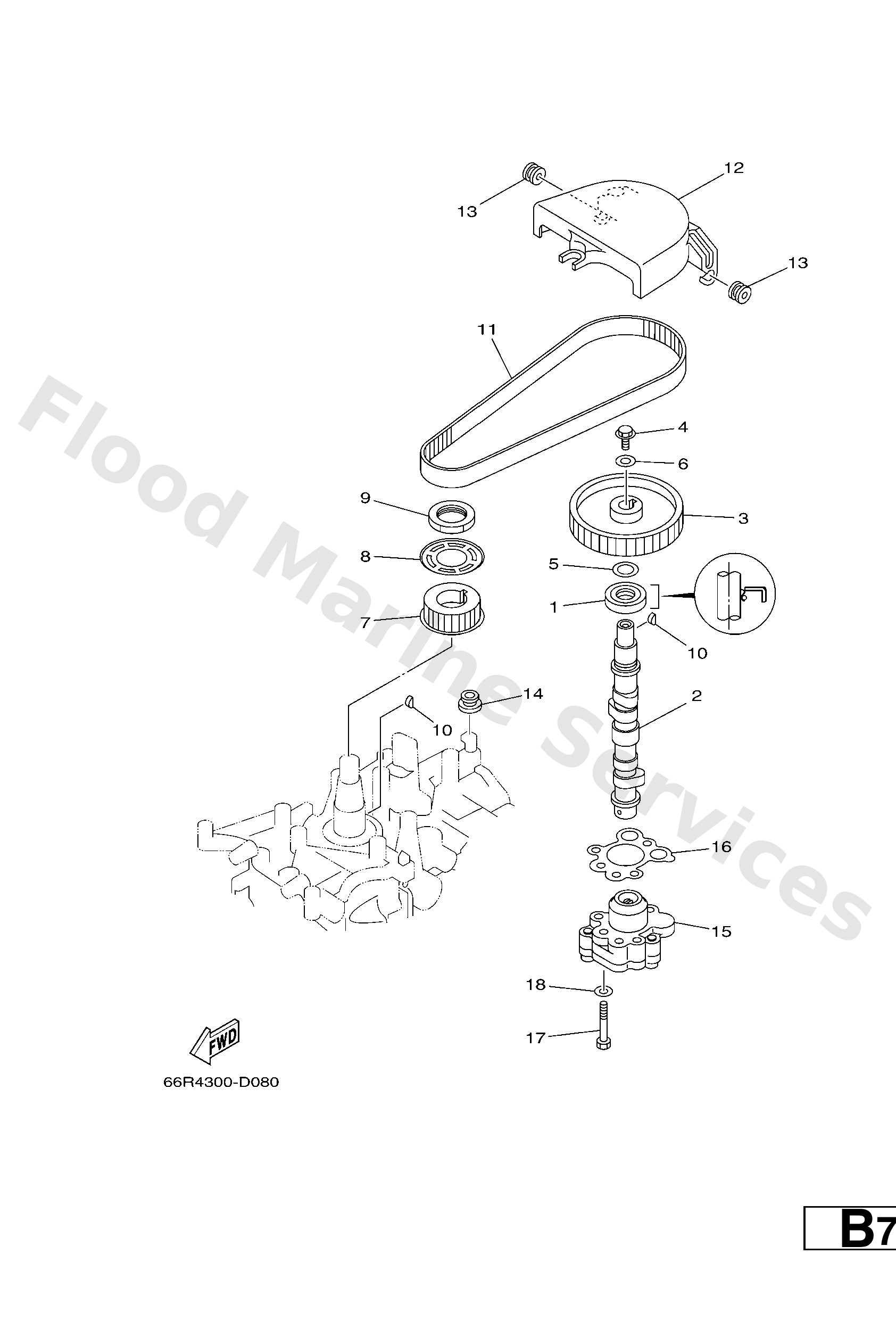

Diagram: OIL PUMP
Parts List
Reference
Description
Price
1
9310218M21
Oil seal (6g8)
Loading…
↗
2
66M1217000
Camshaft assembly 1
Loading…
↗
2
66M1217110
Camshaft 1
Loading…
↗
3
66M115370094
Gear, driven
Loading…
↗
4
9010506M14
Bolt (6e0)
Loading…
↗
5
9020113201
Washer 6474283300
Loading…
↗
6
9020106M94
Washer (6g8)
Loading…
↗
7
66M1153610
Gear, drive
Loading…
↗
8
66M1155700
Washer 1
Loading…
↗
9
9017028M37
Nut
Loading…
↗
10
9028003M01
Key woodruff 146115450000
Loading…
↗
11
66M4624100
Belt
Loading…
↗
12
66M4629700
Cover, dust
Loading…
↗
13
9048010M16
Grommet(6j8)
Loading…
↗
14
9048012072
Grommet(53y)
Loading…
↗
15
66M1330010
Oil Pump assembly
Loading…
↗
16
66M1332910
Gasket, pump cover
Loading…
↗
17
9709506035
Bolt(j52)
Loading…
↗
18
9299506600
Washer, plain (646)
Loading…
↗
