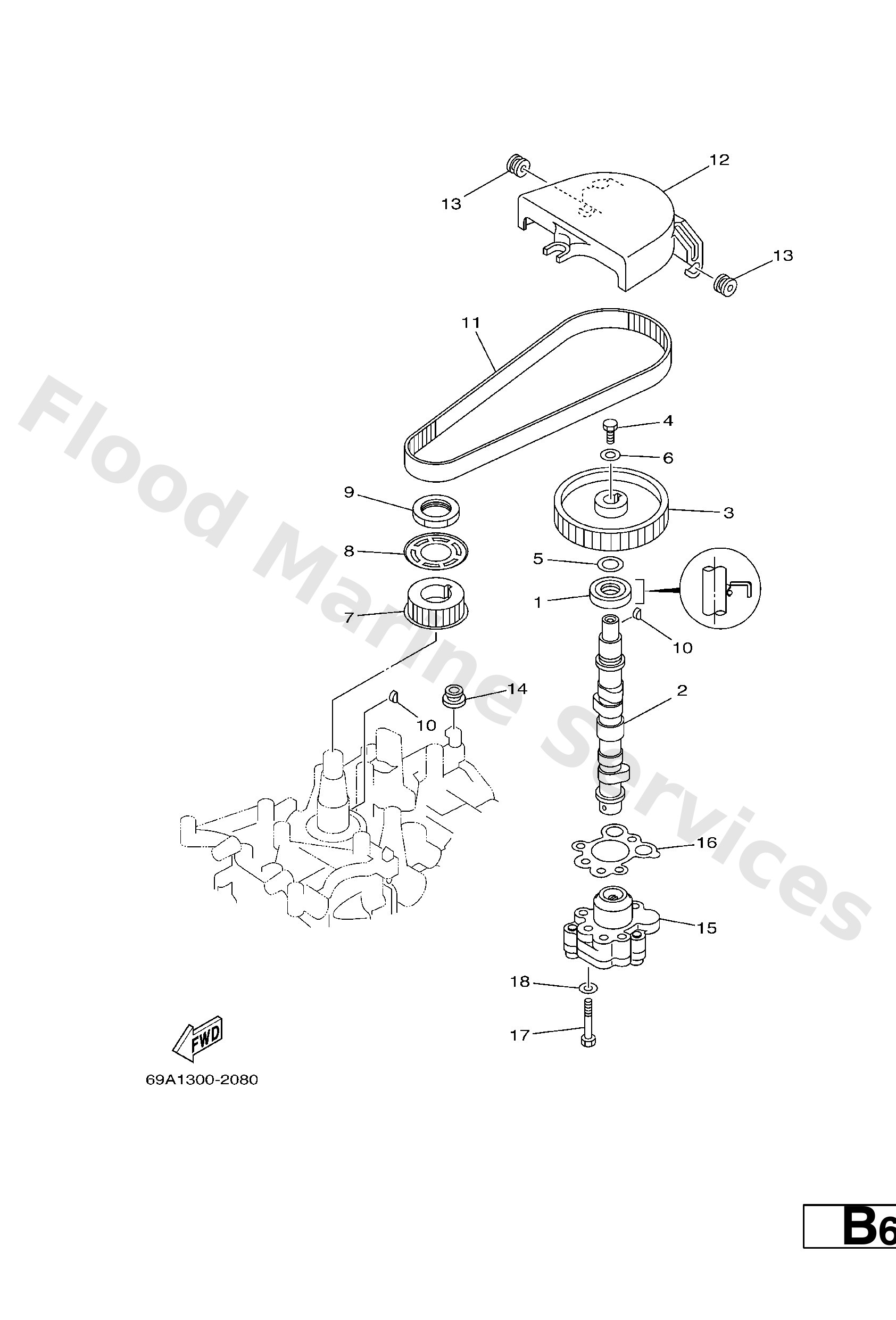

Diagram: OIL PUMP

Diagram

Parts List

93102−18M21
Oil seal (6g8)
Diagram Reference: 1
Get Part
66M−12171−10
Camshaft 1
Diagram Reference: 2
Get Part
66M−11537−00−94
Gear, driven
Diagram Reference: 3
Get Part
97013−06016
Bolt, hexagon deep recess
Diagram Reference: 4
Get Part
90201−13201
Washer 6474283300
Diagram Reference: 5
Get Part
90201−06M94
Washer (6g8)
Diagram Reference: 6
Get Part
66M−11536−10
Gear, drive
Diagram Reference: 7
Get Part
66M−11557−00
8−
Diagram Reference: 8
Get Part
90170−28M37
Nut
Diagram Reference: 9
Get Part
90280−03M01
Key woodruff 146115450000
Diagram Reference: 10
Get Part
66M−46241−00
Belt
Diagram Reference: 11
Get Part
66M−46297−00
Cover, dust
Diagram Reference: 12
Get Part
90480−10M16
Grommet(6j8)
Diagram Reference: 13
Get Part
90480−12072
Grommet(53y)
Diagram Reference: 14
Get Part
66M−13300−10
Oil Pump assembly
Diagram Reference: 15
Get Part
66M−13329−10
Gasket, pump cover
Diagram Reference: 16
Get Part
97095−06035
Bolt(j52)
Diagram Reference: 17
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 18
