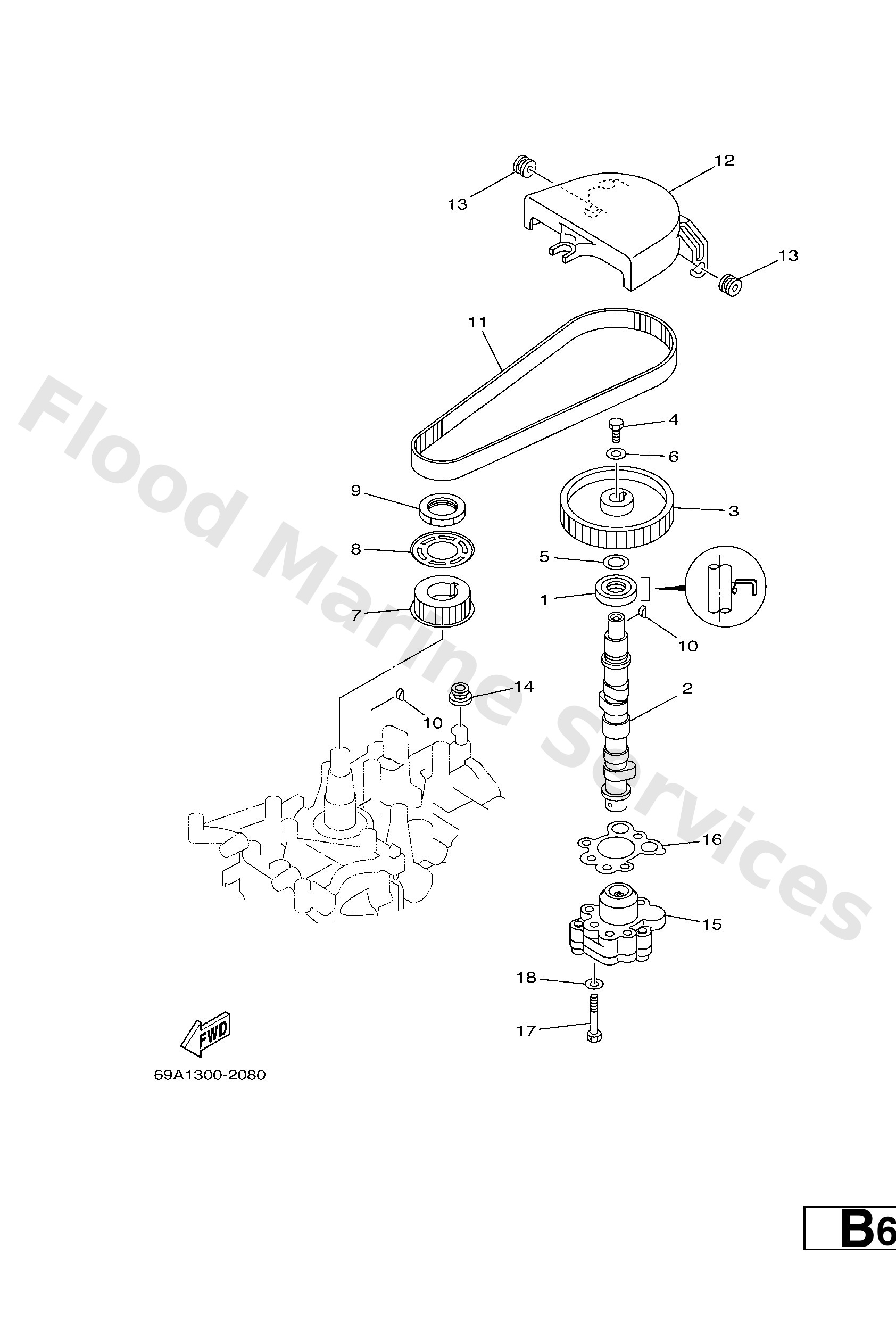

Diagram: OIL PUMP

Diagram

Parts List

9310218M21
Oil seal (6g8)
Diagram Reference: 1
Get Part
66M1217000
-
Diagram Reference: 2
Get Part
66M1217110
Camshaft 1
Diagram Reference: 2
Get Part
66M115370094
Gear, driven
Diagram Reference: 3
Get Part
9701306016
Bolt, hexagon deep recess
Diagram Reference: 4
Get Part
9020113201
Washer 6474283300
Diagram Reference: 5
Get Part
9020106M94
Washer (6g8)
Diagram Reference: 6
Get Part
66M1153610
Gear, drive
Diagram Reference: 7
Get Part
66M1155700
-
Diagram Reference: 8
Get Part
9017028M37
Nut
Diagram Reference: 9
Get Part
9028003M01
Key woodruff 146115450000
Diagram Reference: 10
Get Part
66M4624100
Belt
Diagram Reference: 11
Get Part
66M4629700
Cover, dust
Diagram Reference: 12
Get Part
9048010M16
Grommet(6j8)
Diagram Reference: 13
Get Part
9048012072
Grommet(53y)
Diagram Reference: 14
Get Part
66M1330010
Oil Pump assembly
Diagram Reference: 15
Get Part
66M1332910
Gasket, pump cover
Diagram Reference: 16
Get Part
9709506035
Bolt(j52)
Diagram Reference: 17
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 18
Get Part
