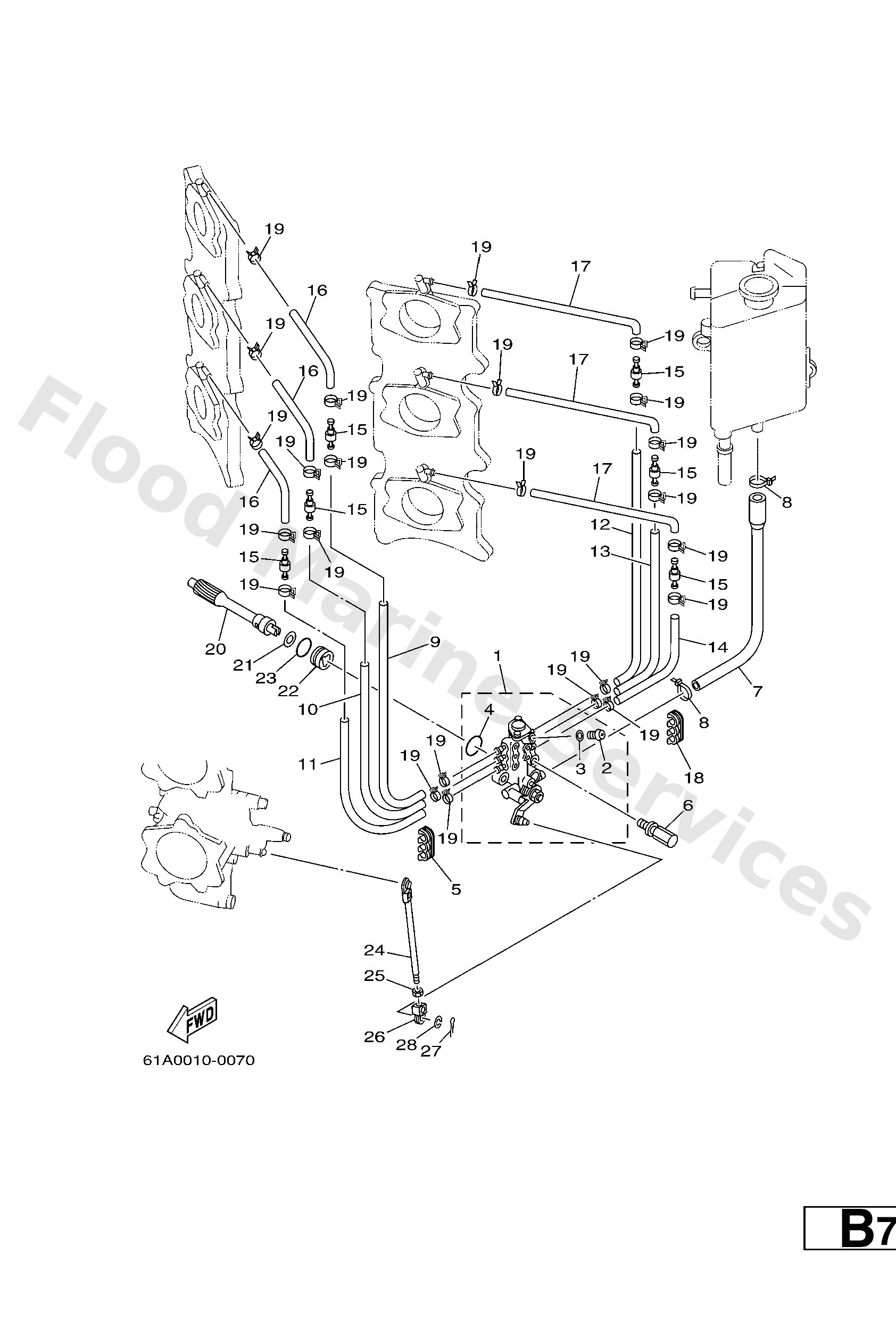

Diagram: OIL PUMP

Diagram

Parts List

62J1320002
Oil Injection Pump assembly
Diagram Reference: 1
Get Part
6R31347100
Screw
Diagram Reference: 2
Get Part
6L21347500
Gasket, breather bolt
Diagram Reference: 3
Get Part
9321019M82
O-ring(6j8)
Diagram Reference: 4
Get Part
9046407M05
Clamp (6g5)
Diagram Reference: 5
Get Part
9010906M40
Bolt(6h0)
Diagram Reference: 6
Get Part
61A1341600
Pipe, Oil 1
Diagram Reference: 7
Get Part
9046511M10
Clamp
Diagram Reference: 8
Get Part
9044507M77
Hose (l390)
Diagram Reference: 9
Get Part
9044507M72
Hose (l390)
Diagram Reference: 10
Get Part
9044507196
Hose (l200)
Diagram Reference: 11
Get Part
6R31318310
Valve, check
Diagram Reference: 15
Get Part
9044507M87
Hose(62t)
Diagram Reference: 16
Get Part
9044507M07
Hose(62t)
Diagram Reference: 17
Get Part
9046807M02
Clip (6e5)
Diagram Reference: 19
Get Part
61A1153700
Gear, driven
Diagram Reference: 20
Get Part
9020109M01
Washer, plate(61b)
Diagram Reference: 21
Get Part
61A1311700
Collar, distance
Diagram Reference: 22
Get Part
9321018MA9
O-ring(61a)
Diagram Reference: 23
Get Part
61A4123700
Joint, link
Diagram Reference: 24
Get Part
9538005600
Nut, hexagon (663)
Diagram Reference: 25
Get Part
6H14123700
Joint, link
Diagram Reference: 26
Get Part
9149012012
Pin, cotter (6g8)
Diagram Reference: 27
Get Part
9020205088
Washer, plate (666)
Diagram Reference: 28
Get Part
