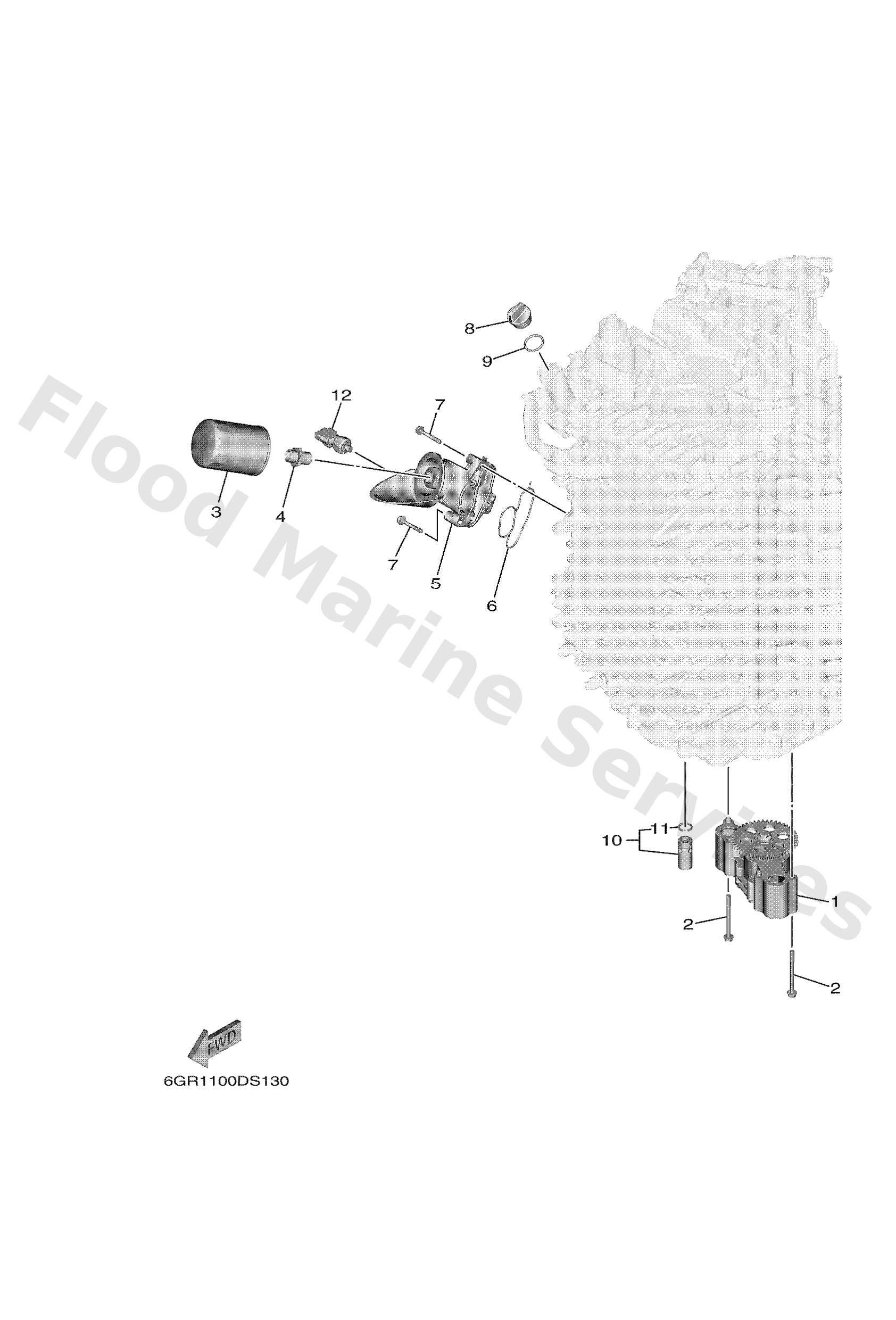

Diagram: OIL PUMP

Diagram

Parts List

6GR1330000
Oil pump assembly
Diagram Reference: 1
Get Part
9581706075
Bolt, flange
Diagram Reference: 2
Get Part
N261344002
Element assembly, oil cleaner
Diagram Reference: 3
Get Part
9040119001
Bolt, union
Diagram Reference: 4
Get Part
6GR1344600
Connector
Diagram Reference: 5
Get Part
6GR1347700
Gasket
Diagram Reference: 6
Get Part
9010506151
Bolt, flange
Diagram Reference: 7
Get Part
6G81536300
Plug, oil
Diagram Reference: 8
Get Part
9321024M79
O-ring
Diagram Reference: 9
Get Part
6GR1349000
Relief valve assembly
Diagram Reference: 10
Get Part
6GR1347300
O-ring
Diagram Reference: 11
Get Part
6AW8365100
Sender, oil pressure
Diagram Reference: 12
Get Part
