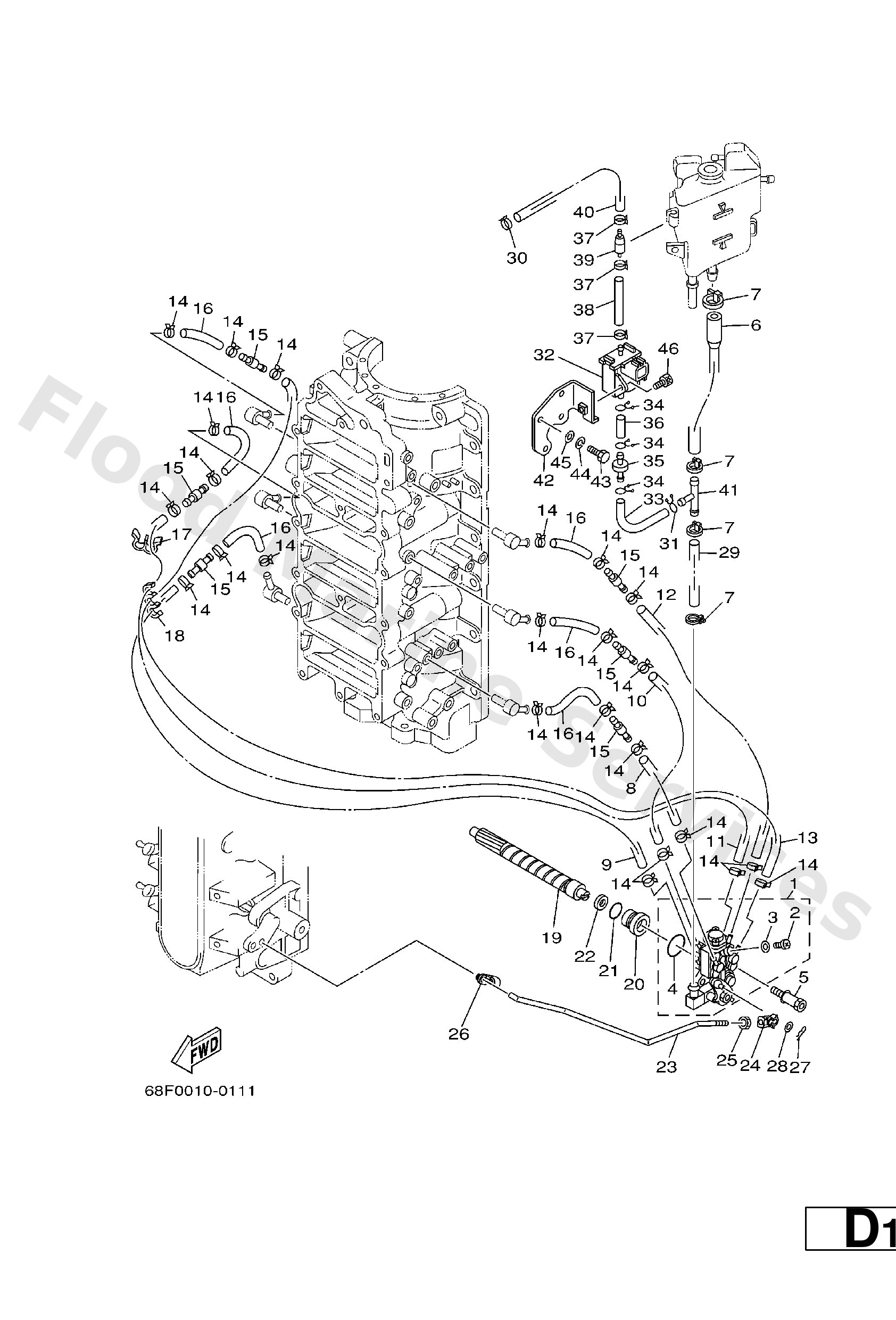

Diagram: OIL PUMP

Diagram

Parts List

68H1320000
Oil injection pump assembly
Diagram Reference: 1
Get Part
6R3--13471--00
Screw
Diagram Reference: 2
Get Part
6L2--13475--00
Gasket, breather bolt
Diagram Reference: 3
Get Part
93210--19M82
O-ring(6j8)
Diagram Reference: 4
Get Part
90109--06M40
Bolt(6h0)
Diagram Reference: 5
Get Part
6G51341600
Pipe, oil 1
Diagram Reference: 6
Get Part
90465--11M10
Clamp
Diagram Reference: 7
Get Part
90445--07M00
Hose (l200)
Diagram Reference: 8
Get Part
90445--07M09
Hose (l390)
Diagram Reference: 9
Get Part
90445--07MA5
Hose (l200)
Diagram Reference: 10
Get Part
90445--07M10
Hose (L510)
Diagram Reference: 11
Get Part
90445--07MA4
Hose (l390)
Diagram Reference: 12
Get Part
9044507M80
Hose (l770)
Diagram Reference: 13
Get Part
90468--07M02
Clip (6e5)
Diagram Reference: 14
Get Part
6R31318300
Valve, check
Diagram Reference: 15
Get Part
90445--07M04
Hose(62t)
Diagram Reference: 16
Get Part
90464--07M20
Clamp(6h0)
Diagram Reference: 17
Get Part
90464--07M05
Clamp (6g5)
Diagram Reference: 18
Get Part
6R3--11537--00
Gear, driven
Diagram Reference: 19
Get Part
6R3--13117--00
Collar, distance
Diagram Reference: 20
Get Part
93210--13M04
93210-13m04
Diagram Reference: 21
Get Part
90202--08M44
Washer, plate(6r3)
Diagram Reference: 22
Get Part
67H4124100
Rod, link
Diagram Reference: 23
Get Part
6H1--41237--00
Joint, link
Diagram Reference: 24
Get Part
95380--05600
Nut, hexagon (663)
Diagram Reference: 25
Get Part
6R5--41237--00
Joint, link
Diagram Reference: 26
Get Part
90468--05M03
Clip(6j8)
Diagram Reference: 27
Get Part
90202--05088
Washer, plate (666)
Diagram Reference: 28
Get Part
9044512M14
Hose (l50)
Diagram Reference: 29
Get Part
90467--08M18
Clip
Diagram Reference: 31
Get Part
68F1310000
Solenoid pump assembly
Diagram Reference: 32
Get Part
68F1341800
Hose 4
Diagram Reference: 33
Get Part
68F1318400
Spring, oil pipe
Diagram Reference: 34
Get Part
68F1344000
Filter assembly
Diagram Reference: 35
Get Part
68F1316F00
Hose 1
Diagram Reference: 36
Get Part
68F1313300
Clip
Diagram Reference: 37
Get Part
68F1316G00
Hose 2
Diagram Reference: 38
Get Part
68F1316A00
Check Valve assembly
Diagram Reference: 39
Get Part
68F1341600
Hose 3
Diagram Reference: 40
Get Part
68F--14485--00
Pipe, joint
Diagram Reference: 41
Get Part
68F1319K00
Plate
Diagram Reference: 42
Get Part
97095--06020
Bolt(7u8)
Diagram Reference: 43
Get Part
92995--06100
Washer(6a1)
Diagram Reference: 44
Get Part
92995--06600
Washer, plain (646)
Diagram Reference: 45
Get Part
9011006M06
Bolt, hexagon socket head
Diagram Reference: 46
Get Part
