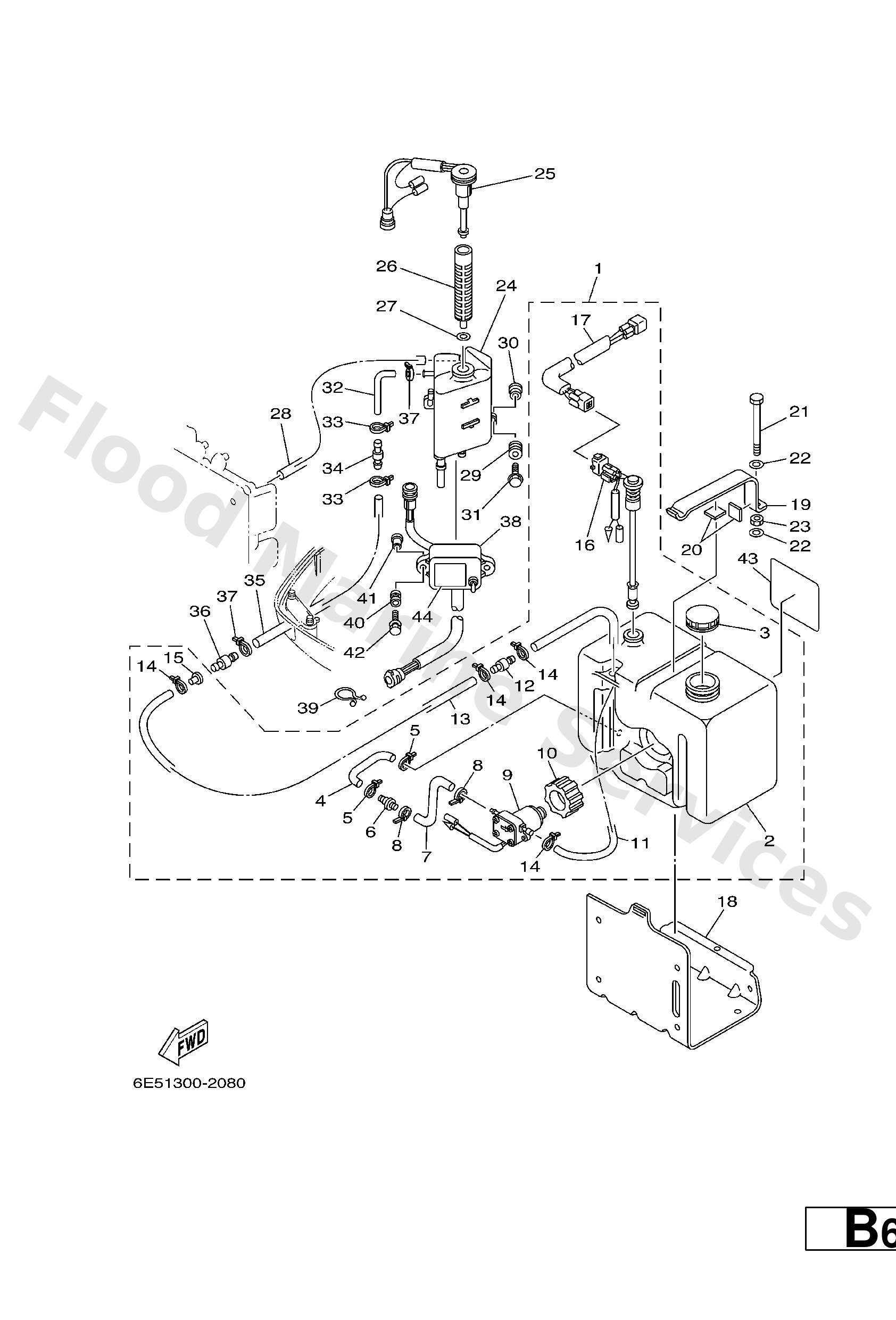

Diagram: OIL TANK
Parts List
Sub oil tank assembly
Diagram Reference: 1
Sub tank, oil (10.5l)
Diagram Reference: 2
Oil tank cap assembly
Diagram Reference: 3
Pipe 11
Diagram Reference: 4
Clamp
Diagram Reference: 5
Strainer 1
Diagram Reference: 6
Pipe, oil
Diagram Reference: 7
Oil feed pump assembly
Diagram Reference: 9
Grommet
Diagram Reference: 10
Pipe 10
Diagram Reference: 11
Pipe, joint 4
Diagram Reference: 12
Hose (l3000)
Diagram Reference: 13
Grommet (6e3)
Diagram Reference: 15
Oil level gauge assembly
Diagram Reference: 16
Wire, lead
Diagram Reference: 17
Holder, oil sub tank
Diagram Reference: 18
Bracket, damper
Diagram Reference: 19
Damper
Diagram Reference: 20
Bolt, hexagon
Diagram Reference: 21
Washer, plain (646)
Diagram Reference: 22
Nut(661)
Diagram Reference: 23
Oil tank assembly
Diagram Reference: 24
Strainer, oil
Diagram Reference: 26
Gasket, strainer cover
Diagram Reference: 27
Hose (l700)
Diagram Reference: 28
Damper, ignition coil
Diagram Reference: 29
Collar
Diagram Reference: 30
Bolt, with washer
Diagram Reference: 31
Pipe 12
Diagram Reference: 32
Hose (L350)
Diagram Reference: 35
Pipe, Joint
Diagram Reference: 36
Control unit kit
Diagram Reference: 38
Clamp (3y2)
Diagram Reference: 39
Mark, Caution
Diagram Reference: 43
Mark, Caution
Diagram Reference: 44
