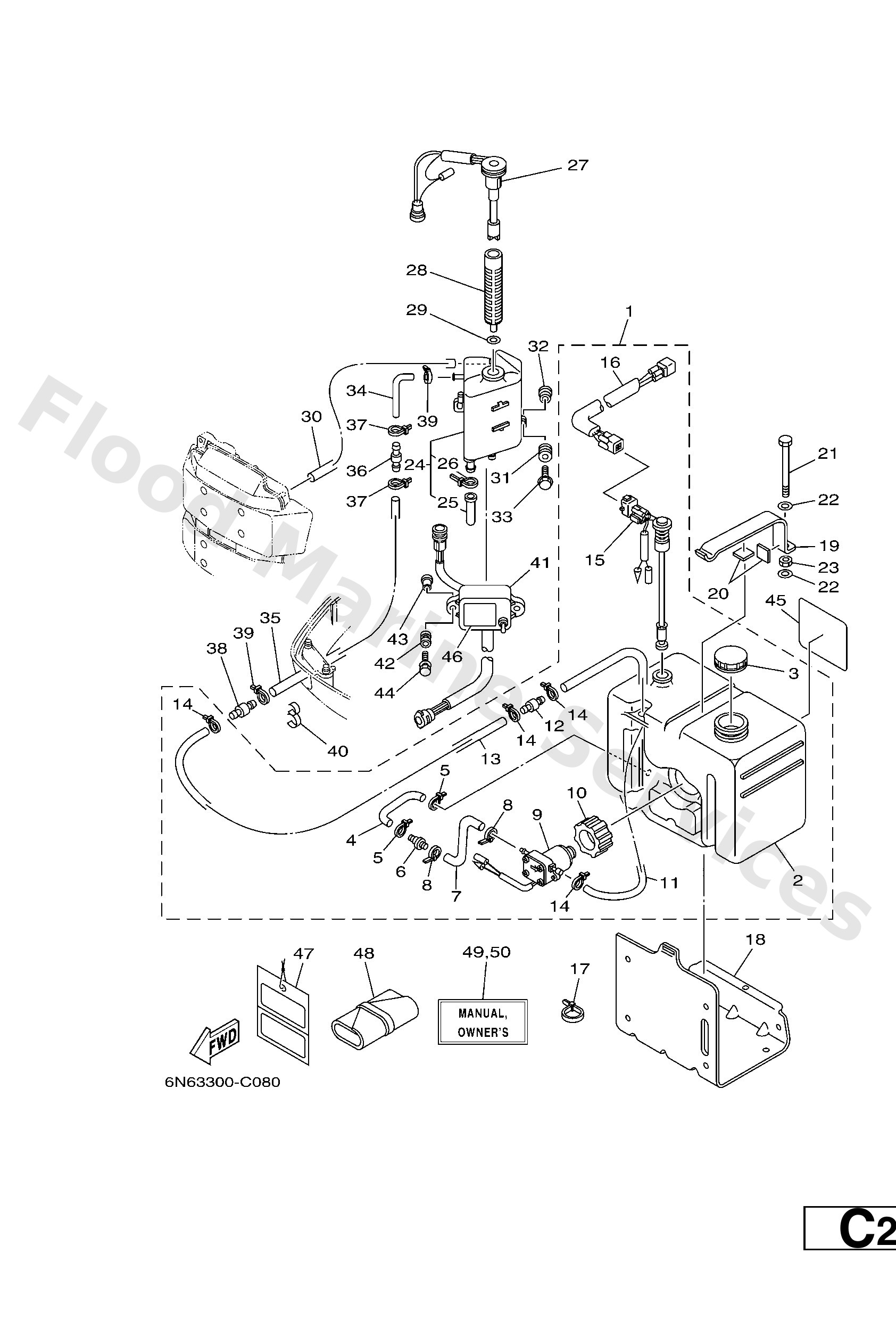

Diagram: OIL TANK
Parts List
Sub oil tank assembly.
Diagram Reference: 1
Sub tank, oil (10.5l)
Diagram Reference: 2
Oil tank cap assembly
Diagram Reference: 3
Pipe 11
Diagram Reference: 4
Clamp
Diagram Reference: 5
Strainer 1
Diagram Reference: 6
Pipe, oil
Diagram Reference: 7
Oil feed pump assembly
Diagram Reference: 9
Grommet
Diagram Reference: 10
Pipe 10
Diagram Reference: 11
Pipe, joint 4
Diagram Reference: 12
Hose (l8000)
Diagram Reference: 13
Oil level gauge assembly
Diagram Reference: 15
Wire, lead
Diagram Reference: 16
Clamp (6e5)
Diagram Reference: 17
Holder, oil sub tank
Diagram Reference: 18
Bracket, damper
Diagram Reference: 19
Damper
Diagram Reference: 20
Bolt, hexagon
Diagram Reference: 21
Washer, plain (646)
Diagram Reference: 22
Nut(661)
Diagram Reference: 23
Oil tank assembly
Diagram Reference: 24
Cap, oil tank
Diagram Reference: 25
Oil level gauge assembly
Diagram Reference: 27
Strainer, oil
Diagram Reference: 28
Gasket, strainer cover
Diagram Reference: 29
Hose (l700)
Diagram Reference: 30
Damper, ignition coil
Diagram Reference: 31
Collar
Diagram Reference: 32
Bolt, with washer
Diagram Reference: 33
Pipe 12
Diagram Reference: 34
Hose (l3000)
Diagram Reference: 35
Clamp(6r3)
Diagram Reference: 40
Control unit assembly
Diagram Reference: 41
Mark, Caution
Diagram Reference: 45
Mark, Caution
Diagram Reference: 46
Tool kit
Diagram Reference: 48
Om 115c/130b '07
Diagram Reference: 49
Om 115c/130b '07
Diagram Reference: 49
Om 115c/130b '07
Diagram Reference: 49
Om 115c/130b '07
Diagram Reference: 49
Om 115c/130b '07
Diagram Reference: 49
Om 115c/130b '07
Diagram Reference: 49
Om 115c/130b '07
Diagram Reference: 50
Om 115c/130b '07
Diagram Reference: 50
Om 115c/130b '07
Diagram Reference: 50
Om 115c/130b '07
Diagram Reference: 50
Om 115c/130b '07
Diagram Reference: 50
Om 115c/130b '07
Diagram Reference: 50
