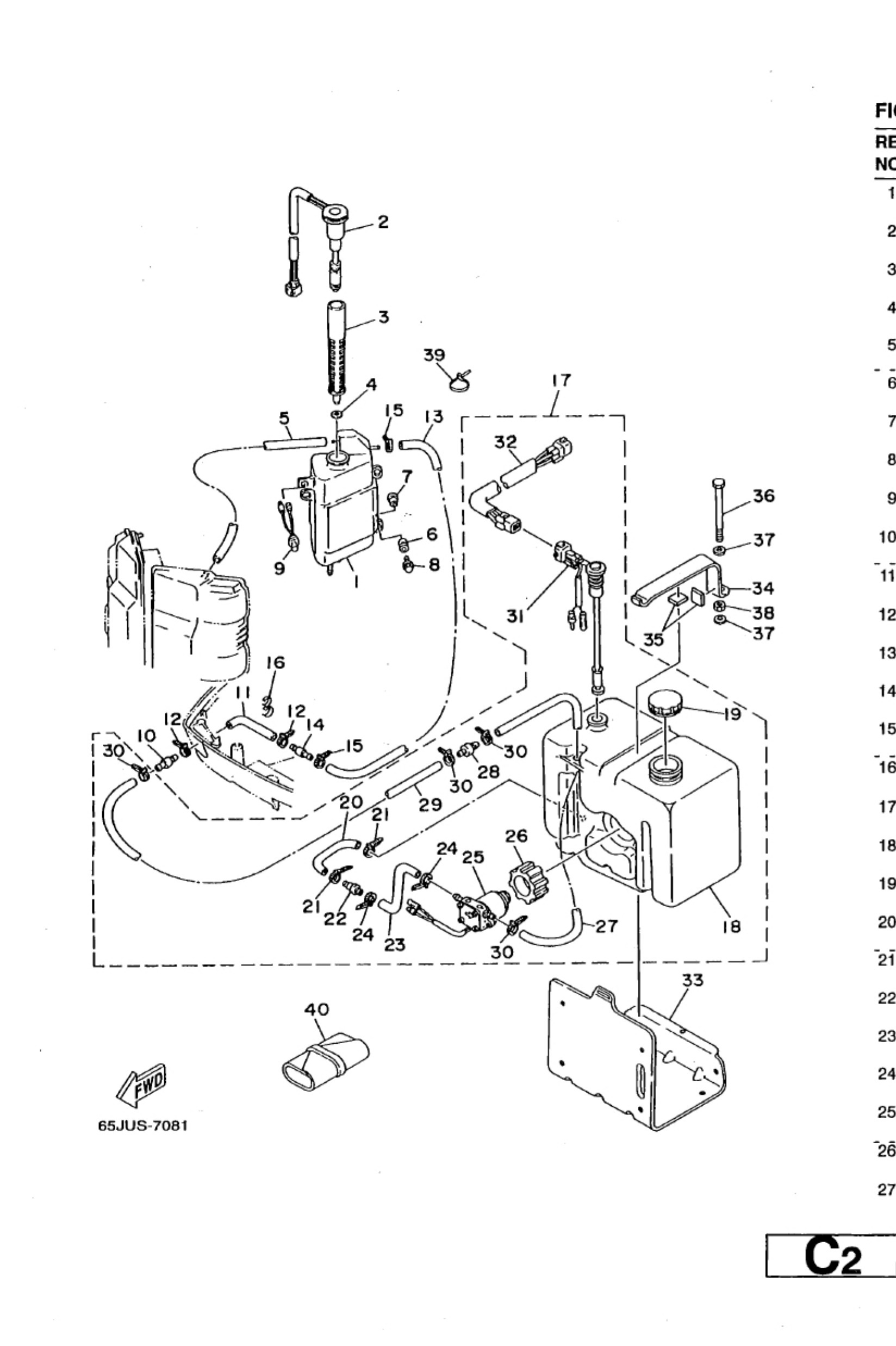

Diagram: OIL TANK
Parts List
Oil tank assembly
Diagram Reference: 1
Oil level gauge assembly
Diagram Reference: 2
Strainer, oil
Diagram Reference: 3
Gasket, strainer cover
Diagram Reference: 4
Hose (l700)
Diagram Reference: 5
Damper, ignition coil
Diagram Reference: 6
Collar
Diagram Reference: 7
Bolt, with washer
Diagram Reference: 8
Switch assembly
Diagram Reference: 9
Pipe, joint 4
Diagram Reference: 10
Clamp
Diagram Reference: 12
Pipe 12
Diagram Reference: 13
Clamp(6r3)
Diagram Reference: 16
Sub oil tank assembly.
Diagram Reference: 17
Sub tank, oil (10.5l)
Diagram Reference: 18
Oil tank cap assembly
Diagram Reference: 19
Pipe 11
Diagram Reference: 20
Strainer 1
Diagram Reference: 22
Pipe, oil
Diagram Reference: 23
Oil feed pump assembly
Diagram Reference: 25
Ieux
Diagram Reference: 25
Grommet
Diagram Reference: 25
Pipe 10
Diagram Reference: 27
Hose (l8000)
Diagram Reference: 29
Oil Level Gauge assembly
Diagram Reference: 31
Wire, lead
Diagram Reference: 32
item_description
Diagram Reference: 33
Damper
Diagram Reference: 35
Bolt, hexagon
Diagram Reference: 36
Washer, plain (646)
Diagram Reference: 37
Clamp
Diagram Reference: 39
Tool kit
Diagram Reference: 40
