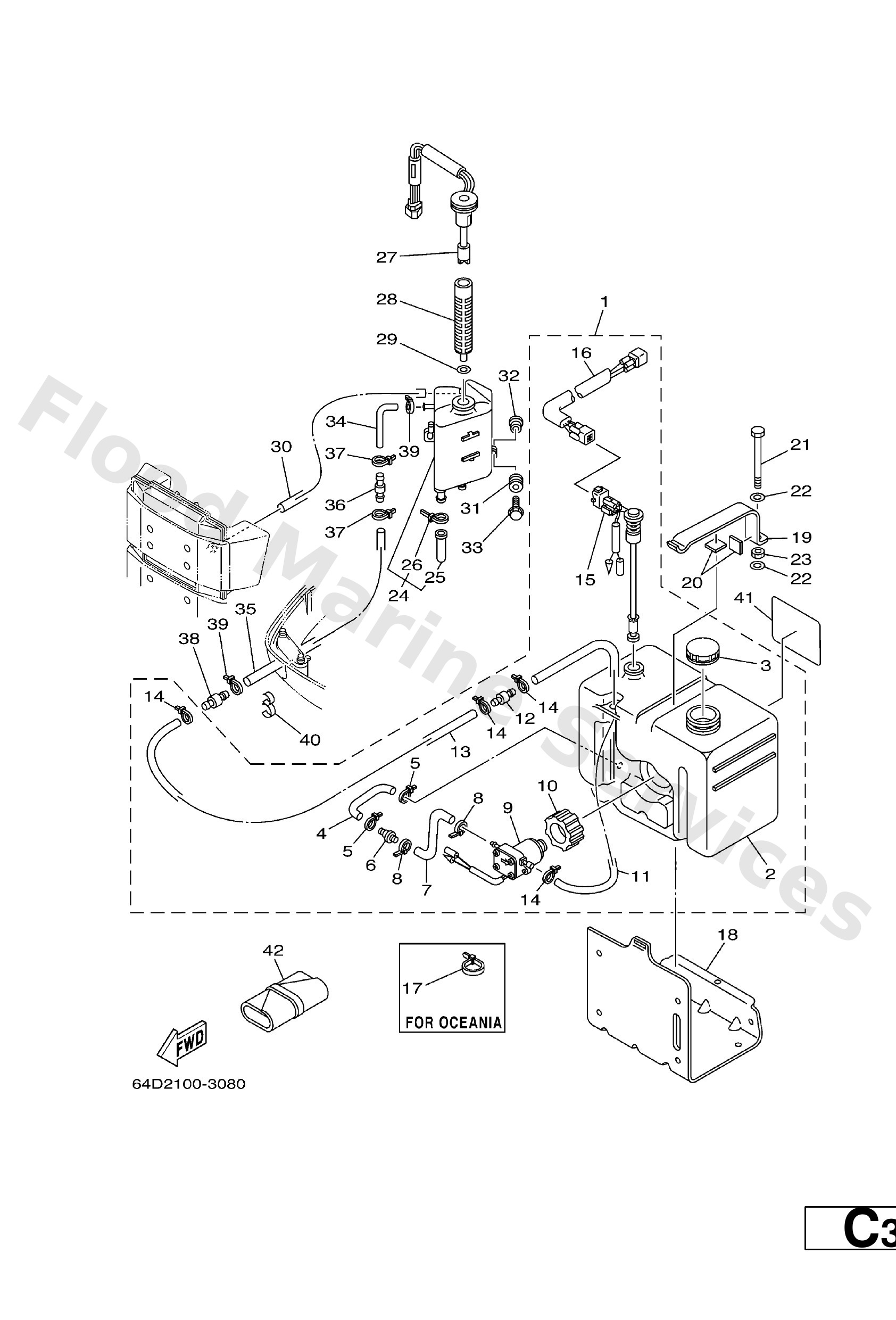

Diagram: OIL TANK

Diagram

Parts List

61A−21708−20 (FOR OCEANIA)

Sub oil tank assembly.

Diagram Reference: 1

6E5−21708−10 (FOR CARIB,BRAZIL)

Sub oil tank assembly

Diagram Reference: 1

6K1−21708−10 (FOR CARIB)

Sub oil tank assembly.

Diagram Reference: 1

6E5−21733−20

Sub tank, oil (10.5l)

Diagram Reference: 2

6E5−21770−03

Oil tank cap assembly

Diagram Reference: 3

6E5−24322−00

Pipe 11

Diagram Reference: 4

90465−11M10

Clamp

Diagram Reference: 5

646−24251−02

Strainer 1

Diagram Reference: 6

6E5−24319−01

Pipe, oil

Diagram Reference: 7

6E5−81900−01

Oil feed pump assembly

Diagram Reference: 9

6E5−81922−00

Grommet

Diagram Reference: 10

6E5−24321−01

Pipe 10

Diagram Reference: 11

6E5−24379−00

Pipe, joint 4

Diagram Reference: 12

90445−11M81 (FOR 6E5−21708−10)

Hose (l3000)

Diagram Reference: 13

90445−11M26 (FOR 61A−21708−20)

Hose (l8000)

Diagram Reference: 13

90445−11M00 (FOR 6K1−21708−10)

Hose (l8000)

Diagram Reference: 13

6E5−85720−04

Oil level gauge assembly

Diagram Reference: 15

6R3−85721−30 (FOR 6E5−21708−10)

Wire, lead

Diagram Reference: 16

6R3−85721−80

Wire, lead

Diagram Reference: 16

90465−13M11 (FOR OCEANIA)

Clamp (6e5)

Diagram Reference: 17

6E5−21734−01−33

Holder, oil sub tank

Diagram Reference: 18

6E5−21798−01−33

Bracket, damper

Diagram Reference: 19

6E5−21746−00

Damper

Diagram Reference: 20

97080−06100

Bolt, hexagon

Diagram Reference: 21

92990−06600

Washer, plain (646)

Diagram Reference: 22

95380−06600

Nut(661)

Diagram Reference: 23

6E5−21750−05

Oil tank assembly

Diagram Reference: 24

6E5−13448−00

Cap, oil tank

Diagram Reference: 25

6R3−85730−03

Oil level gauge assembly

Diagram Reference: 27

6E5−13411−00

Strainer, oil

Diagram Reference: 28

6E5−13414−00

Gasket, strainer cover

Diagram Reference: 29

90445−05M02

Hose (l700)

Diagram Reference: 30

6A0−82317−00

Damper, ignition coil

Diagram Reference: 31

624−42542−00

Collar

Diagram Reference: 32

90119−06M65

Bolt, with washer

Diagram Reference: 33

64E−24323−00

Pipe 12

Diagram Reference: 34

90445−12207 (FOR USA,OCEANIA)

Hose (l3000)

Diagram Reference: 35

90445−12M13 (FOR CARIB,BRAZIL)

Hose (L880)

Diagram Reference: 35

90464−13M34

Clamp(6r3)

Diagram Reference: 40

6E5−13437−43 (FOR USA,OCEANIA)

Mark, Caution

Diagram Reference: 41

6E5−13437−62 (FOR CARIB,BRAZIL)

Mark, Caution

Diagram Reference: 41

656−W2810−02 (FOR CARIB,BRAZIL)

Tool kit

Diagram Reference: 42
