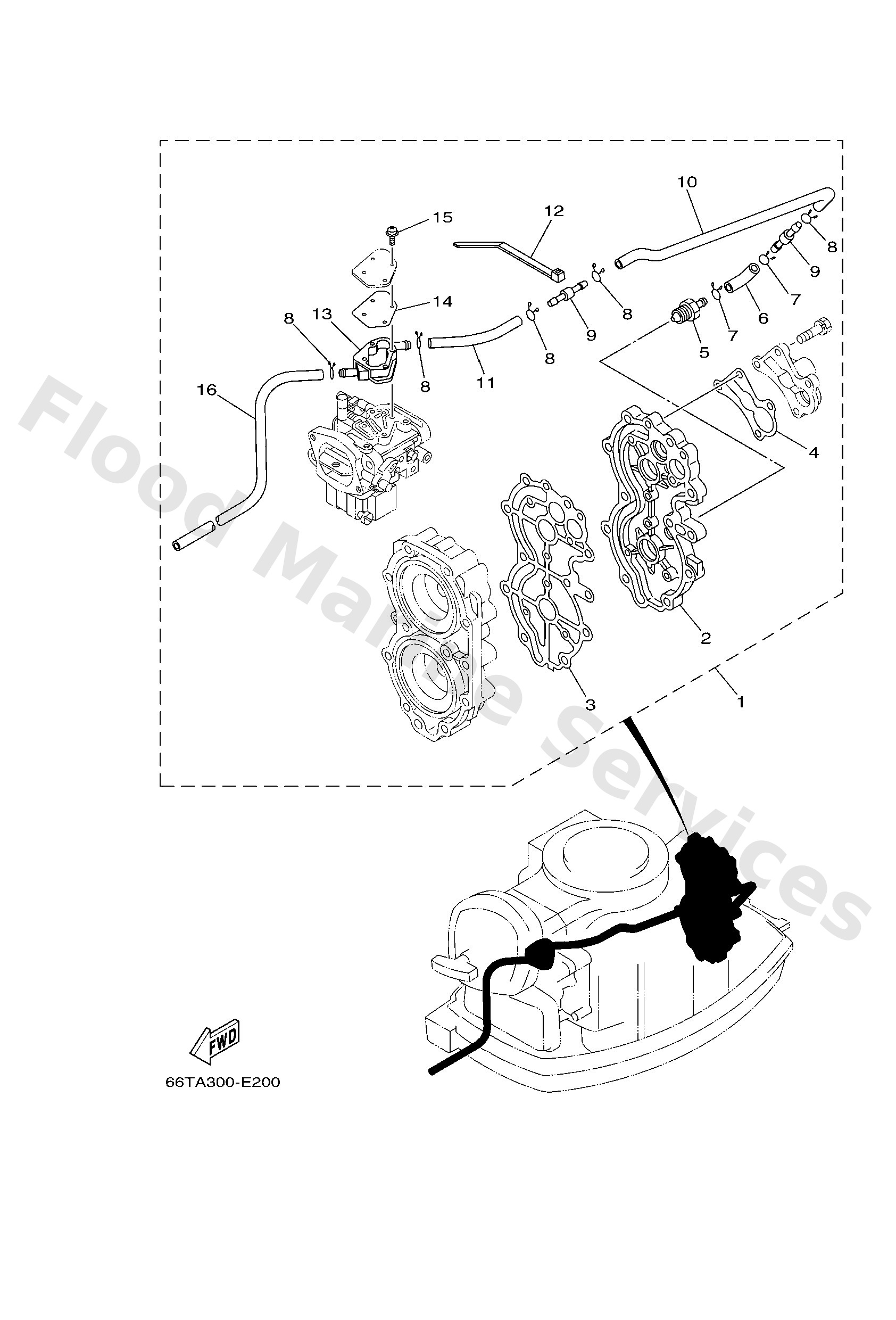

Diagram: OPTIONAL PARTS
Parts List
Cover, cylinder head 1
Diagram Reference: 2
Gasket, head cover 1
Diagram Reference: 3
Gasket, cover
Diagram Reference: 4
Joint 1
Diagram Reference: 5
Pipe 5
Diagram Reference: 6
Clip(72x)
Diagram Reference: 7
Clip, pipe 1 (6e9)
Diagram Reference: 8
Pipe, joint 4
Diagram Reference: 9
Pipe 1
Diagram Reference: 10
Pipe 2
Diagram Reference: 11
Clamp(6h4)
Diagram Reference: 12
Exchanger, heat
Diagram Reference: 13
Gasket
Diagram Reference: 14
Screw, with washer
Diagram Reference: 15
Hose (l1000)
Diagram Reference: 16
