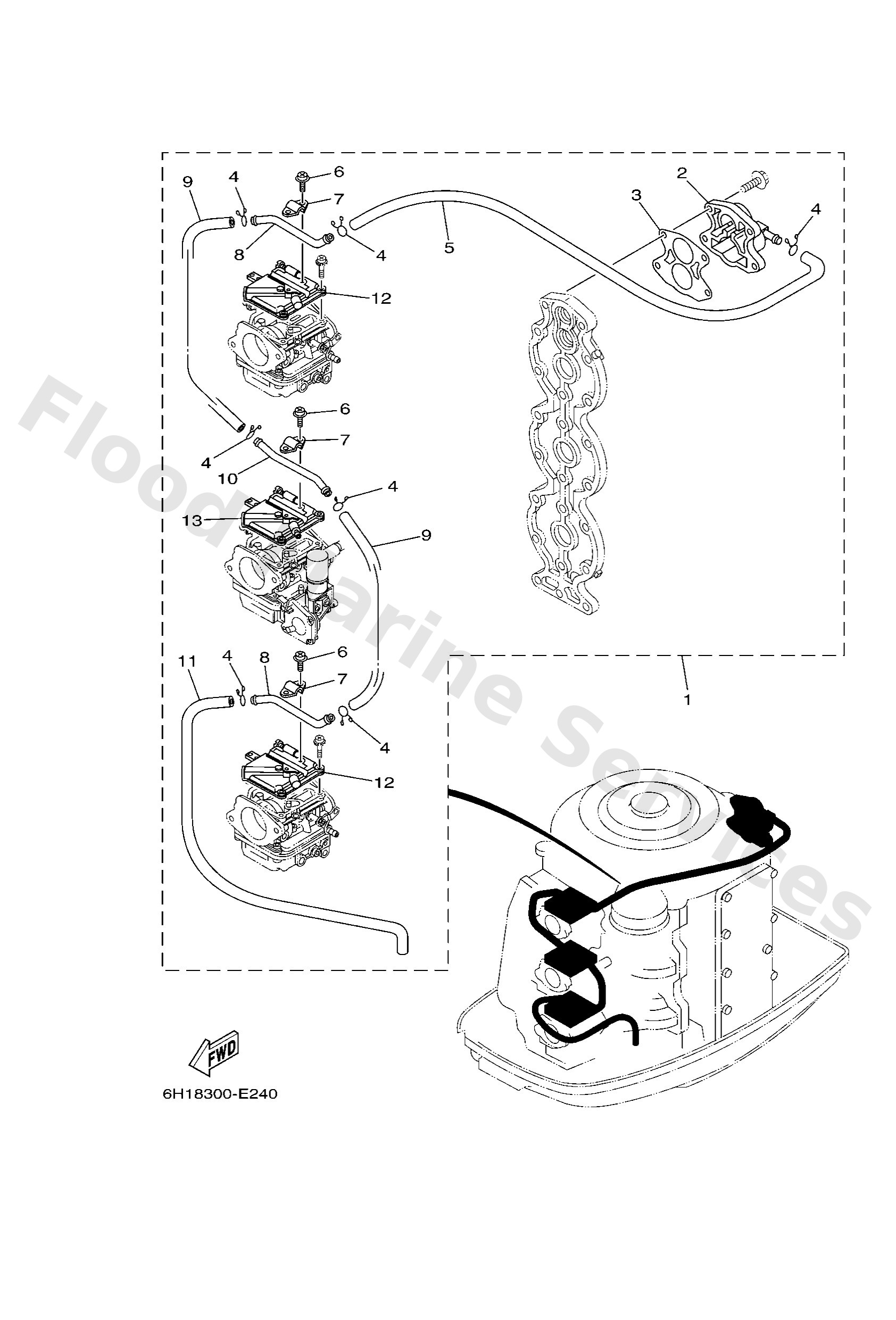

Diagram: OPTIONAL PARTS
Parts List
Heat exchanger assembly
Diagram Reference: 1
Cover, thermostat
Diagram Reference: 2
Gasket, cover
Diagram Reference: 3
Clip, pipe 1 (6e9)
Diagram Reference: 4
Pipe 1
Diagram Reference: 5
Screw, pan head (7h3)
Diagram Reference: 6
Stay
Diagram Reference: 7
Exchanger, heat
Diagram Reference: 8
Pipe
Diagram Reference: 9
Exchanger, heat
Diagram Reference: 10
Pipe 1
Diagram Reference: 11
Plate
Diagram Reference: 12
Plate
